Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12160-01i198107-198512

BLACK,IKI,BLACK,TRIM2#

main87810-12160-02i198107-198308

TERRACOTTA,RED/MAROON,TRIM3#

main87810-12160-12i198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main87810-12160-14i198107-198512

BLUE,IKI,BLUE,TRIM8#

main87810-12160-16i198107-198507

DARK BROWN,IKI,BROWN,TRIM4#

main87810-14150-01i198107-198512

BLACK,MURAKAMI,BLACK,TRIM2#

main87810-14150-04i198107-198512

BLUE,MURAKAMI,BLUE,TRIM8#

main87810-14150-06i198107-198507

DARK BROWN,MURAKAMI,BROWN,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198107-198512

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-08i198107-198408

IVORY,IVORY,TRIM2#,3#,4#

main87834-20080-14i198107-198512

BLUE,BLUE,TRIM8#

main87834-20080-33i198408-198512

GRAY,GRAY,TRIM2#

main87834-20080-45i198408-198512

BEIGE,BEIGE,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-16030i198308-198408

DOOR

main87908-20040i198408-198507

DOOR

main87931-20540i198408-198512

DOOR,*RCM

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-14060i198308-198408

DOOR

main87909-20040i198408-198507

DOOR

main87961-20580i198408-198512

DOOR,*RCM

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-14080i198308-198408

DOOR

main87908-14130i198408-198512

DOOR

main87908-20020i198107-198308

FENDER

main87908-20030i198308-198512

FENDER

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-14090i198308-198408

DOOR

main87909-14140i198408-198512

DOOR

main87909-20020i198107-198308

FENDER

main87909-20030i198308-198512

FENDER

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-19715i198107-198308

*RCM

main87910-19735i198107-198308

*RCM

main87910-19845i198107-198308

main87910-80051i198308-198507

FENDER

main87910-80071i198308-198408

DOOR

main87910-80072i198308-198408

DOOR,*RCM

main87910-80077i198308-198507

FENDER,*RCM

main87910-80078i198308-198512

FENDER,*RCM

main87910-80152i198408-198507

DOOR

main87910-80153i198408-198512

DOOR,*RCM

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-14190i198107-198507

main87911-14200i198107-198507

*RCM

main87911-14210i198107-198512

*RCM

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-19725i198107-198308

*RCM

main87940-19745i198107-198308

*RCM

main87940-19865i198107-198308

main87940-80052i198308-198507

FENDER

main87940-80071i198308-198408

DOOR

main87940-80072i198308-198408

DOOR,*RCM

main87940-80077i198308-198507

FENDER,*RCM

main87940-80078i198308-198512

FENDER,*RCM

main87940-80153i198408-198507

DOOR

main87940-80154i198408-198512

DOOR,*RCM

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-14200i198107-198507

main87941-14210i198107-198507

*RCM

main87941-14220i198107-198512

*RCM

9015950129

main90159-50129

9017905095

main90179-05095

9331915016

main93319-15016

9411040600

main94110-40600

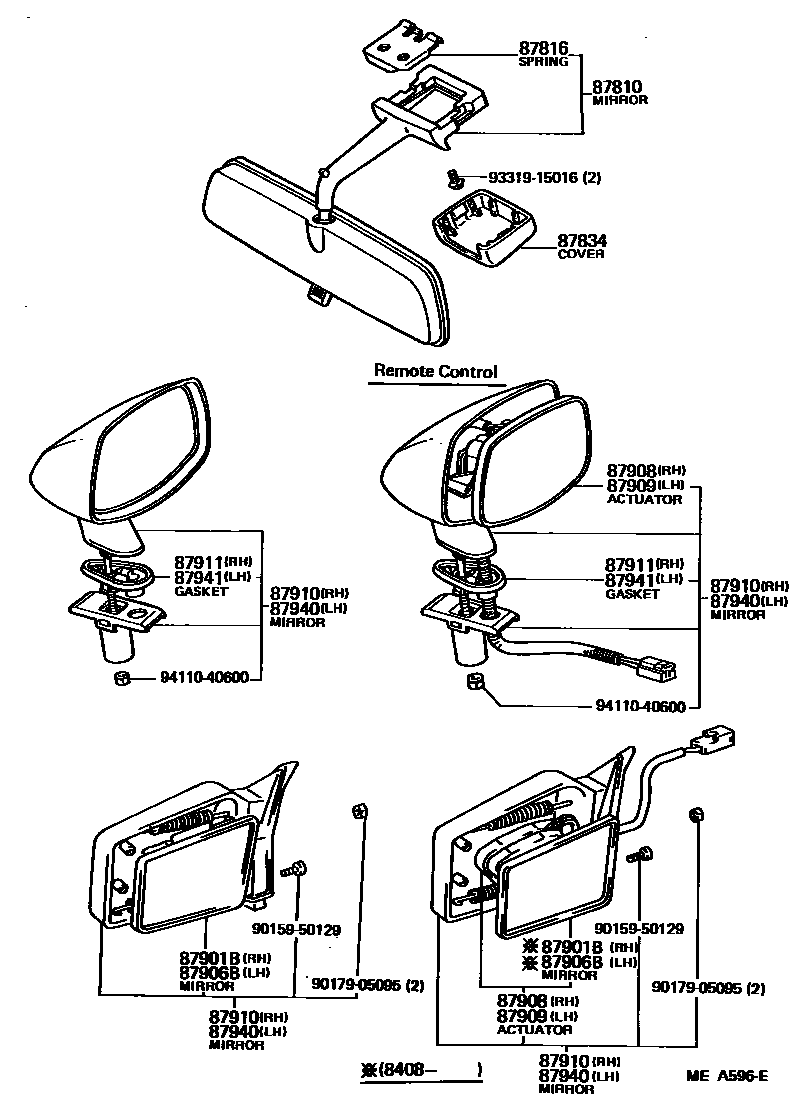

15 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELICA

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
