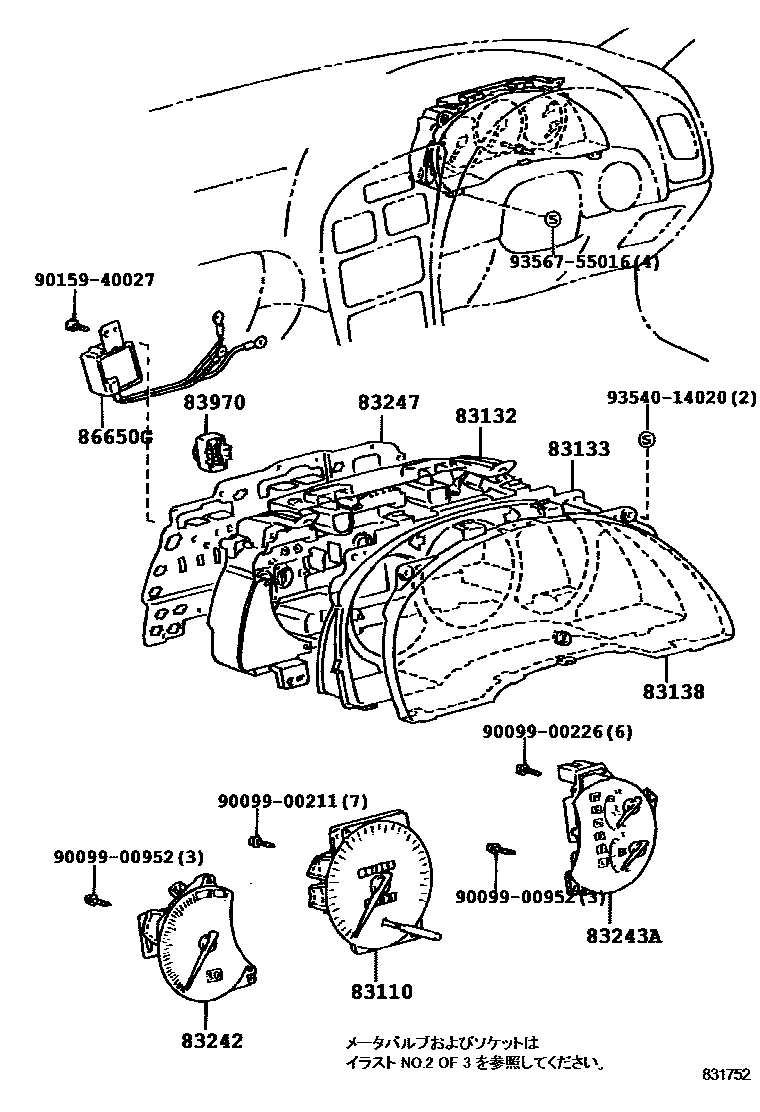

Toyota CELICA — METER

0001 1ATM 0002 1MTM 0003 1����� & ���� (ATM) 0004 1����� & ����(MTM) 0005 1

83110SPEEDOMETER ASSY

main83110-2D490iST20#..MTM199309-199712

main83110-2D580iST202..ATM..SS1199712

main83220-20070iST202..MTM..SS3199508-199511

main83220-20080iST202..ATM..SS3199508-199511

main83220-20120iST202..MTM..SS1199704-199711

main83220-20130iST202..ATM..SS1199704-199711

main83220-20140iST202..MTM..(SS2,SS3)199712

main83220-20150iST202..ATM..(CV,SS2,SS3)199712

83132CASE, COMBINATION METER

main83132-2D010iST202,203199309-199508

main83132-2D011iST202,203199512

main83132-2D130iST205199402-199508

main83132-2D131iST205199508

83133PLATE, COMBINATION METER, NO.1

main83133-20690iST20#199309

main83811-20310iST202..SS3199508-199511

83138GLASS, SPEEDOMETER

main83138-2B370iST20#199309

83242TACHOMETER ASSY, ENGINE

main83242-20650iST202..SS1199309-199606

main83242-20670iST203199309-199606

main83242-20690iST202..CV,SS2,SS3199309-199712

main83242-20710iST205199402

main83242-20850iST202..SS1199606

main83242-20870iST203199606-199712

main83881-20030iST202..SS1199704-199711

main83881-20310iST202..SS3199508-199511

main83881-20520iST202..CV,SS2,SS3199712

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20650iST202..MTM..SS1199712

main83243-20670iST202,203..ATM199309-199712

main83243-20690iST205199402

main83882-20030iST202..MTM..SS1199704-199711

main83882-20310iST202..MTM..SS3199508-199511

main83882-20320iST202..ATM..SS3199508-199511

main83882-20510iST202..ATM..SS1199704-199711

main83882-20520iST202..MTM..(SS2,SS3)199712

main83882-20530iST202..ATM..(CV,SS2,SS3)199712

83247PLATE, METER CIRCUIT

main83247-2D010iST202..MTM..SS3199508-199511

main83247-2D011iST202,203..MTM199512-199712

main83247-2D030iST202,203..ATM199309-199508

main83247-2D031iST202,203..ATM199512-199712

main83247-2D110iST205199402-199508

main83247-2D111iST205199508-199712

main83861-20520iST202..MTM..(SS2,SS3)199712

main83861-20530iST202..ATM..(CV,SS2,SS3)199712

main83861-20720iST205199712

main83861-20860iST202..MTM..SS1199712

main83861-20870iST202..ATM..SS1199712

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iST202,203..ATM199309

86650GBUZZER ASSY

main86650-20030iST20#199309

9009900211

main90099-00211

9009900226

main90099-00226

9009900952

main90099-00952

9015940027

main90159-40027

9354014020

main93540-14020

9356755016

main93567-55016

15 parts on this diagram · 5 diagrams in section
