Toyota CELICA — METER

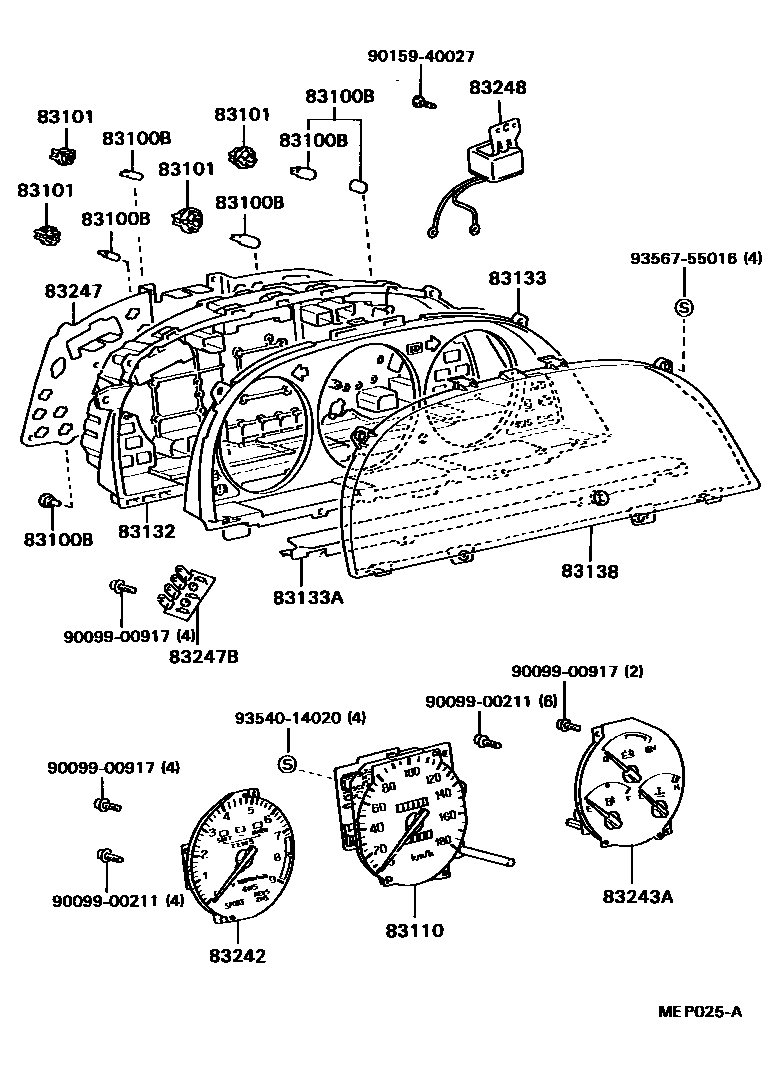

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83101-20080i198909-199109

main83101-20080i199108-199309

main83109-24010i198909-199309

main83109-24020i199108-199309

main83109-24020i198909-199109

main83109-30070i199108-199309

main83119-32010i199108-199309

main90981-11018i198909-199109

main90981-11018i199108-199309

main99132-12034i199109-199309

main99132-12034i198909-199109

main99132-12034i199108-199109

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030i198909-199309

BULB:3.0W OR 3.4W

main83101-14040i198909-199309

BULB:1.2W OR 1.4W

main83101-30050i199108-199309

BULB:1.4W

main83101-32020i199108-199309

BULB:1.4W

83110SPEEDOMETER ASSY

main83110-2B880i198909-199109

main83110-2B881i199108-199309

83132CASE, COMBINATION METER

main83132-1B280i198909-199108

main83132-1B300i199009-199109

main83132-1B320i198909-199108

main83132-1J080i199108-199309

main83132-1J100i199109-199309

83133PLATE, COMBINATION METER, NO.1

main83133-1D010i198909-199309

83133APLATE, COMBINATION METER, NO.2

main83133-1D030i198909-199309

83138GLASS, SPEEDOMETER

main83138-1B250i198909-199309

83242TACHOMETER ASSY, ENGINE

main83242-15570i198909-199108

main83242-15590i198909-199108

main83242-15610i198909-199108

main83242-15650i198909-199108

main83242-15690i198909-199109

main83242-15710i198909-199108

main83242-15730i199004-199108

main83242-1J690i199108-199309

main83242-1J710i199108-199309

main83242-1J730i199108-199309

main83242-1J750i199108-199309

main83242-1J770i199108-199309

main83242-1J790i199108-199309

main83242-1J810i199108-199309

main83242-1J830i199108-199309

main83242-1J870i199108-199309

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1B150i198909-199109

main83243-1B170i198910-199108

main83243-1B370i199108-199309

main83243-1B390i199108-199309

main83243-1B410i199108-199309

83247PLATE, METER CIRCUIT

main83247-15510i199108-199309

main83247-15530i199108-199309

main83247-1B480i198909-199108

main83247-1B500i199009-199109

main83247-1B520i198910-199108

83247BPLATE, METER CIRCUIT, NO.2

main83247-1B400i198910-199309

83248CHIME, SPEED WARNING

main86640-20190i198909-199109

main86650-20020i199108-199309

9009900211

main90099-00211

9009900917

main90099-00917

9015940027

main90159-40027

9354014020

main93540-14020

9356755016

main93567-55016

17 parts on this diagram · 3 diagrams in section

METER for Toyota CELICA

This section contains 23 genuine Toyota parts for the METER system of the Toyota CELICA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
