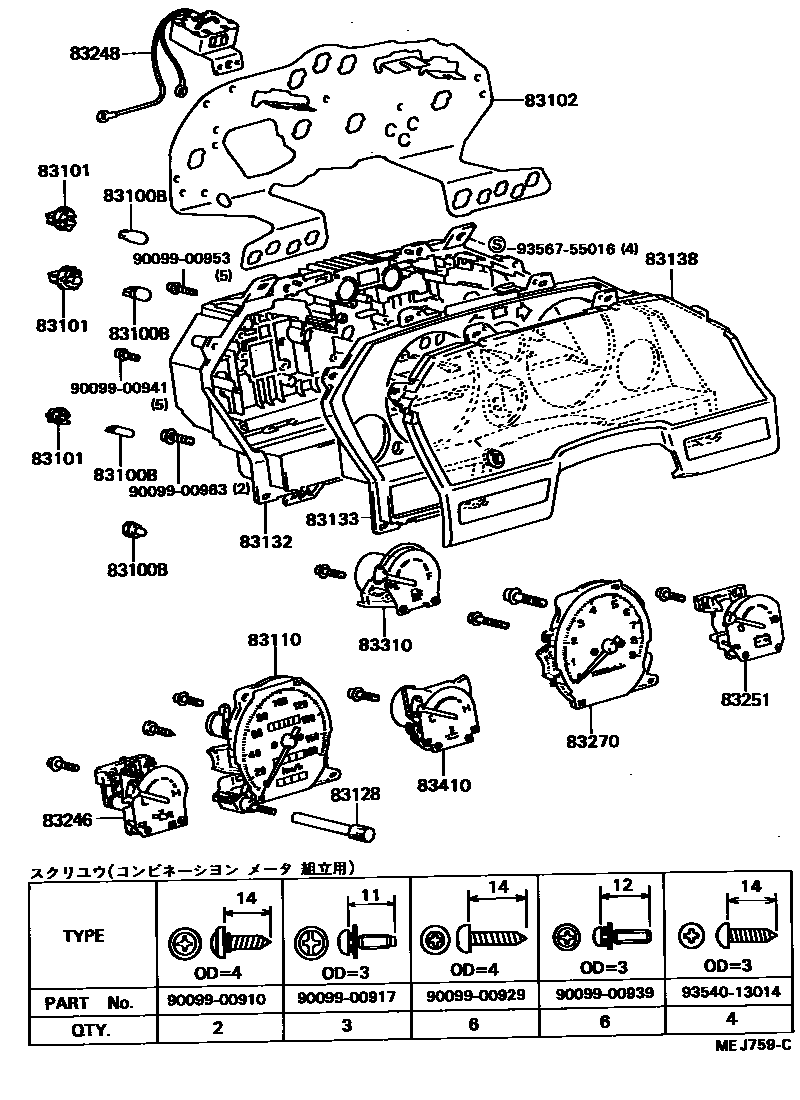

Toyota CELICA — METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080×2iST160,163..ST198708-198908

main83109-24020×4iST16#198708-198908

main83109-24030iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main83109-24040×2iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main90981-11018×6iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main90981-11038×4iST160,162,163..GT,SX,ZR198708-198908

main99132-12034×8iST162..4FC;ST162..CV..5F;ST162..5F..GT;ST160,163,165..GT4,ST198708-198908

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main83101-14030×8iST16#198708-198908

BULB:12V 3.4W

main83101-14040×8iST162..4FC..GT;ST162,163..SX,ZR198805-198908

main83101-20080×3iST162..4FC..ZR198805-198908

main83101-20090×4iST160,162,163..GT,SX,ZR198708-198908

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D200iST160,163..ST198708-198908

main83247-1D220iST160..SX;ST162..5F..ZR198708-198805

main83247-1D240iST162..4FC..ZR198708-198805

main83247-1D340iST162..CV..5F198710-198908

main83247-1D360iST162..CV..4FC198710-198908

main83247-1D620iST163..SX;ST162..5F..ZR198805-198908

main83247-1D770iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main83247-1J740iST162..5F..GT198708-198908

main83247-1J760iST162..4FC..GT198708-198805

main83247-1J780iST162..LB..5F198805-198908

main83247-1J800iST162..4FC..GT198708-198805

main83247-1J840iST165198710-198908

83110SPEEDOMETER ASSY

main83110-2B400iST16#..GT,GT4,SX,ZR198708-198908

main83110-2B610iST160,163..ST198708-198908

main83110-2D100iST162..LB198805-198908

83128KNOB, TRIP COUNTER

main83128-14650iST16#198708-198908

83132CASE, COMBINATION METER

main83132-1B020iST163..SX;ST162..5F..ZR198805-198908

main83132-1D110iST160,163..4FC..SX198708-198908

main83132-1D360iST162..5F..ZR198805-198908

main83132-1D560iST162..LB..4FC198805-198908

main83132-1D640iST162..CV..5F198710-198908

main83132-1D660iST162..CV..4FC198710-198908

main83132-1D830iST162..4FC..GT;ST160,162,163..5F..(GT,SX,ZR)198708-198908

main83132-1J010iST160,163..ST198708-198908

main83132-1J030iST160..SX;ST162..5F..ZR198708-198805

main83132-1J070iST162..4FC..ZR198708-198805

83133PLATE, COMBINATION METER, NO.1

main83133-1B290iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main83133-1B470iST16#198708-198908

83138GLASS, SPEEDOMETER

main83138-1B010iST160,163..SX;ST162..LB..5F;ST162..4FC..GT198708-198908

main83138-1B130iST16#198708-198908

83246GAUGE, OIL PRESSURE RECEIVER

main83246-14650iST16#..GT,GT4,SX,ZR198708-198908

83248CHIME, SPEED WARNING

main86640-20090iST16#198708-198908

main86640-20120iST160,162,163..GT,SX,ZR198708-198908

83251METER, VOLTAGE

main83251-14630iST16#..GT,GT4,SX,ZR198708-198908

83270TACHOMETER ASSY, ENGINE

main83242-1B010iST160,163;ST162..5F..ZR198708-198908

main83242-1B070iST162..5F..GT198708-198908

main83242-1B090iST162..4FC..GT198708-198908

main83242-1D010iST165198710-198908

main83242-1D070iST162..4FC..ZR198708-198908

main83242-1D090iST162..5F..GT198708-198908

main83242-1D110iST162..4FC..GT198708-198908

main83242-1D310iST162..5F..ZR198805-198908

main83242-1D330iST162..4FC..ZR198805-198908

83310GAGE ASSY, FUEL RECEIVER

main83243-14710iST16#198708-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B290iST16#198708-198908

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

9356755016

main93567-55016

23 parts on this diagram · 4 diagrams in section
