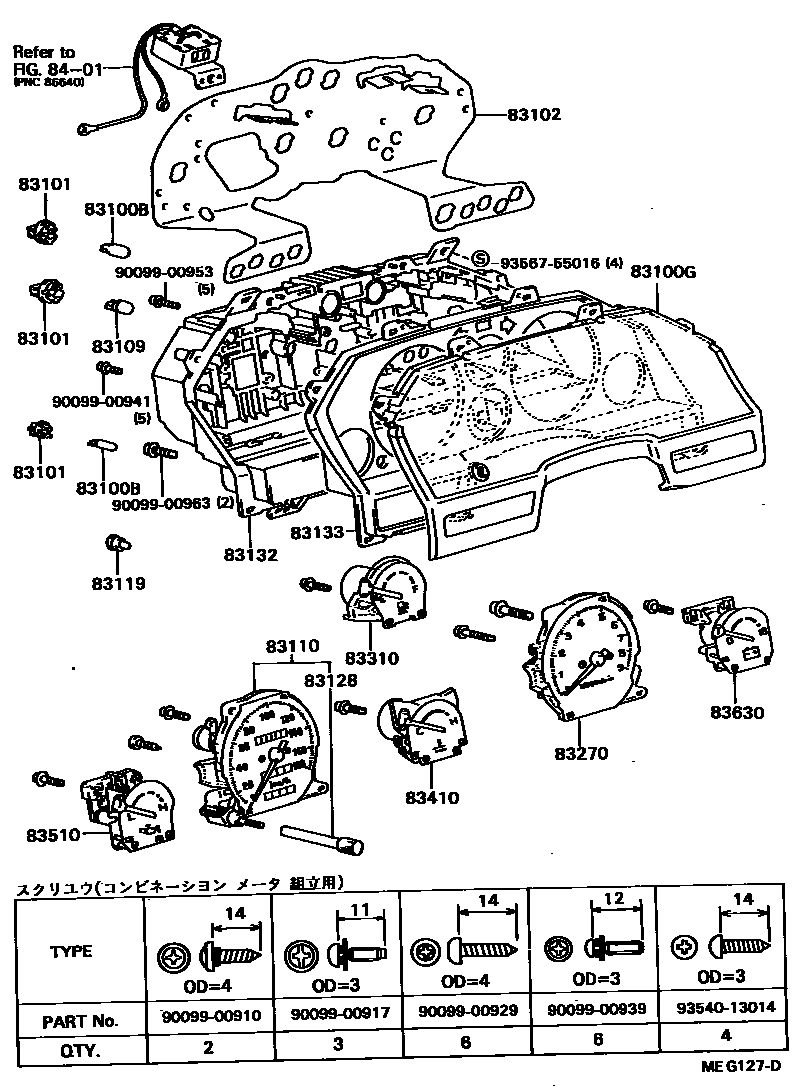

Toyota CELICA — METER
83100BBULB, COMBINATION METER, NO.1
83100GGLASS, COMBINATION METER
W/*DS
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB;12V 3.4W,W/*DS
BULB;12V 3.4W
BULB;12V 1.4W
BULB; 12V 5W,W/*DS
BULB;12V 3.4W,W/GREEN CAP
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
W/*DS
83109BULB, COMBINATION METER, NO.2
83110SPEEDOMETER ASSY
83119BULB, COMBINATION METER, NO.3
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
W/*DS
W/*DS
83133PLATE, COMBINATION METER, NO.1
W/*DS
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83510GAGE ASSY, OIL PRESSURE RECEIVER
83630VOLTMETER ASSY
8401SWITCH & RELAY & COMPUTER
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9009900941
main90099-00941
9009900953
main90099-00953
9009900963
main90099-00963
9354013014
main93540-13014
9356755016
main93567-55016
25 parts on this diagram · 3 diagrams in section
METER for Toyota CELICA
This section contains 42 genuine Toyota parts for the METER system of the Toyota CELICA. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
