Toyota CELICA — METER

0001 1 0002 1 0003 1

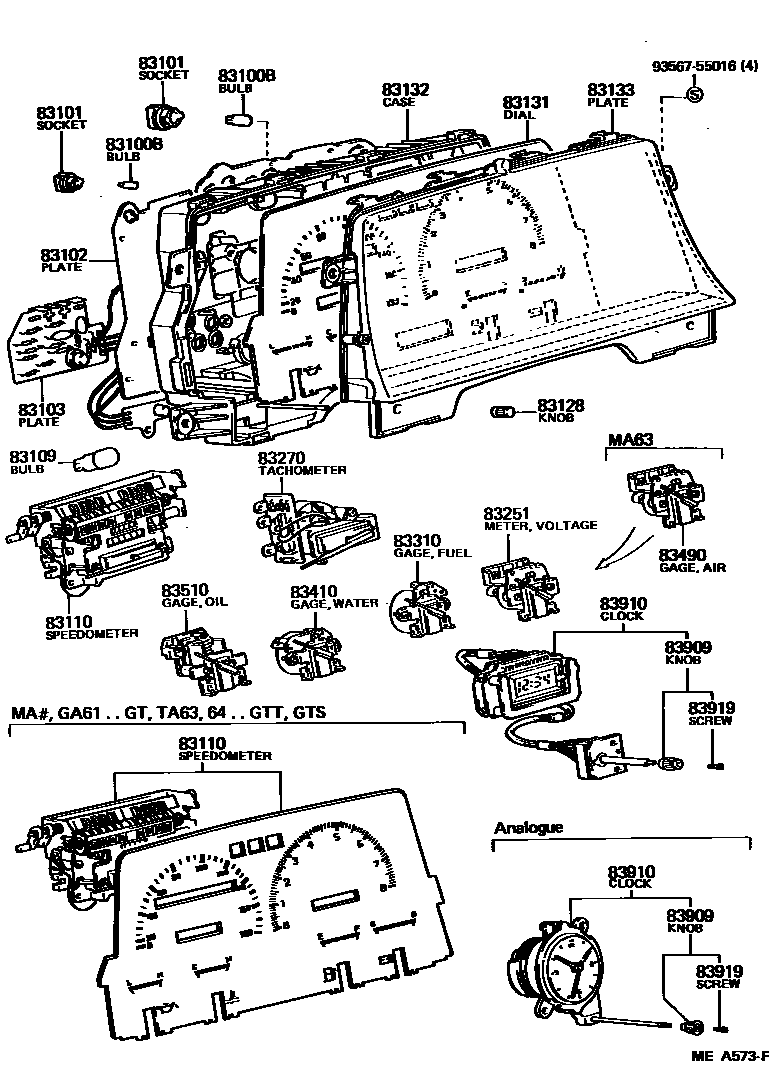

83100BBULB, COMBINATION METER, NO.1

main90981-11018×12iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main99132-12034×14iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020×2iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198512

12V 3.4W,LONG

main83101-14030×14iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

12V 3.4W

main83101-14040×12iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-14610iSA60,TA61,63..GTR,ST,SV198107-198305

main83247-14611iSA60,TA61..GTR,ST,SV198305-198308

main83247-14630iRA63,TA61,63..GT,SX198107-198305

main83247-14631iTA61,63..GT,SX198305-198308

main83247-14650iMA63198202-198305

main83247-14651iMA63198305-198308

main83247-1B230iGA61,MA61,RA63,TA6#..G,GT,SX198107-198108

W/DIGITAL SPEEDOMETER

main83247-1B231iGA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198108-198304

W/DIGITAL SPEEDOMETER

main83247-1B232iGA61,MA6#,TA61,63..G,GT,GTT,SX198304-198308

W/DIGITAL SPEEDOMETER

main83247-1B390iTA63,64..GTS,GTT198210-198305

main83247-1B391iTA63,64..GTS,GTT198305-198308

main83247-1B430iGA61..GT198208-198305

main83247-1B431iGA61..GT198305-198308

main83247-1B590iMA61..4FC198308-198512

W/DIGITAL SPEEDOMETER

main83247-1B610iMA61..5F198308-198512

W/DIGITAL SPEEDOMETER

main83247-1B690iSA60..ST,SV198308-198507

main83247-1B710iGA61..G,S;AA63,SA60..GT,SX198308-198512

main83247-1B730iGA61..GT198308-198512

main83247-1B750iMA63,TA63198308-198512

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1B470iTA63,64..GTS,GTT198210-198507

main83247-1D250iMA63198308-198512

83109BULB, COMBINATION METER, NO.2

main83109-24010iGA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198308

main83109-24020×4iGA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198308

83110SPEEDOMETER ASSY

main83110-14330iGA61..G,L,S198107-198512

main83110-14600iSA60,TA63..ST,SV198107-198507

main83110-14610iGA61,MA6#,RA63,TA6#..G,GT,SX198107-198210

W/DIGITAL SPEEDOMETER

main83110-14670iMA63198202-198308

main83110-14690iTA63,64..GTS,GTT198210-198507

main83110-14700iGA61..GT198208-198308

main83110-14701iGA61..GT198308-198512

main83110-14760iAA63,GA61,MA61,TA63..G,GT,GTT198308-198512

W/DIGITAL SPEEDOMETER

main83110-14770iMA63..G198308-198512

W/DIGITAL SPEEDOMETER

main83110-1B030iMA63198308-198512

main83110-32080iGA61,MA6#,TA61,63..G,GT,GTT,SX198210-198308

W/DIGITAL SPEEDOMETER

main83241-14650iAA63198308-198507

83128KNOB, TRIP COUNTER

main83128-10260iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198512

W/DIGITAL SPEEDOMETER

main83128-14510iAA63,GA61,MA63,RA63,SA60,TA6#198107-198512

83131DIAL, METER, NO.1

main83131-14110iSA60..SV198107-198308

main83131-14130iSA60,TA63..ST198107-198308

main83131-14150iTA63..SX198107-198507

main83131-14170iTA61..GTR198107-198308

main83131-14190iRA63,TA61..GT198107-198308

main83131-14210iGA61..G,L,S198107-198308

main83131-1B370iTA63..SX198107-198308

W/DIGITAL SPEEDOMETER

main83131-1B390iMA61,RA63,TA61..GT198107-198308

W/DIGITAL SPEEDOMETER

main83131-1B430iGA61..G198107-198308

W/DIGITAL SPEEDOMETER

main83131-1B510iMA63..G198202-198308

W/DIGITAL SPEEDOMETER

main83131-1B570iTA63..GTT198210-198308

W/DIGITAL SPEEDOMETER

main83131-1B650iGA61..GT198208-198308

W/DIGITAL SPEEDOMETER

main83131-1D410iSA60..SV198308-198507

main83131-1D430iSA60..ST198308-198507

main83131-1D450iSA60..SX198308-198507

main83131-1D470iAA63198308-198507

main83131-1D490iGA61..G,S198308-198512

main83131-1D580iMA61..4FC198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D600iMA61..5F198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D620iMA63..G198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D640iGA61..G198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D660iTA63198308-198507

W/DIGITAL SPEEDOMETER

main83131-1D680iAA63,GA61..GT198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D700iSA60..SX198308-198507

W/DIGITAL SPEEDOMETER

83132CASE, COMBINATION METER

main83132-14510iSA60..SV198107-198308

main83132-14530iSA60,TA61,63..GTR,ST198107-198308

main83132-14550iRA63,TA61,63..GT,SX198107-198308

main83132-1B090iGA61,MA61,RA63,TA6#..G,GT,SX198107-198108

W/DIGITAL SPEEDOMETER

main83132-1B091iGA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198108-198304

W/DIGITAL SPEEDOMETER

sub83132-1BH90

main83132-1B092iGA61,MA6#,TA61,63..G,GT,GTT,SX198304-198308

W/DIGITAL SPEEDOMETER

main83132-1B190iMA63198202-198308

main83132-1B250iTA63,64..GTS,GTT198210-198308

main83132-1B290iGA61..GT198208-198308

main83132-1B450iMA61..5F198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B470iMA61..4FC198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B650iSA60..SV198308-198507

main83132-1B670iSA60..ST198308-198507

main83132-1B690iSA60..SX198308-198507

main83132-1B710iAA63,GA61198308-198512

main83132-1B730iTA63198308-198507

main83132-1D490iMA63198308-198512

83133PLATE, COMBINATION METER, NO.1

main83133-14510iSA60,TA61,63..GTR,ST198107-198305

main83133-14511iSA60,TA61..GTR,ST198305-198507

main83133-14530iGA61,MA63,RA63,TA6#..G,GT,GTS,GTT,L,S,SX198107-198305

main83133-14531iAA63,GA61,MA63,SA60,TA6#..G,GT,GTS,GTT,L,S,SX198305-198512

main83133-14550iSA60..SV198107-198305

main83133-14551iSA60..SV198305-198507

main83133-14830iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198512

W/DIGITAL SPEEDOMETER

83251METER, VOLTAGE

main83251-14510iGA61,RA63,TA61,63..G,GT,L,S,SX198107-198308

main83251-14550iTA63,64..GTS,GTT198210-198308

main83251-14570iGA61,MA63,SA60..G,GT,S,SX198308-198512

main83251-14590iAA63,TA63198308-198507

83270TACHOMETER ASSY, ENGINE

main83242-14510iRA63,SA60,TA61,63..GT,GTR,ST,SV,SX198107-198507

main83242-14530iGA61,MA63..G,L,S198107-198308

main83242-14650iTA63,64..GTS,GTT198210-198507

main83242-14670iGA61..GT198208-198308

main83242-14710iMA63198308-198512

main83242-14730iAA63198308-198507

main83242-14790iGA61..GT198308-198512

main83270-14060iTA63..SX198107-198507

W/DIGITAL SPEEDOMETER

main83270-14130iRA63,TA61..GT198107-198308

W/DIGITAL SPEEDOMETER

main83270-14140iGA61..G198107-198308

W/DIGITAL SPEEDOMETER

main83270-14150iMA61198107-198308

W/DIGITAL SPEEDOMETER

main83270-14200iMA63..G198202-198210

W/DIGITAL SPEEDOMETER

main83270-14210iMA63..G198210-198308

W/DIGITAL SPEEDOMETER

main83270-14220iGA61..GT198208-198308

W/DIGITAL SPEEDOMETER

main83270-14250iSA60..SX198308-198507

W/DIGITAL SPEEDOMETER

main83270-14260iAA63198308-198507

W/DIGITAL SPEEDOMETER

main83270-14270iTA63198308-198507

W/DIGITAL SPEEDOMETER

main83270-14280iGA61..G198308-198512

W/DIGITAL SPEEDOMETER

main83270-14290iGA61..GT198308-198512

W/DIGITAL SPEEDOMETER

main83270-14300iMA63..G198308-198512

W/DIGITAL SPEEDOMETER

main83270-14310iMA61..5F198308-198512

W/DIGITAL SPEEDOMETER

main83270-14320iMA61..4FC198308-198512

W/DIGITAL SPEEDOMETER

main83270-20120iTA63..GTT198210-198308

W/DIGITAL SPEEDOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-14510iGA61,MA63,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX198107-198512

main83243-14610iAA63,TA63,64..GT,GTS,GTT198210-198507

main83310-14080iGA61,MA6#,RA63,TA6#..G,GT,SX198107-198210

W/DIGITAL SPEEDOMETER

main83310-14081iGA61,MA6#,TA61,63..G,GT,GTT,SX198210-198308

W/DIGITAL SPEEDOMETER

sub83310-14082

main83310-14100iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,SX198308-198408

W/DIGITAL SPEEDOMETER

main83310-14101iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,SX198408-198512

W/DIGITAL SPEEDOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-14510iMA63,TA61,63..G,GT,GTR,S,ST,SX198209-198308

main83244-14530iGA61198107-198308

main83244-14750iTA63,64..GTS,GTT198210-198308

main83244-1B010iGA61,MA63,SA60198308-198408

main83244-1B030iAA63,TA63198308-198507

main83244-1B050iGA61,MA63,SA60198408-198512

83490GAGE ASSY, AIR PRESSURE RECEIVER

main83251-14530iMA63198202-198308

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14510iGA61,MA63,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX198107-198512

main83246-14550iAA63,TA63,64..GT,GTS,GTT198210-198507

83909KNOB, CLOCK

main83909-14012iSA60,TA61,63..GTR,ST198107-198507

main83909-22180iGA61,MA6#,RA63,TA6#..G,GT,GTS,GTT,L,S,SX198107-198512

83910CLOCK ASSY

main83910-14280iSA60,TA61,63..GTR,ST198107-198507

ANALOGUE

main83910-14300iAA63,GA61,MA63,RA63,SA60,TA6#..G,GT,GTS,GTT,L,S,SX198107-198512

main83910-14310iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,SX198107-198512

W/DIGITAL SPEEDOMETER

83919SCREW, CLOCK

main83919-12230iGA61,MA6#,RA63,TA6#..G,GT,GTS,GTT,L,S,SX198107-198512

main83919-14012iSA60,TA61,63..GTR,ST198107-198507

9356755016

main93567-55016
