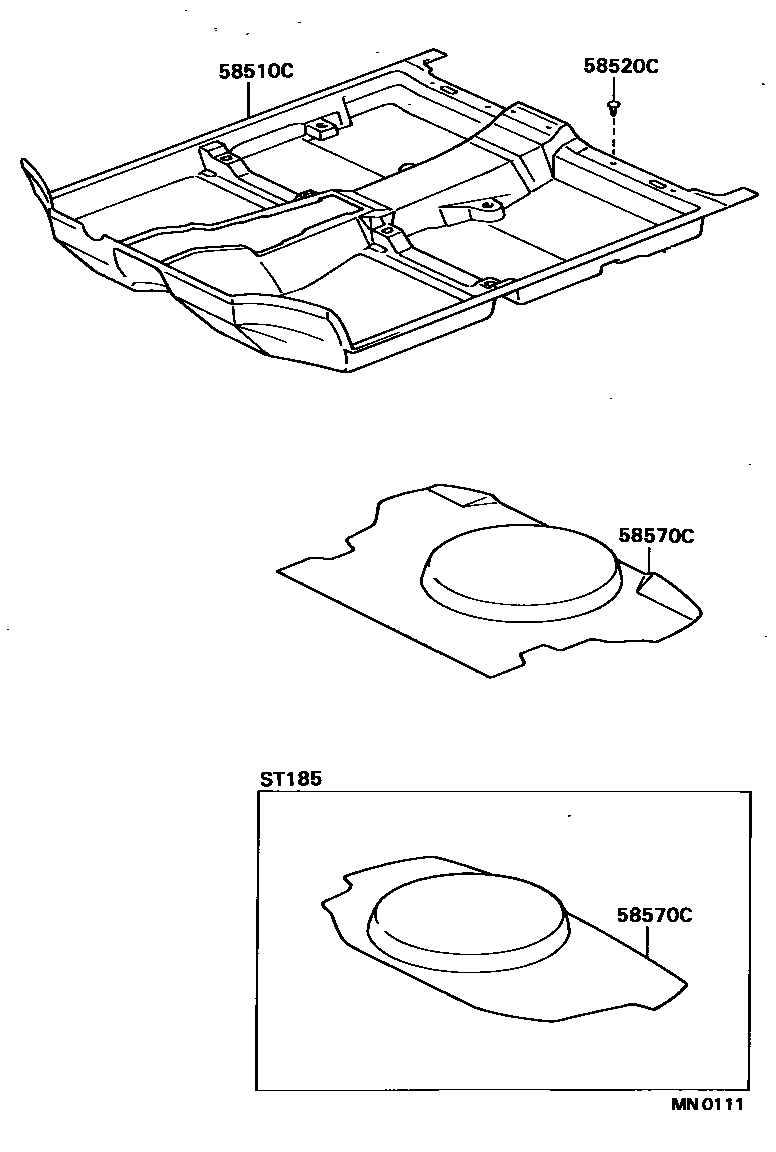

Toyota CELICA — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2D070-03i198910-199004

GT-FOUR RALLY OR GT-FOUR V,SHADOW GRAY,TRIM1#

main58510-2D071-03i199108-199309

GT-FOUR RALLY,SHADOW GRAY,SHADOW GRAY,TRIM1#

main58510-2D120-03i198909-199004

SHADOW GRAY,TRIM1#

main58510-2D120-04i198909-199004

DARK BLUE,TRIM8#

main58510-2D121-03i199004-199309

SHADOW GRAY,TRIM1#

main58510-2D121-04i199004-199108

DARK BLUE,TRIM8#

main58510-2D130-03i198910-199004

SHADOW GRAY,TRIM1#

main58510-2D131-03i199004-199309

SHADOW GRAY,TRIM1#

main58510-2D160-03i198909-199004

SHADOW GRAY,TRIM1#

main58510-2D160-04i198909-199004

DARK BLUE,TRIM8#

main58510-2D161-03i199004-199309

SHADOW GRAY,TRIM1#

main58510-2D161-04i199004-199108

DARK BLUE,TRIM8#

main58510-2D341-03i199009-199309

SHADOW GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-33×6i198909-199108

GRAY,TRIM1#; GRAY,TRIM1#,8#

58570CCARPET ASSY, REAR FLOOR

main58570-20130-03i198909-199309

SHADOW GRAY,TRIM1#

main58570-20130-04i198909-199108

DARK BLUE,TRIM8#

main58570-20140-03i198910-199309

SHADOW GRAY,TRIM1#

main58570-20160-03i199108-199309

main58570-20170-03i199108-199309

3 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 3 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, REAR FLOOR.
