Toyota CELICA — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-20891-01i198708-198908

BLACK,TRIM2#

main58510-20891-04i198708-198908

DEEP BLUE,TRIM8#

main58510-2B191-01i198710-198908

BLACK,TRIM2#

main58510-2B260i198803-198908

main58510-2B260-01i198710-198908

BLACK,TRIM2#

main58510-2B510-01i198708-198805

main58510-2B510-04i198805-198908

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×2i198808-198908

BLACK,TRIM2#

main90467-06016-30×2i198708-198908

BLUE,TRIM8#

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06016-11×8i198708-198908

BLACK,TRIM2#

main90467-06016-30×8i198708-198908

BLUE,TRIM8#

58570CCARPET ASSY, REAR FLOOR

main58570-20060-01i198708-198908

BLACK,TRIM2#

main58570-20060-04i198708-198908

DEEP BLUE,TRIM8#

main58570-20091-01i198710-198908

BLACK,TRIM2#

main58570-20110-01i198710-198908

58583EPLATE, REAR SEATBACK CARPET SUPPORT

main58583-20030-01×2i198708-198908

BLACK,TRIM2#

main58583-20030-04×2i198708-198908

DEEP BLUE,TRIM8#

9353054516

main93530-54516

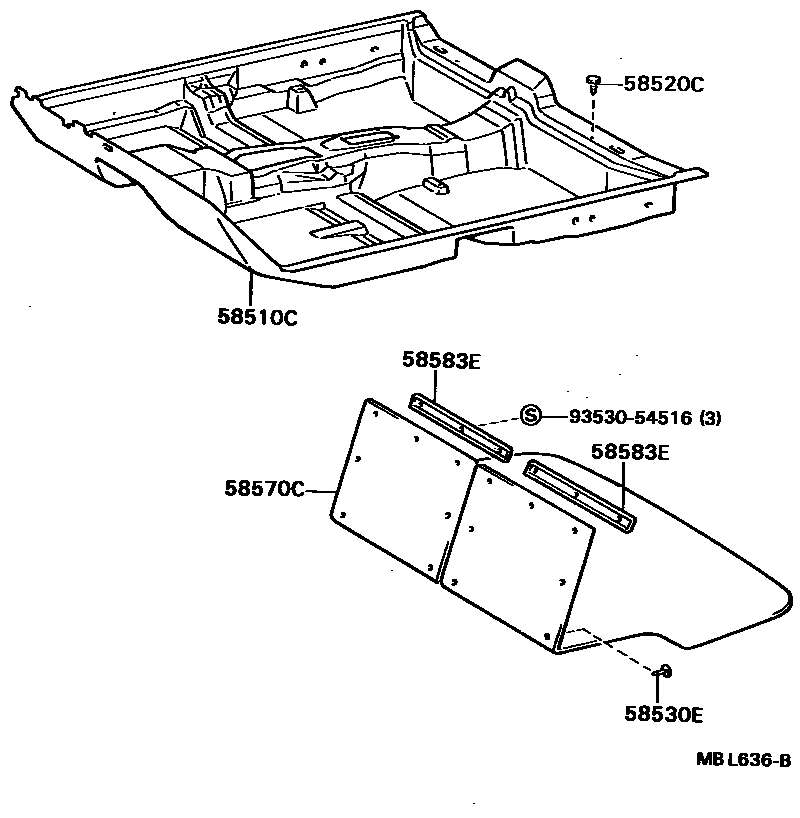

6 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CLIP(FOR FRONT FLOOR REAR CARPET), CARPET ASSY, REAR FLOOR, PLATE, REAR SEATBACK CARPET SUPPORT.
