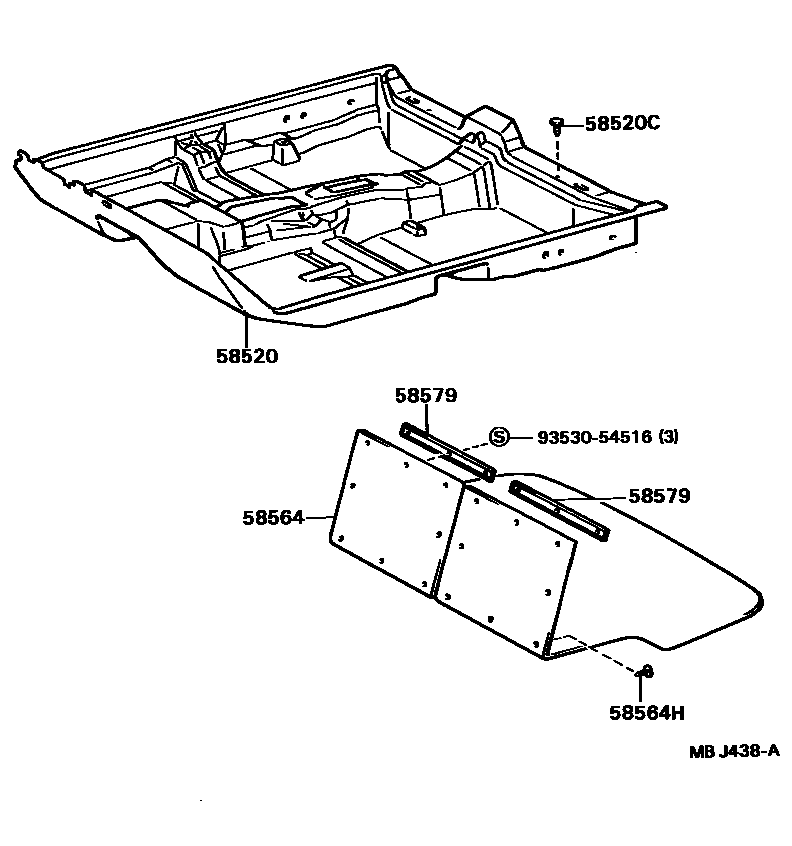

Toyota CELICA — MAT & CARPET
58520CARPET ASSY, FRONT FLOOR
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
GRAY,SHADOW GRAY,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLUE,DEEP BLUE,TRIM8#
GRAY,GRAY,TRIM1#
58564CARPET, REAR FLOOR
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
GRAY,SHADOW GRAY,TRIM1#
58564HCLIP(FOR REAR FLOOR CARPET)
BLUE,DEEP BLUE,TRIM8#
GRAY,GRAY,TRIM1#
58579SET PLATE, REAR FLOOR CARPET, NO.1
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
9353054516
main93530-54516
6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota CELICA
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, CLIP(FOR FRONT FLOOR CARPET), CARPET, REAR FLOOR, CLIP(FOR REAR FLOOR CARPET), SET PLATE, REAR FLOOR CARPET, NO.1.
