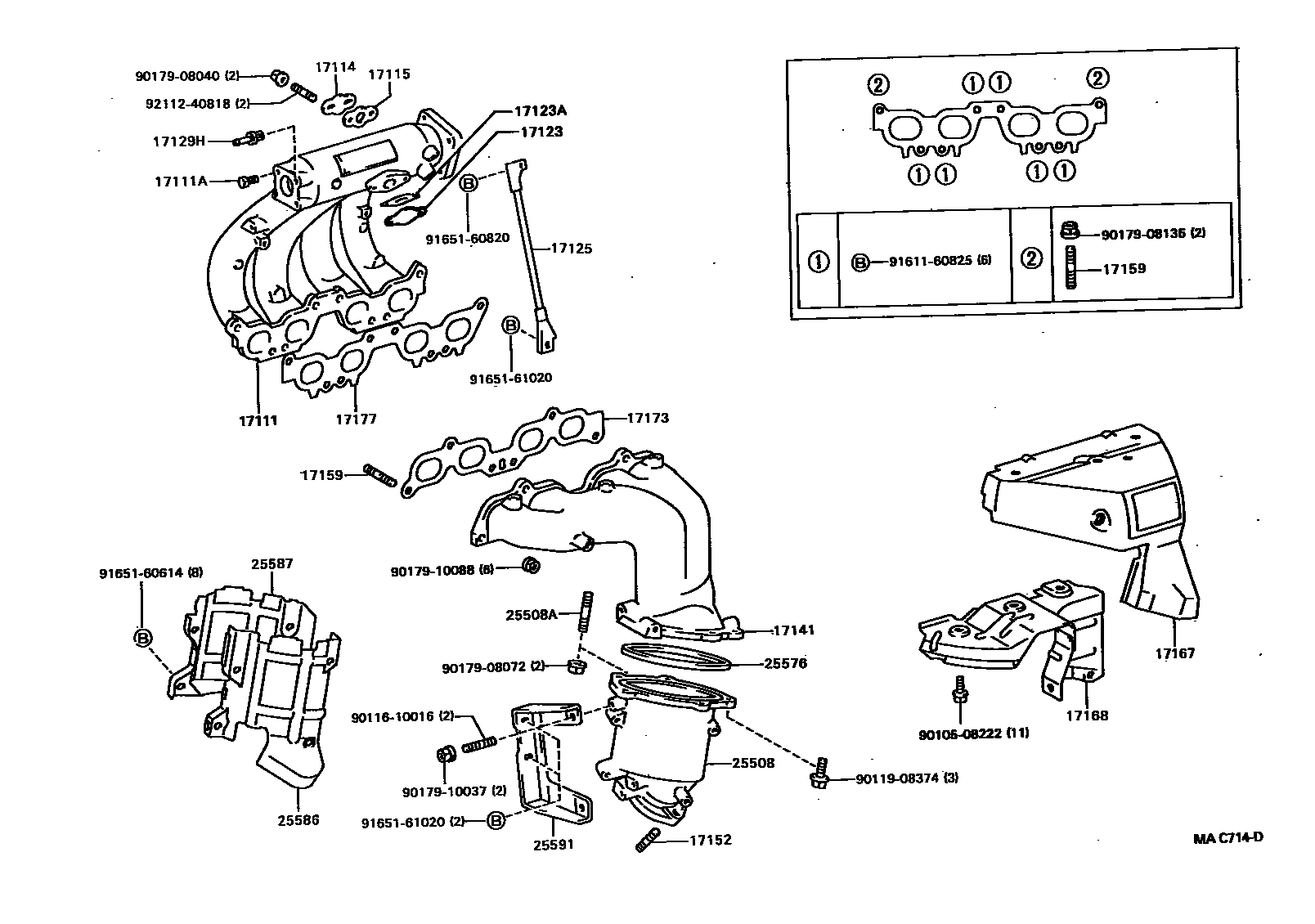

Toyota CELICA — MANIFOLD
17111MANIFOLD, INTAKE
W(PNC 17123,17123A)
17111APLUG, NO.1
17114PLATE, INTAKE MANIFOLD HOLE COVER
17115GASKET, INTAKE MANIFOLD HOLE COVER
17123COVER, SURGE TANK
17123AGASKET(FOR SURGE TANK COVER)
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17129HUNION, NO.4
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25576GASKET, MANIFOLD CONVERTER
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
25591BRACKET, MANIFOLD SUPPORT
9010508222
main90105-08222
9011610016
main90116-10016
9011908374
main90119-08374
9017908040
main90179-08040
9017908072
main90179-08072
9017908135
main90179-08135
9017910037
main90179-10037
9017910088
main90179-10088
9161160825
main91611-60825
9165160614
main91651-60614
9165160820
main91651-60820
9165161020
main91651-61020
9211240818
main92112-40818
35 parts on this diagram · 5 diagrams in section
MANIFOLD for Toyota CELICA
This section contains 109 genuine Toyota parts for the MANIFOLD system of the Toyota CELICA. Key components include: GASKET KIT, TURBOCHARGER, GASKET, TURBO OIL INLET, HOSE, TURBO OIL OUTLET, CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE), PIPE, TURBO OIL, NO.1.
