Toyota CELICA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20230i198909-199309

main69051-20260i199009-199309

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20230i198909-199309

main69052-20260i199009-199309

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-20400i198909-199309

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20220i198909-199309

main69057-20250i199009-199309

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20160i198909-199309

main69056-20190i199009-199309

69503CYLINDER SET, LOCK

main69005-20890i198909-199309

main69005-2B030i199009-199309

69503AKEY, BLANK

main90999-00163i199009-199309

main90999-00164i199009-199309

main90999-00165i199009-199309

main90999-00166i198909-199309

main90999-00167i198909-199309

main90999-00168i198909-199309

69555COVER, KEY

main69555-17020i199208-199309

main69555-20030i199001-199208

main69555-95J00i198911-199001

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i199009-199108

ORANGE

main69759-22090i199108-199309

PINK

main69759-30040i198909-199108

BEIGE

main69759-30050i198909-199108

YELLOWISH GREEN

9015140005

main90151-40005

9165140625

main91651-40625

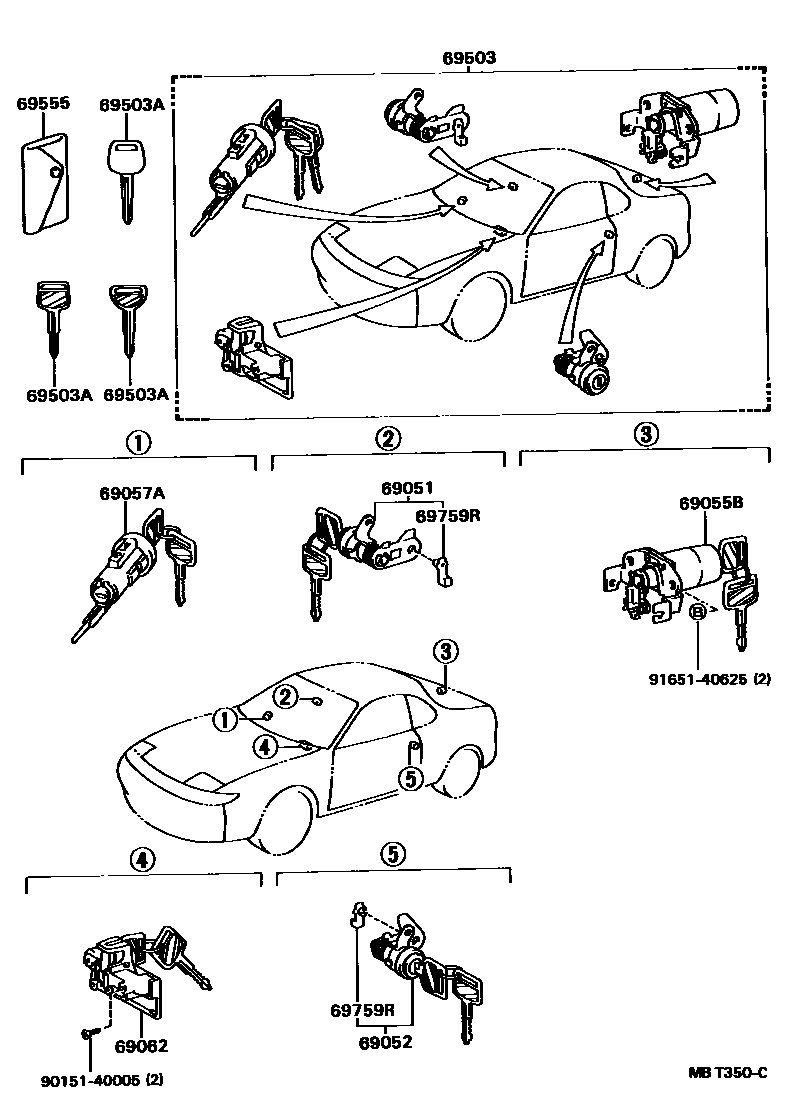

11 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CELICA

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
