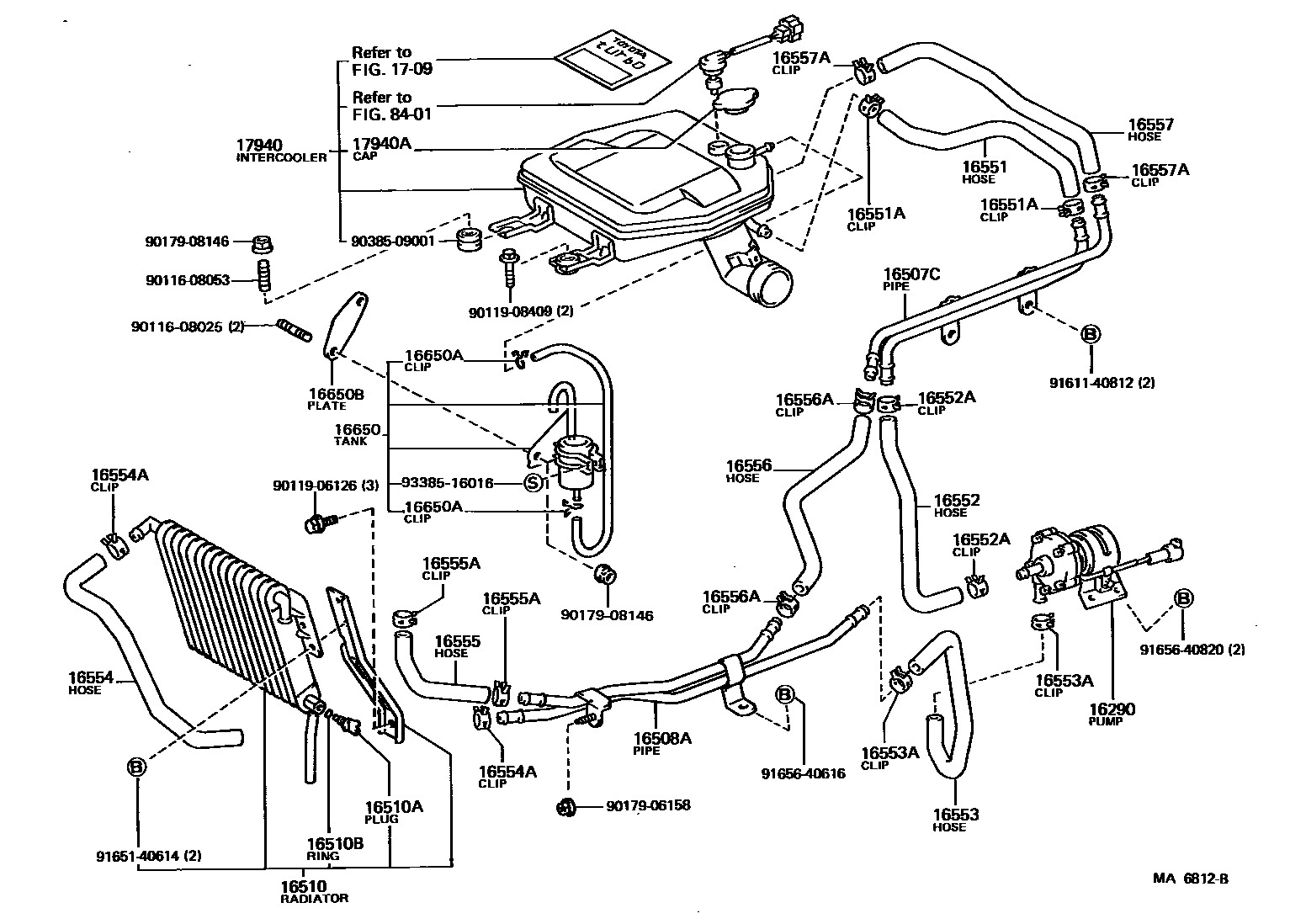

Toyota CELICA — INTERCOOLER & SUB RADIATOR

16290PUMP ASSY, WATER W/MOTOR & BRACKET

main16290-41010i198308-198512

16507CPIPE SUB-ASSY, SUB-RADIATOR, NO.1

main16507-41010i198308-198512

16508APIPE SUB-ASSY, SUB-RADIATOR, NO.2

main16508-41020i198308-198512

16510SUB-RADIATOR ASSY

main16510-41020i198308-198512

16510APLUG, DRAIN COCK(FOR SUB-RADIATOR)

main90910-09054i198308-198512

16510BRING, O(FOR SUB-RADIATOR DRAIN COCK PLUG)

main96711-19007i198308-198512

16551HOSE, SUB-RADIATOR, NO.1

main16551-41010i198308-198512

16551ACLIP, SUB-RADIATOR HOSE, NO.1

main90467-22003×2i198308-198512

16552HOSE, SUB-RADIATOR, NO.2

main16552-41010i198308-198512

16552ACLIP, SUB-RADIATOR HOSE, NO.2

main90467-22003×2i198308-198512

16553HOSE, SUB-RADIATOR, NO.3

main16553-41010i198308-198512

16553ACLIP, SUB-RADIATOR HOSE, NO.3

main90467-22003×2i198308-198512

16554HOSE, SUB-RADIATOR, NO.4

main16554-41010i198308-198512

16554ACLIP, SUB-RADIATOR HOSE, NO.4

main90467-22003×2i198308-198512

16555HOSE, SUB-RADIATOR, NO.5

main16555-41010i198308-198512

16555ACLIP, SUB-RADIATOR HOSE, NO.5

main90467-22003×2i198308-198512

16556HOSE, SUB-RADIATOR, NO.6

main16556-41010i198308-198512

16556ACLIP, SUB-RADIATOR HOSE, NO.6

main90467-22003×2i198308-198512

16557HOSE, SUB-RADIATOR, NO.7

main16557-41010i198308-198512

16557ACLIP, SUB-RADIATOR HOSE, NO.7

main90467-22003×2i198308-198512

16650TANK ASSY, RESERVE(FOR INTERCOOLER)

main16650-41010i198308-198512

16650ACLIP(FOR INTERCOOLER RESERVE TANK)

main90467-11085×2i198308-198512

16650BPLATE, RESERVE TANK BRACKET

main25617-43010i198308-198512

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17940INTERCOOLER ASSY

main17940-41010i198308-198512

17940ACAP SUB-ASSY, INTERCOOLER

main16401-41030i198308-198512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011608025

main90116-08025

9011608053

main90116-08053

9011906126

main90119-06126

9011908409

main90119-08409

9017906158

main90179-06158

9017908146

main90179-08146

9038509001

main90385-09001

9161140812

main91611-40812

9165140614

main91651-40614

9165640616

main91656-40616

9165640820

main91656-40820

9338516016

main93385-16016

39 parts on this diagram · 1 diagram in section

INTERCOOLER & SUB RADIATOR for Toyota CELICA

This section contains 39 genuine Toyota parts for the INTERCOOLER & SUB RADIATOR system of the Toyota CELICA. Key components include: PUMP ASSY, WATER W/MOTOR & BRACKET, PIPE SUB-ASSY, SUB-RADIATOR, NO.1, PIPE SUB-ASSY, SUB-RADIATOR, NO.2, SUB-RADIATOR ASSY, PLUG, DRAIN COCK(FOR SUB-RADIATOR).
