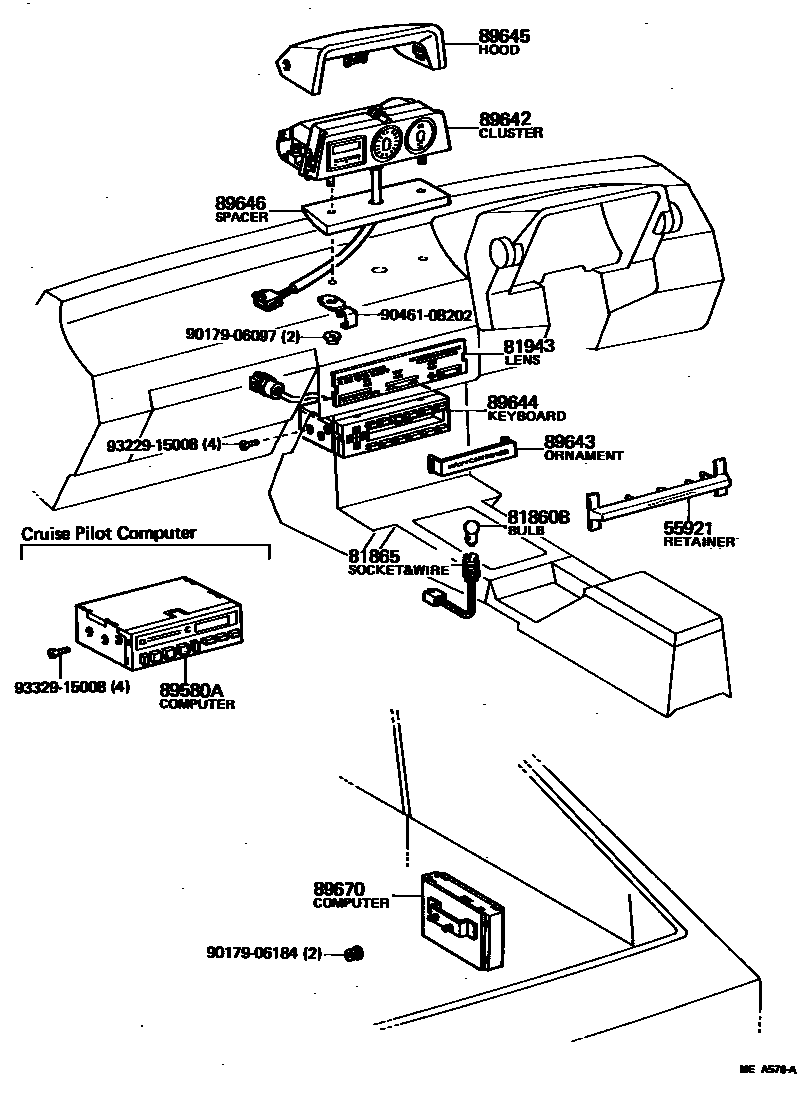

Toyota CELICA — INDICATOR

55921RETAINER, HEATER CONTROL

main55921-14120iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main55921-14130iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

AUTOMATIC AIR CONDITIONER

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iGA61,MA6#,SA60,TA63..4FC198107-198308

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iGA61,MA6#,SA60,TA63..4FC198107-198308

81943LENS, HEATER CONTROL INDICATOR

main81943-14280iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main81943-14290iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

AUTOMATIC AIR CONDITIONER

89580ACOMPUTER ASSY, CRUISE PILOT

main89580-14020iTA61..GT198107-198210

main89580-14030iRA63198107-198208

main89580-14050iGA61,MA61..GT198107-198308

89642CLUSTER, COMPASS DISPLAY

main89642-14010iMA61198107-198308

89643ORNAMENT, COMPASS DISPLAY

main89643-14010iMA61198107-198308

89644KEYBOARD, DRIVE PILOT COMPUTER

main89644-12010iMA61198301-198308

main89644-14010iMA61198107-198202

sub82233-12010

main89644-20010iMA61198202-198301

89645HOOD, DRIVE PILOT COMPUTER DISPLAY

main89645-14010-01iMA61198107-198308

BLACK,BLACK,TRIM2#

main89645-14010-02iMA61198107-198308

TERRACOTTA,RED/MAROON,TRIM3#

main89645-14010-04iMA61198107-198308

BLUE,BLUE,TRIM8#

89646SPACER, DRIVE PILOT COMPUTER

main89539-14020-01iMA61198107-198308

BRACK,BLACK,TRIM2#

main89539-14020-02iMA61198107-198308

TERRACOTTA,RED/MAROON,TRIM3#

main89539-14020-04iMA61198107-198308

BLUE,BLUE,TRIM8#

89670COMPUTER ASSY, TELLTALE WARNING(FOR SPEAK MONITOR)

main89670-14010iMA61198107-198308

9017906097

main90179-06097

9017906184

main90179-06184

9046108202

main90461-08202

9322915008

main93229-15008

9332915008

main93329-15008

16 parts on this diagram · 1 diagram in section
