Toyota CELICA — IGNITION COIL & SPARK PLUG / GLOW PLUG

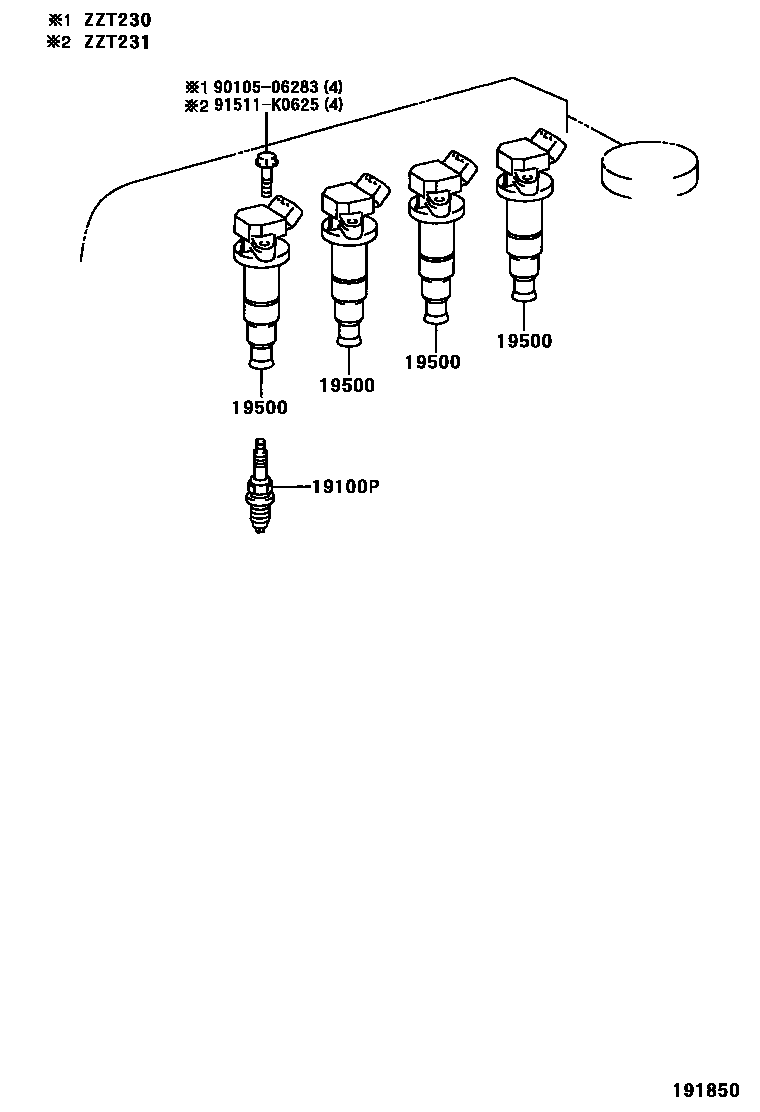

Parts diagram

19100PPLUG, SPARK

main90919-01164×4i200208

main90919-01210×4i199908-200208

main90919-01211×4i200208-200301

main90919-01237×4i200301

19500COIL ASSY, IGNITION

main90080-19015×4i200502

main90080-19019×4i200502

main90919-02238×4i199908-200208

main90919-02239×4i200208

main90919-T2002×4i200502

9010506283

main90105-06283

91511K0625

main91511-K0625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELICA

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELICA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
