Toyota CELICA — IGNITION COIL & SPARK PLUG / GLOW PLUG

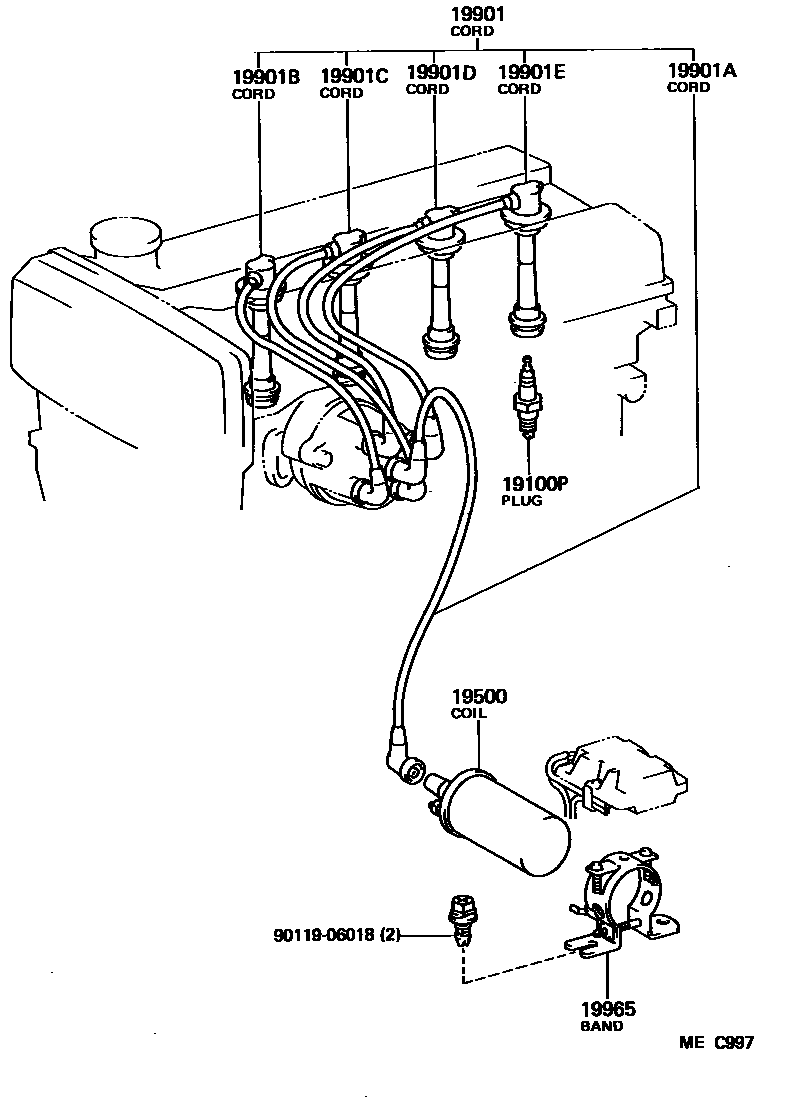

Parts diagram

19100PPLUG, SPARK

main90919-01064×6i198107-198308

main90919-01065×6i198107-198108

main90919-01084×6i198202-198512

main90919-01091×6i198107-198308

main90919-01098×6i198202-198512

main90919-01102×6i198107-198308

main90919-01103×6i198107-198108

main90919-01104×6i198107-198308

main90919-01113×4i198107-198208

main90919-01114×4i198107-198208

main90919-01115×6i198308-198512

main90919-01116×6i198308-198512

main90919-01119×6i198308-198512

main90919-01120×6i198308-198512

main90919-01121×4i198308-198507

main90919-01122×4i198308-198507

main90919-01125×8i198210-198507

main90919-01126×8i198210-198507

main90919-01127×6i198208-198501

main90919-01128×6i198208-198501

19500COIL ASSY, IGNITION

main90919-02083i198107-198308

main90919-02113i198308-198512

W/IGNITER

main90919-02117i198210-198308

W/IGNITER

main90919-02131i198107-198308

main90919-02136i198210-198308

main90919-02146i198308-198512

main90919-02158i198308-198507

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21169i198107-198308

main90919-21236i198202-198208

W/PS

main90919-21254i198107-198512

main90919-21265i198107-198208

main90919-21266i198107-198308

main90919-21294i198202-198308

main90919-21313i198210-198307

main90919-21318i198208-198512

main90919-21324i198302-198512

main90919-21332i198308-198507

main90919-21336i198307-198507

main90919-21348i198308-198512

main90919-22113i198107-198507

main90999-99092i198107-198302

19901ACORD, COIL RESISTIVE

main90072-77405i198107-198308

main90919-13039i198308-198512

main90919-13093i198107-198512

main90919-13102i198107-198201

main90919-13105i198202-198208

W/PS

main90919-13165i198107-198208

main90919-13181i198107-198512

main90919-13193i198202-198308

main90919-13204i198208-198512

main90919-13208i198210-198306

L=300

main90919-13209i198210-198507

L=230

main90919-13225×2i198306-198507

L=300

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90072-76848i198107-198308

main90919-12224i198107-198308

main90919-12238i198107-198208

main90919-12330i198107-198512

main90919-12379i198202-198308

main90919-12391i198107-198209

main90919-12394i198209-198507

main90919-12419i198107-198512

main90919-12435i198210-198507

FR

main90919-12436i198210-198507

RR

main90919-12451i198208-198512

main90919-12502i198308-198507

main90919-12540i198308-198512

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90072-76849i198107-198308

main90919-12225i198107-198308

main90919-12239i198107-198208

main90919-12331i198107-198512

main90919-12380i198202-198308

main90919-12392i198107-198507

main90919-12420i198107-198512

main90919-12437i198210-198507

FR

main90919-12438i198210-198507

RR

main90919-12452i198208-198512

main90919-12503i198308-198507

main90919-12541i198308-198512

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90072-76850i198107-198308

main90919-12226i198107-198308

main90919-12240i198107-198208

main90919-12332i198107-198512

main90919-12381i198202-198308

main90919-12392i198209-198507

main90919-12393i198107-198209

main90919-12421i198107-198512

main90919-12439i198210-198507

FR

main90919-12440i198210-198507

RR

main90919-12453i198208-198512

main90919-12504i198308-198507

main90919-12542i198308-198512

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90072-76851i198107-198308

main90919-12227i198107-198308

main90919-12241i198107-198208

main90919-12333i198107-198512

main90919-12382i198202-198308

main90919-12394i198107-198507

main90919-12422i198107-198512

main90919-12441i198210-198507

FR

main90919-12442i198210-198507

RR

main90919-12454i198208-198512

main90919-12505i198308-198507

main90919-12543i198308-198512

19965BAND, IGNITION COIL, NO.1

main90919-03066i198107-198308

main90919-03075i198107-198308

main90919-03076i198202-198308

main90919-03085i198107-198308

main90919-03086i198308-198512

main90919-03094i198308-198512

9011906018

main90119-06018

10 parts on this diagram · 10 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELICA

This section contains 43 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELICA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
