Toyota CELICA — HEATING & AIR CONDITIONING - COMPRESSOR

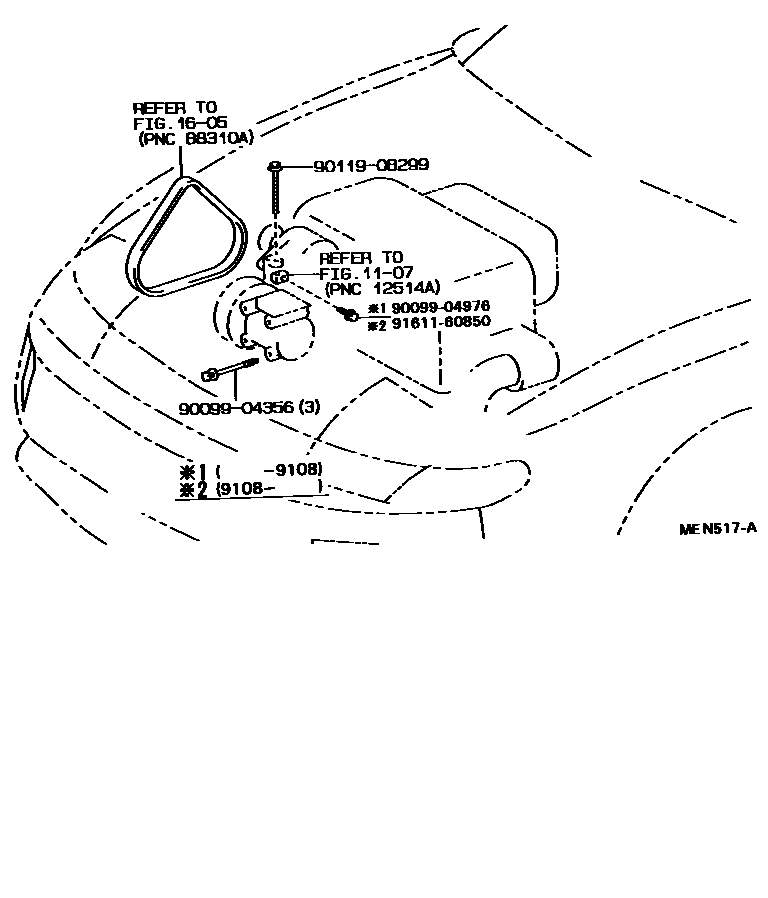

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
1605V-BELT
→ Go to FIG 16-05
9009904356
main90099-04356
9009904976
main90099-04976
9011908299
main90119-08299
9161160850
main91611-60850

6 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELICA

This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELICA. Key components include: MOUNTING, V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER.
