Toyota CELICA — HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN
IKI
KOITO
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
81110SSEALED BEAM UNIT, NO.1
81111ARING, SEALED BEAM RETAINING, NO.1 RH
IKI
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
KOITO
IKI
81121SPRING, HEADLAMP TENSION
IKI
KOITO
81131SCREW, HEADLAMP ADJUSTING
IKI
KOITO
81150HEADLAMP ASSY, LH
HALOGEN
IKI
KOITO
HALOGEN
81151ARING, SEALED BEAM RETAINING, NO.1 LH
IKI
KOITO
81153RING, SEALED BEAM MOUNTING, NO.1 LH
KOITO
IKI
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9165140632
main91651-40632

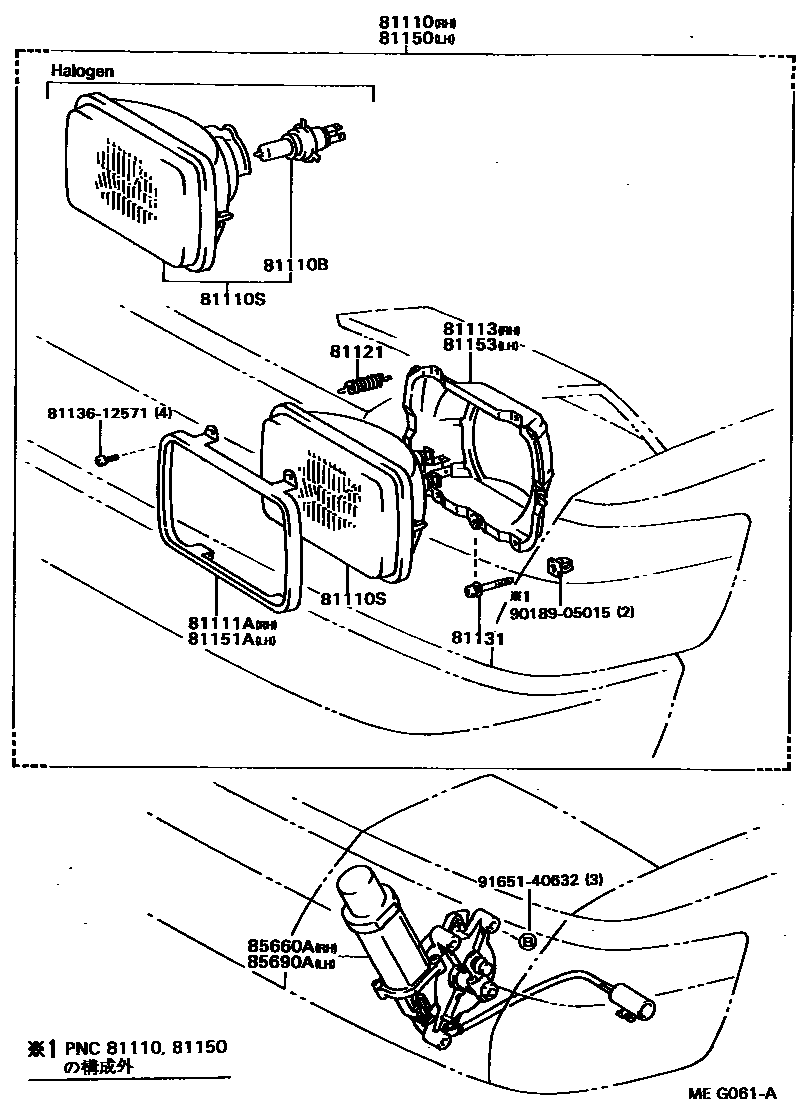

15 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota CELICA
This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota CELICA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH.
