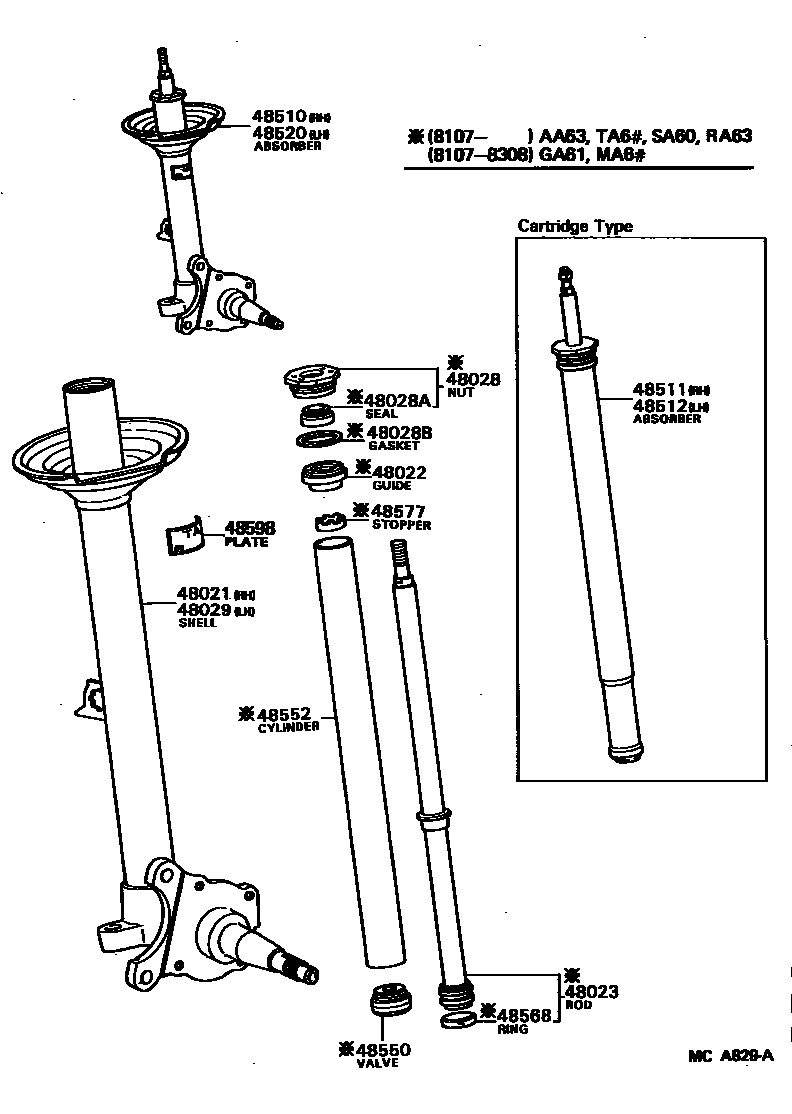

Toyota CELICA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14060iSA60198107-198507

main48021-14070iAA63,RA63,TA6#198107-198507

main48021-14090iGA61,MA6#198408-198512

main48021-24010iGA61,MA6#198107-198408

sub48021-24011

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010×2iGA61,MA6#,RA63,SA60,TA6#198107-198308

sub48022-22040

sub90430-42001

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14100×2iSA60198107-198401

main48023-14130×2iTA63..ST,SX198107-198308

main48023-14140×2iRA63,TA6#..GT,GTR,GTS,GTT198107-198308

main48023-14160×2iGA61..GT198208-198308

main48023-20090×2iAA63,TA63198308-198507

main48023-20100×2iSA60198401-198507

main48023-24011×2iGA61..G,L,S198107-198308

main48023-24021×2iMA6#198107-198308

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011×2iAA63,SA60,TA63198308-198507

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001×2iGA61,MA6#,RA63,SA60,TA6#198107-198308

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206×2iAA63,SA60,TA63198308-198507

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14010iSA60198107-198507

main48029-14020iAA63,RA63,TA6#198107-198507

main48029-14040iGA61,MA6#198408-198512

main48029-24010iGA61,MA6#198107-198408

sub48029-24011

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14160iSA60198107-198401

sub48510-14161

main48510-14190iTA63..ST,SX198107-198308

sub48510-14191

main48510-14200iRA63,TA6#..GT,GTR,GTS,GTT198107-198308

main48510-14230iGA61..GT198208-198308

sub48510-14231

main48510-14250iGA61,MA6#198308-198408

sub48510-14251

main48510-14260iGA61,MA6#198408-198512

sub48510-14261

main48510-20140iAA63,TA63198308-198507

main48510-20150iSA60198401-198507

main48510-24010iGA61..G,L,S198107-198308

sub48510-24011

main48510-24020iMA6#198107-198308

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14150iSA60198107-198401

main48511-14160iTA63..ST,SX198107-198308

main48511-14170iRA63,TA6#..GT,GTR,GTS,GTT198107-198507

main48511-19065iGA61,MA6#198308-198408

main48511-19066iGA61,MA6#198408-198512

main48511-20110iSA60198401-198507

main48511-20120iAA63198308-198507

main48511-24010iGA61..G,L,S198107-198308

sub48511-24040

main48511-24020iMA6#198107-198308

sub48511-24050

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14150iSA60198107-198401

main48511-14160iTA63..ST,SX198107-198308

main48511-14170iRA63,TA6#..GT,GTR,GTS,GTT198107-198507

main48511-19065iGA61,MA6#198308-198408

main48511-19066iGA61,MA6#198408-198512

main48511-20110iSA60198401-198507

main48511-20120iAA63198308-198507

main48511-24010iGA61..G,L,S198107-198308

sub48511-24040

main48511-24020iMA6#198107-198308

sub48511-24050

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-14020iSA60198107-198401

sub48520-14021

main48520-14050iTA63..ST,SX198107-198308

sub48520-14051

main48520-14060iRA63,TA6#..GT,GTR,GTS,GTT198107-198308

main48520-14090iGA61..GT198208-198308

sub48520-14091

main48520-14110iGA61,MA6#198308-198408

sub48520-14111

main48520-14120iGA61,MA6#198408-198512

sub48520-14121

main48520-20140iAA63,TA63198308-198507

sub48520-14051

main48520-20150iSA60198401-198507

main48520-24010iGA61..G,L,S198107-198308

sub48520-24011

main48520-24020iMA6#198107-198308

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14060×2iSA60,TA63..ST,SV,SX198107-198308

main48550-24010×2iAA63,TA63198308-198401

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14010×2iSA60198107-198507

main48552-14021×2iAA63,RA63,TA6#198107-198507

main48552-22030×2iGA61,MA6#198107-198308

48568RING, SHOCK ABSORBER PISTON

main48568-22020×2iGA61,MA6#,RA63,SA60,TA6#198107-198307

main48568-22021×2iAA63,SA60,TA63198308-198507

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011×2iGA61,MA6#,RA63,SA60,TA6#198107-198308

48598PLATE, ABSORBER NAME

main48598-14290iSA60198109-198401

RH

main48598-14300iSA60198109-198401

LH

main48598-14310iTA63..ST,SX198109-198308

RH

main48598-14320iTA63..ST,SX198109-198308

LH

main48598-14330iRA63,TA6#..GT,GTR,GTS,GTT198109-198308

RH

main48598-14340iRA63,TA6#..GT,GTR,GTS,GTT198109-198308

LH

main48598-20010iAA63,TA63198308-198409

RH

main48598-20020iAA63,TA63198308-198409

LH

main48598-20030iSA60198401-198409

RH

main48598-20040iSA60198401-198409

LH

16 parts on this diagram · 2 diagrams in section
