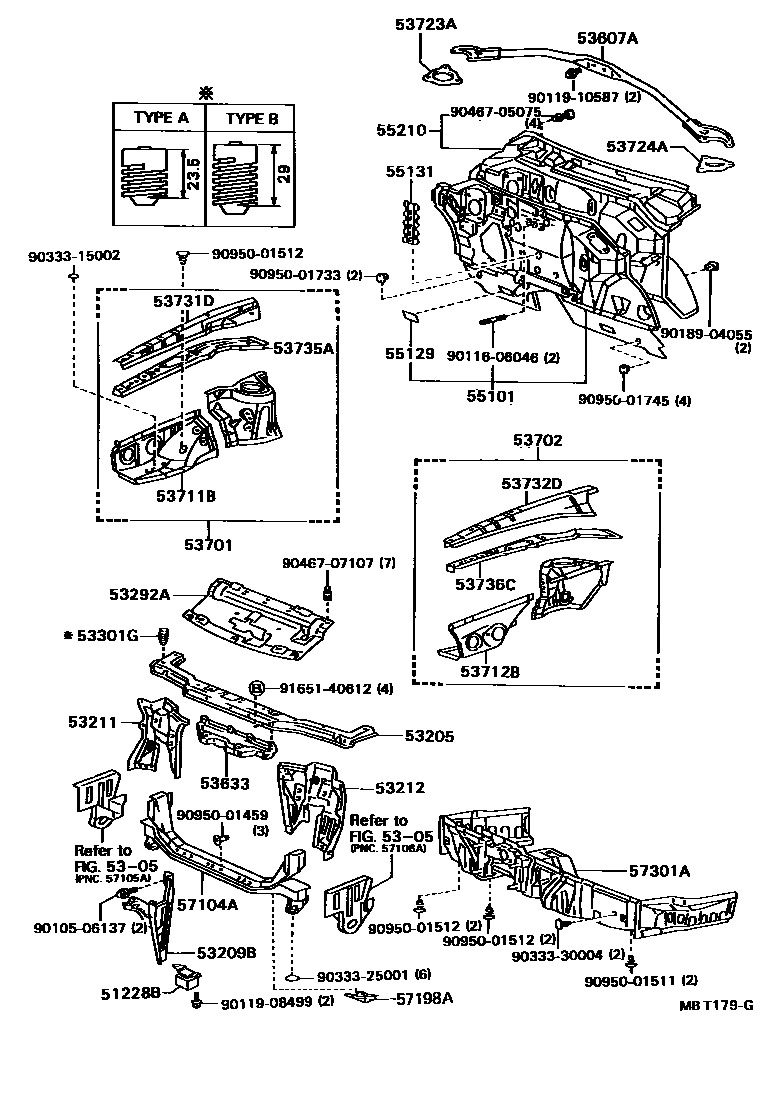

Toyota CELICA — FRONT FENDER APRON & DASH PANEL

51228BWEIGHT, FRONT SUSPENSION MEMBER DUMPER, LH

main51228-20040iST18#..ACT,CV,GT4,GT4A,GTR198909-199309

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-20030iST18#198909-199309

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-20200iST18#..ACT,CV,GT4,GT4A,GTR,SR,ZR198909-199309

main53209-20290iST185..GT4RC199108-199202

53211SUPPORT, RADIATOR, RH

main53211-20210iST18#198909-199309

53212SUPPORT, RADIATOR, LH

main53212-20210iST18#198909-199309

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-20050iST18#..CV,GT4,GT4A,GTR,SR,ZR198909-199309

main53292-20070iST183..ACT199004-199108

main53292-20080iST185..GT4RC199108-199202

53301GCUSHION, HOOD BUMPER

main90541-15011×4iST18#199001-199309

sub90541-15033

main90541-15016×4iST18#198910-199309

sub90541-15019

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-20080iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main53607-20090iST183..ACT199004-199108

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-20010iST18#198909-199309

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20700iST183..ACT199004-199108

main53701-20720iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20690iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main53702-20710iST183..ACT199004-199108

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20900iST18#198909-199309

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20290iST18#198909-199309

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-20040iST185..WIB199008-199309

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-20040iST185..WIB199008-199309

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20090iST18#198909-199309

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20090iST18#198909-199309

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-20900iST18#198909-199309

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-20900iST18#198909-199309

55101PANEL SUB-ASSY, DASH

main55101-2B914iST18#..LB..MTM198909-199108

main55101-2B915iST182,183..LB..ATM198909-199108

main55101-2B917iST183..MTM..CV199009-199108

main55101-2B918iST183..ATM..CV199009-199108

main55101-2B924iST18#..MTM199109-199309

main55101-2B925iST182,183..LB..ATM199108-199109

sub90950-01409

sub90950-01557

55129COVER, DASH PANEL HOLE

main55129-20010×2iST18#198909-199309

55131REINFORCEMENT, DASH PANEL

main55131-20090iST18#198909-199309

55210INSULATOR ASSY, DASH PANEL

main55210-20270iST18#198909-199309

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-20090iST18#198909-199309

57198APLATE, FRONT CROSSMEMBER, NO.2 LH

main57198-20040iST183..CV199009-199309

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-20170iST183..ACT199004-199108

main57301-20200iST182198909-199309

main57301-20220iST185198910-199309

main57301-20240iST183..CV,GTR,SR,ZR198909-199309

9010506137

main90105-06137

9011606046

main90116-06046

9011908499

main90119-08499

9011910587

main90119-10587

9018904055

main90189-04055

9033315002

main90333-15002

9033325001

main90333-25001

9033330004

main90333-30004

9046705075

main90467-05075

9046707107

main90467-07107

9095001459

main90950-01459

9095001511

main90950-01511

9095001512

main90950-01512

9095001733

main90950-01733

9095001745

main90950-01745

9165140612

main91651-40612

43 parts on this diagram · 1 diagram in section
