Toyota CELICA — FRONT DOOR PANEL & GLASS

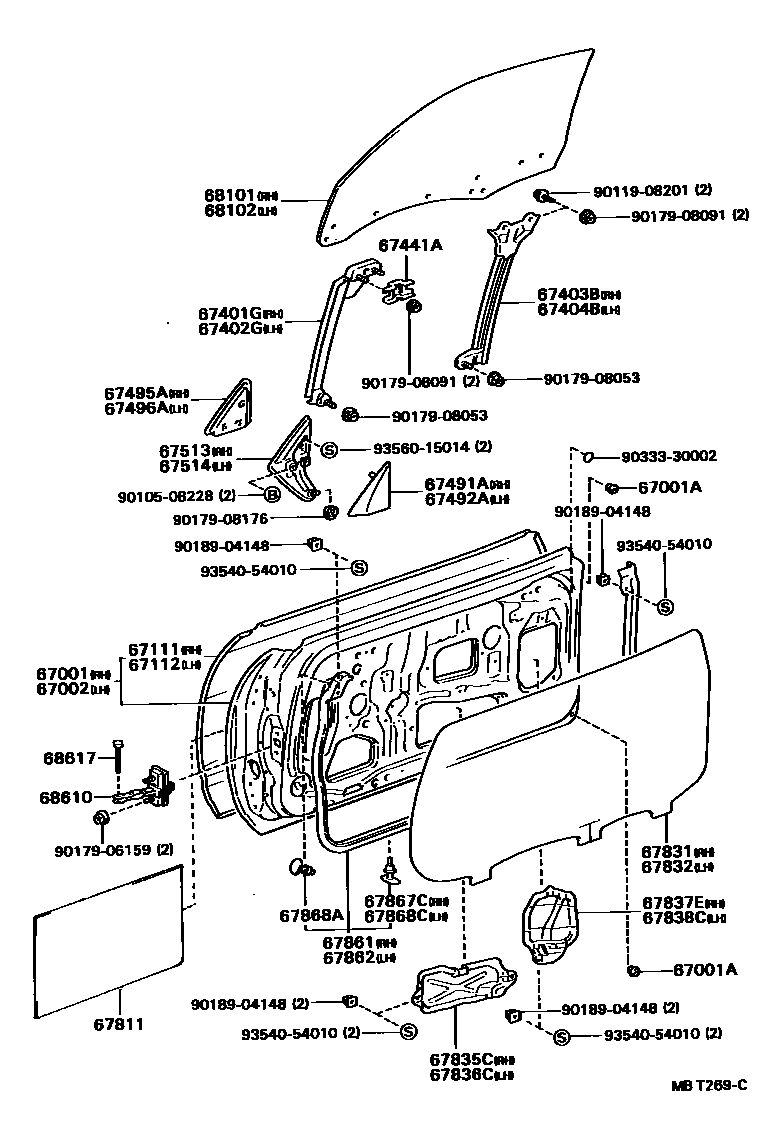

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-20820i199108-199109
main67001-20830i199108-199109
67001ACUSHION, FRONT DOOR PANEL
main90541-09006×4i198909-199309
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-20780i198909-199108
main67002-20790i199108-199109
67111PANEL, FRONT DOOR, OUTER RH
main67111-20300i198909-199309
67112PANEL, FRONT DOOR, OUTER LH
main67112-20320i198909-199309
67401GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
main67401-20190i198909-199309
67402GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
main67402-20180i198909-199309
67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
main67403-20080i198909-199309
67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
main67404-20080i198909-199309
67441APLATE, FRONT DOOR FRONT GUIDE, UPPER
main67441-20060×2i199001-199309
main67441-32020i198909-199001
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-20190i198909-199309
main67491-20220i198909-199309
main67491-20230i199109-199309
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-20210i198910-199108
GT-FOUR RALLY OR GT-FOUR V
main67492-20240i198909-199309
main67492-20250i199109-199309
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
main67495-20090i198909-199309
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
main67496-20060i198909-199309
67513BRACKET, FRONT DOOR MIRROR, RH
main67513-20060i198909-199008
main67513-20061i199008-199309
67514BRACKET, FRONT DOOR MIRROR, LH
main67514-20060i198909-199008
main67514-20061i199008-199309
67811PAD, FRONT DOOR SILENCER
main67812-12010×2i198909-199108
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-20360i199009-199309
EVP 1 PACKAGE
main67831-20370i199004-199309
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-20360i198909-199309
main67831-20370i199004-199309
67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH
main67835-20030i198909-199309
67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH
main67836-20070i198909-199309
67837ECOVER, FRONT DOOR SERVICE HOLE, NO.4 RH
main67837-20080i198909-199309
67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH
main67838-20070i198909-199309
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-20320i198909-199309
main67861-20340i199009-199309
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-20320i198909-199309
main67862-20340i199009-199309
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-20030×19i199009-199309
main67868-20130×19i198909-199309
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
main67869-20030×4i198909-199309
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-20030×19i199009-199309
main67868-20130×19i198909-199309
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-20550i198909-199309
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-20470i198909-199309
68610CHECK ASSY, FRONT DOOR
main68610-20070×2i199108-199109
main68610-20090i199108-199109
main68620-20010i199108-199109
68617PIN, FRONT DOOR CHECK
main68617-20020×2i198909-199309
9010508228
main90105-08228
9011908201
main90119-08201
9017906159
main90179-06159
9017908053
main90179-08053
9017908091
main90179-08091
9017908176
main90179-08176
9018904148
main90189-04148
9033330002
main90333-30002
9354054010
main93540-54010
9356015014
main93560-15014

42 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota CELICA

This section contains 70 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CELICA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
