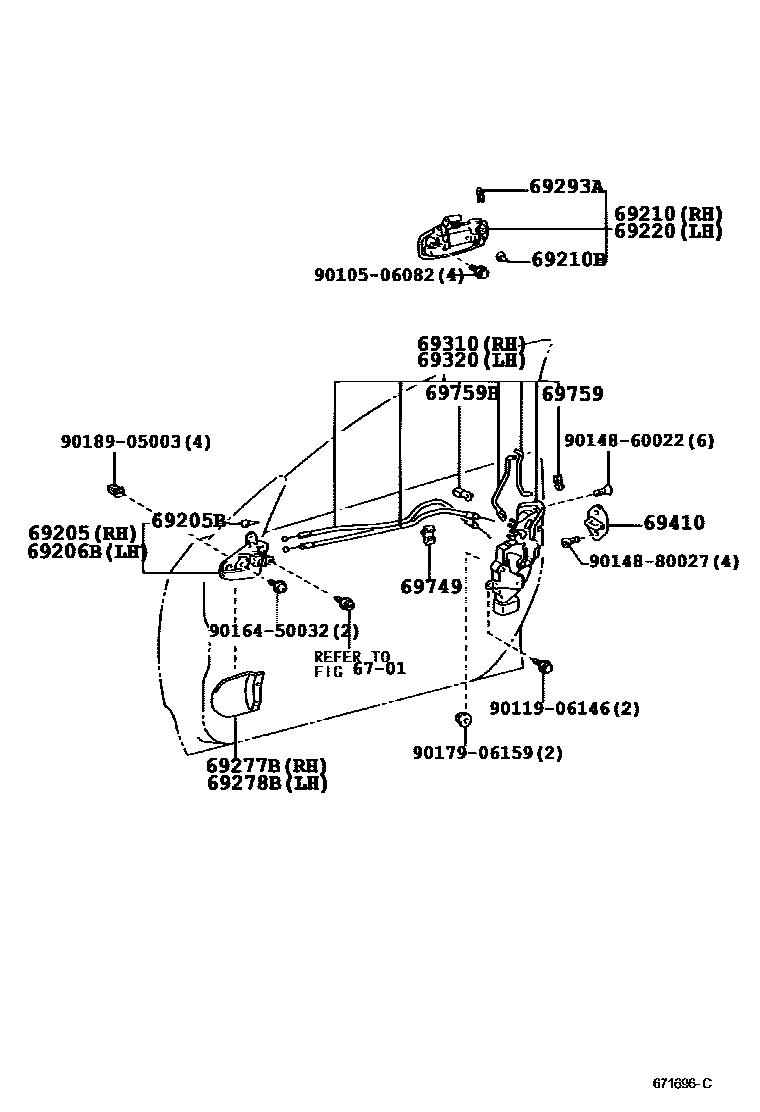

Toyota CELICA — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK,202
BLACK MC.CC.,210
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
BLUE MC.,8M6
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK,202
BLACK MC.CC.,210
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
9010506082
main90105-06082
9011906146
main90119-06146
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9017906159
main90179-06159
9018905003
main90189-05003
23 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CELICA
This section contains 23 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: FRONT DOOR PANEL & GLASS, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
