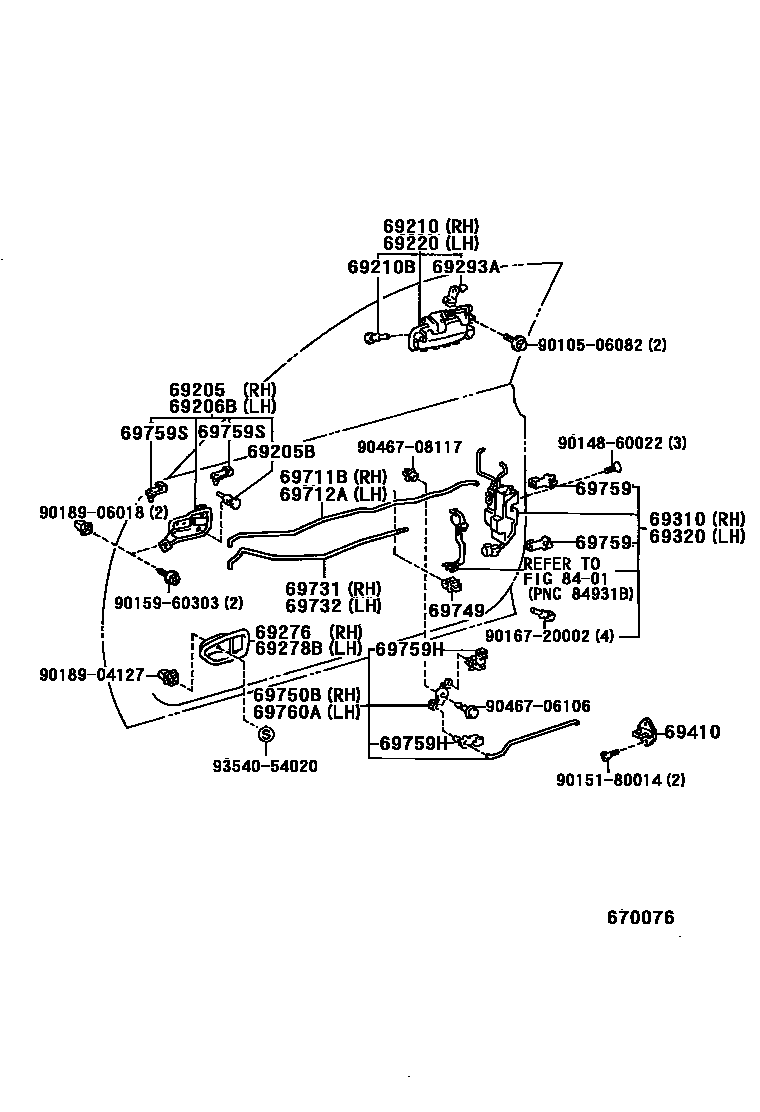

Toyota CELICA — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
SUPER BRIGHT YELLOW,576
DK. GREEN MICA,6M1
LT.GREEN ME.,6R0
DEEP TEAL ME.,752
GRAISH TURQUOISE M.M,753
BLUE M.M.,8L5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
SUPER BRIGHT YELLOW,576
DK. GREEN MICA,6M1
LT.GREEN ME.,6R0
DEEP TEAL ME.,752
GRAISH TURQUOISE M.M,753
BLUE M.M.,8L5
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401SWITCH & RELAY & COMPUTER
9010506082
main90105-06082
9014860022
main90148-60022
9015180014
main90151-80014
9015960303
main90159-60303
9016720002
main90167-20002
9018904127
main90189-04127
9018906018
main90189-06018
9046706106
main90467-06106
9046708117
main90467-08117
9354054020
main93540-54020
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CELICA
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
