Toyota CELICA — FRONT AXLE HUB

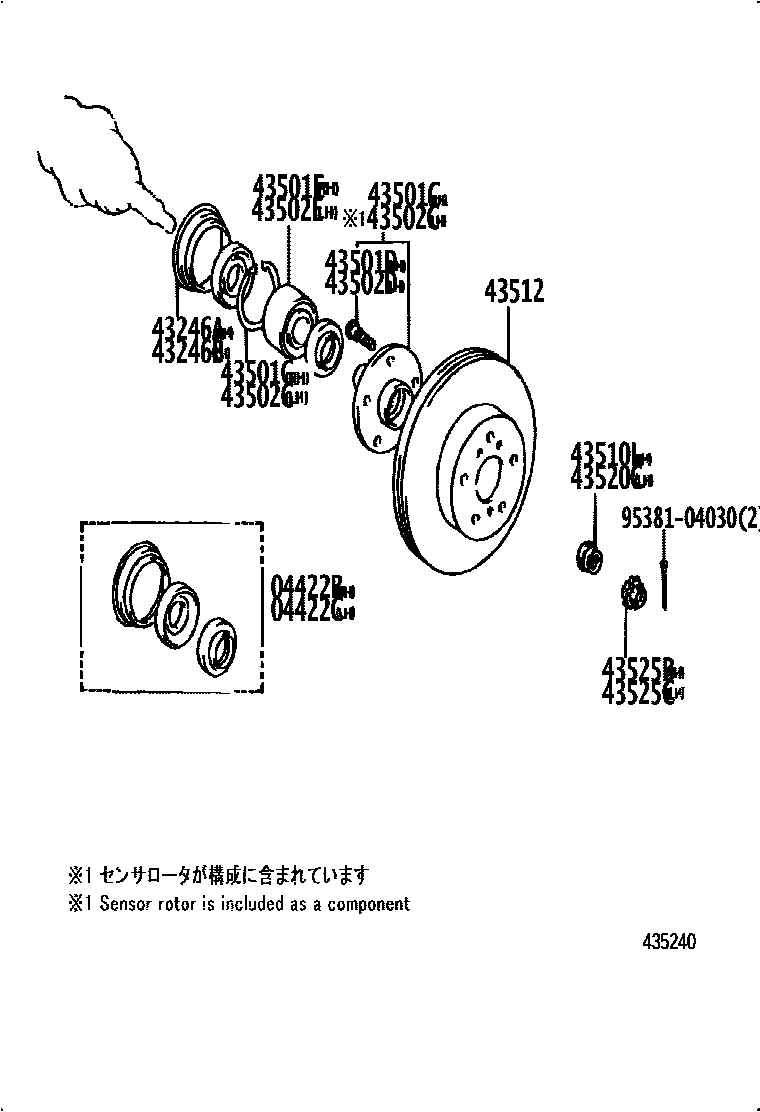

Parts diagram

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12111i199601-199606

main04422-12121i199601

main04422-20060i199309-199601

main04422-20080i199601

main04422-20090i199508-199601

main04422-20100i199508-199601

main04422-20110i199309-199606

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12111i199601-199606

main04422-12121i199601

main04422-20060i199309-199601

main04422-20080i199601-199712

main04422-20090i199309-199508

main04422-20100i199309-199508

main04422-20110i199309-199606

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020i199309

main43246-17020i199309-199508

main43246-20010i199309-199606

main43246-32020i199508

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020i199309

main43246-17020i199309-199508

main43246-20010i199606-199712

main43246-32020i199402

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20170i199309

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i199309

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003i199309-199908

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i199309-199908

main90521-85002i199309-199508

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20170i199309

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i199309

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38003i199309-199908

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i199309-199908

main90521-85002i199309-199508

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i199712

main90179-22020i199309-199603

main90179-22025i199603-199709

43512DISC, FRONT

main43512-20580×2i199309

main43512-20590×2i199712

main43512-20600×2i199309

main43512-20610i199402

main43516-20010i199402

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i199712

main90179-22020i199709-199712

main90179-22025i199603-199709

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199309

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199309

9538104030

main95381-04030

18 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota CELICA

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELICA. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
