Toyota CELICA — FOG LAMP

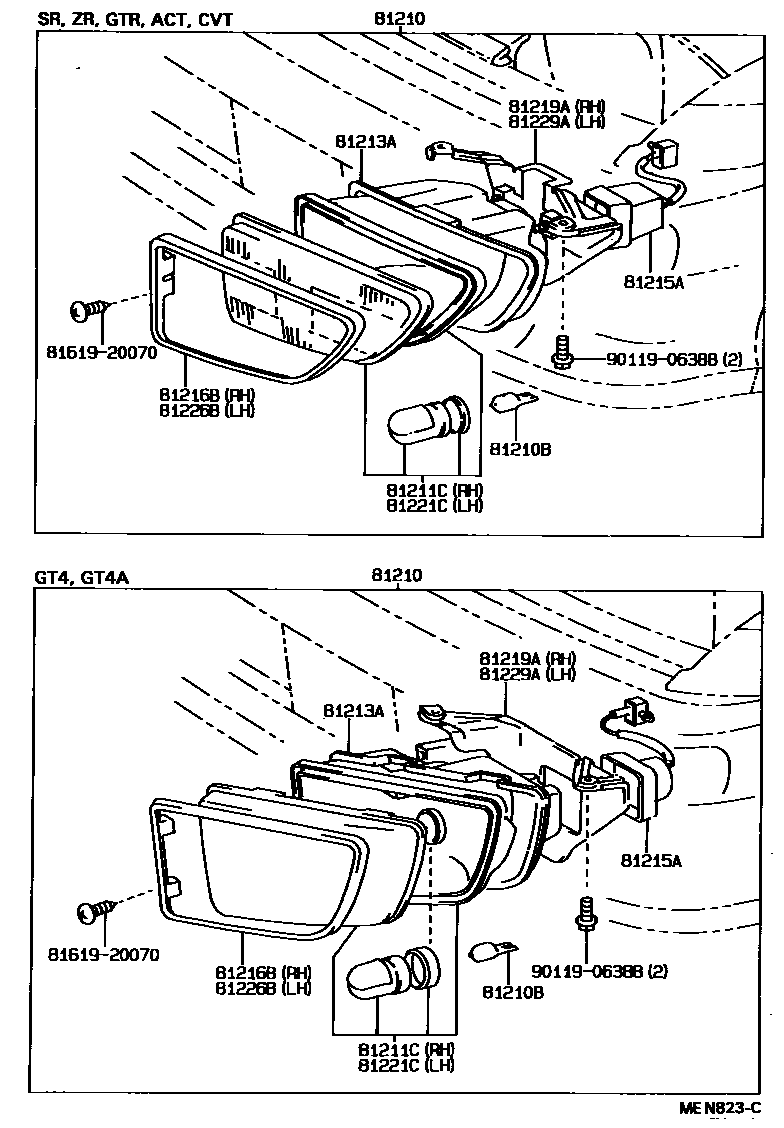

Parts diagram

81210LAMP ASSY, FOG

main81210-29125i198910-199108

main81210-29145i199108-199109

main81210-29205i199109-199309

main81210-29235i199108-199309

main81220-29075i198910-199108

main81220-29095i199108-199109

main81220-29155i199108-199109

main81220-29185i199108-199309

81210BBULB, FOG LAMP

main90981-13018×2i198909-199008

main90981-13048×2i199008-199309

81211CLAMP UNIT, FOG LAMP, RH

main81211-20120i199109-199309

main81211-20130i198910-199108

main81211-20170i199108-199109

main81211-20230i199108-199309

81213ABODY, FOG LAMP

main81213-20130i198910-199108

main81213-20170i199108-199109

main81223-20130i198910-199108

main81223-20170i198909-199108

81215ASOCKET & WIRE, FOG LAMP

main81215-20120×2i199109-199309

main81215-20170×2i198909-199108

81216BRIM, FOG LAMP, RH NO.1

main81216-20130i198910-199108

main81216-20170i198909-199108

81219ABRACKET, FOG LAMP, RH

main81219-20120i199109-199309

main81219-20130i198910-199108

main81219-20170i199108-199109

main81219-20230i199108-199309

81221CLAMP UNIT, FOG LAMP, LH

main81221-20110i199109-199309

main81221-20130i198910-199108

main81221-20170i199108-199109

main81221-20220i199108-199309

81226BRIM, FOG LAMP, LH

main81226-20130i198910-199108

main81226-20170i198909-199108

81229ABRACKET, FOG LAMP, LH

main81229-20110i199109-199309

main81229-20130i198910-199108

main81229-20170i198909-199108

main81229-20220i199108-199309

8161920070

main81619-20070

9011906388

main90119-06388

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 14 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BODY, FOG LAMP, SOCKET & WIRE, FOG LAMP.
