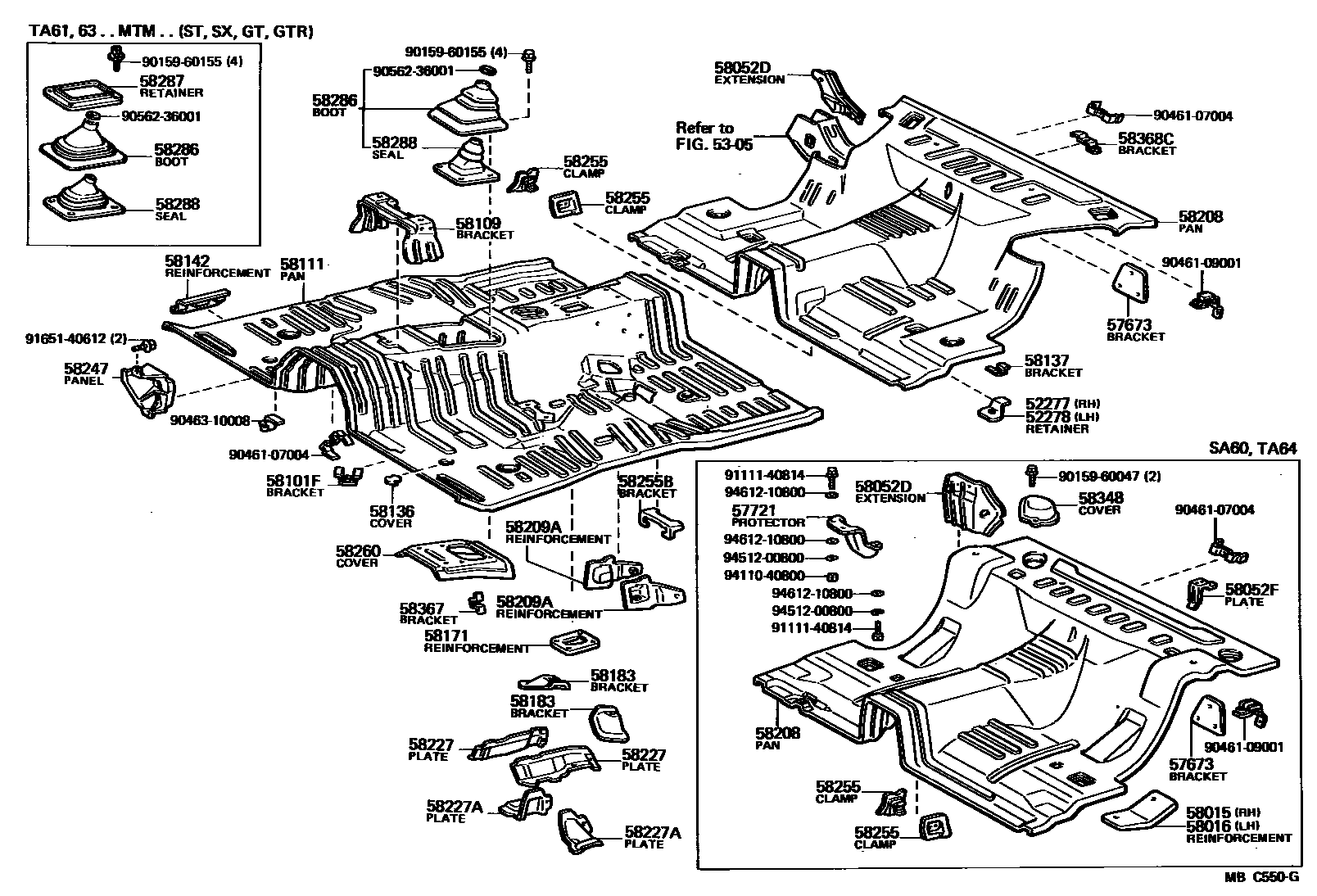

Toyota CELICA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-14010iAA63,GA61,MA6#,RA63,TA61,63198107-198512

52278RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH

main52278-14010iAA63,GA61,MA6#,RA63,TA61,63198107-198512

5305

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-14010iRA63,TA61,63..CP..(GT,GTT,SX)198107-198308

57721PROTECTOR, LOWER CONTROL LINK

main57777-14010iSA60,TA64198107-198507

RH

main57778-14010iSA60,TA64198107-198507

LH

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-14030iSA60198107-198507

main58015-14050iTA64198210-198308

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58016-14030iSA60198107-198507

main58016-14050iTA64198210-198308

58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY

main64217-14070iAA63,RA63,TA61,63..CP198107-198507

RH

main64217-14080iSA60,TA64..CP198107-198507

RH

main64218-14060iAA63,RA63,TA61,63..CP198107-198507

LH

main64218-14070iSA60,TA64..CP198107-198507

LH

58052FPLATE, LUGGAGE HOLD BELT ANCHOR

main58422-14040×2iSA60..LB;SA60..CP..SX198107-198507

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58131-12020×7iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

sub58131-14030

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58193-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58111PAN, FRONT FLOOR

main58111-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58136COVER, FRONT FLOOR HOLE

main58136-24010×2iGA61,MA6#,RA63,SA60,TA6#198107-198308

sub90950-06002

58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4

main58236-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-24010×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

main58184-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

58208PAN, CENTER FLOOR

main58211-14080iSA60,TA64..CP..(GTS,ST,SV)198107-198507

main58211-14090iSA60..LB;SA60..CP..SX198107-198507

main58211-14100iTA61,63..CP..(GTR,ST)198107-198308

main58211-14110iAA63,GA61,MA6#,RA63,TA61,63..LB198107-198406

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58205-14020iAA63,RA63,TA6#198107-198507

RH

main58277-24010iGA61,MA6#,SA60198107-198512

RH

main58278-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

58227PLATE, AIR GUIDE, OUTSIDE

main58226-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

main58227-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

58227APLATE, AIR GUIDE

main58228-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

main58229-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

58247PANEL, FOOTREST, INSIDE

main58191-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-14020iSA60,TA64198107-198507

RH

main58207-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

RH

main58208-14020iSA60,TA64198107-198507

LH

main58208-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

LH

58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1

main58264-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58260COVER ASSY, TRANSMISSION, FRONT

main58281-14080iTA61,63..5F..(GT,GTR,ST,SX)198107-198308

main58281-14090iTA63,64..5F..(GTS,GTT)198210-198507

main58281-24020iGA61,MA6#,SA60,TA63..4FC198107-198512

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-14050iTA63,64..5F..(GTS,GTT)198210-198507

main58286-14060iTA61,63..5F..(GT,GTR,ST,SX)198107-198308

58287RETAINER, SHIFT LEVER BOOT

main58287-14040iTA61,63..5F..(GT,GTR,ST,SX)198107-198308

58288SEAL, SHIFT LEVER BOOT

main58288-14060iTA63,64..5F..(GTS,GTT)198210-198507

main58288-14070iTA61,63..5F..(GT,GTR,ST,SX)198107-198308

58348COVER, REAR ABSORBER SERVICE HOLE

main58348-14010iSA60198107-198111

RH

main58348-14020×2iSA60,TA64198111-198507

main58349-14010iSA60198107-198111

LH

58367BRACKET, FUEL TUBE CLAMP

main58266-14040iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58368CBRACKET, FUEL TUBE, NO.3

main58267-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

9015960047

main90159-60047

9015960155

main90159-60155

9046107004

main90461-07004

9046109001

main90461-09001

9046310008

main90463-10008

9056236001

main90562-36001

9111140814

main91111-40814

9165140612

main91651-40612

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

42 parts on this diagram · 2 diagrams in section
