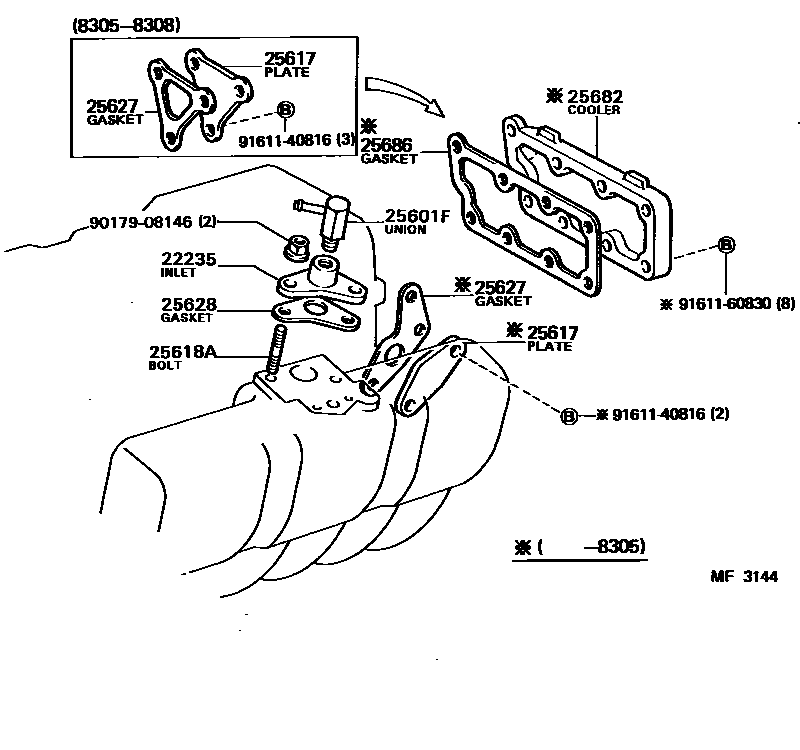

Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM

22235INLET, AUXILIARY AIR

main22235-43010i198202-198512

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i198202-198512

25617PLATE, EGR HOLE COVER

main25615-43010i198107-198308

EGR COOLER

main25615-43020i198308-198512

HEAD

main25617-43010i198202-198305

main25617-43020i198107-198506

SURGE TANK

main25617-43030i198305-198308

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025×2i198202-198512

25627GASKET, EGR VALVE

main25627-41020i198202-198305

main25627-43020i198107-198506

main25627-43030i198308-198512

HEAD

main25627-43040i198305-198308

main25627-63010i198107-198507

25628GASKET, EGR INLET

main25628-43030i198107-198308

main25628-45020i198202-198512

25682COOLER, EGR, NO.2

main25682-45020i198202-198305

25686GASKET, EGR COOLER, NO.2

main25686-45010i198202-198305

9017908146

main90179-08146

9161140816

main91611-40816

9161160830

main91611-60830

11 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA

This section contains 20 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: INLET, AUXILIARY AIR, UNION(FOR EGR PIPE, NO.1), PLATE, EGR HOLE COVER, BOLT, STUD(FOR EGR INLET), VALVE ASSY, EGR.
