Toyota CELICA — ELECTRONIC HEIGHT CONTROL

48906ELINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-20050i200508

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-20020i200508

9011906375

main90119-06375

9018206005

main90182-06005

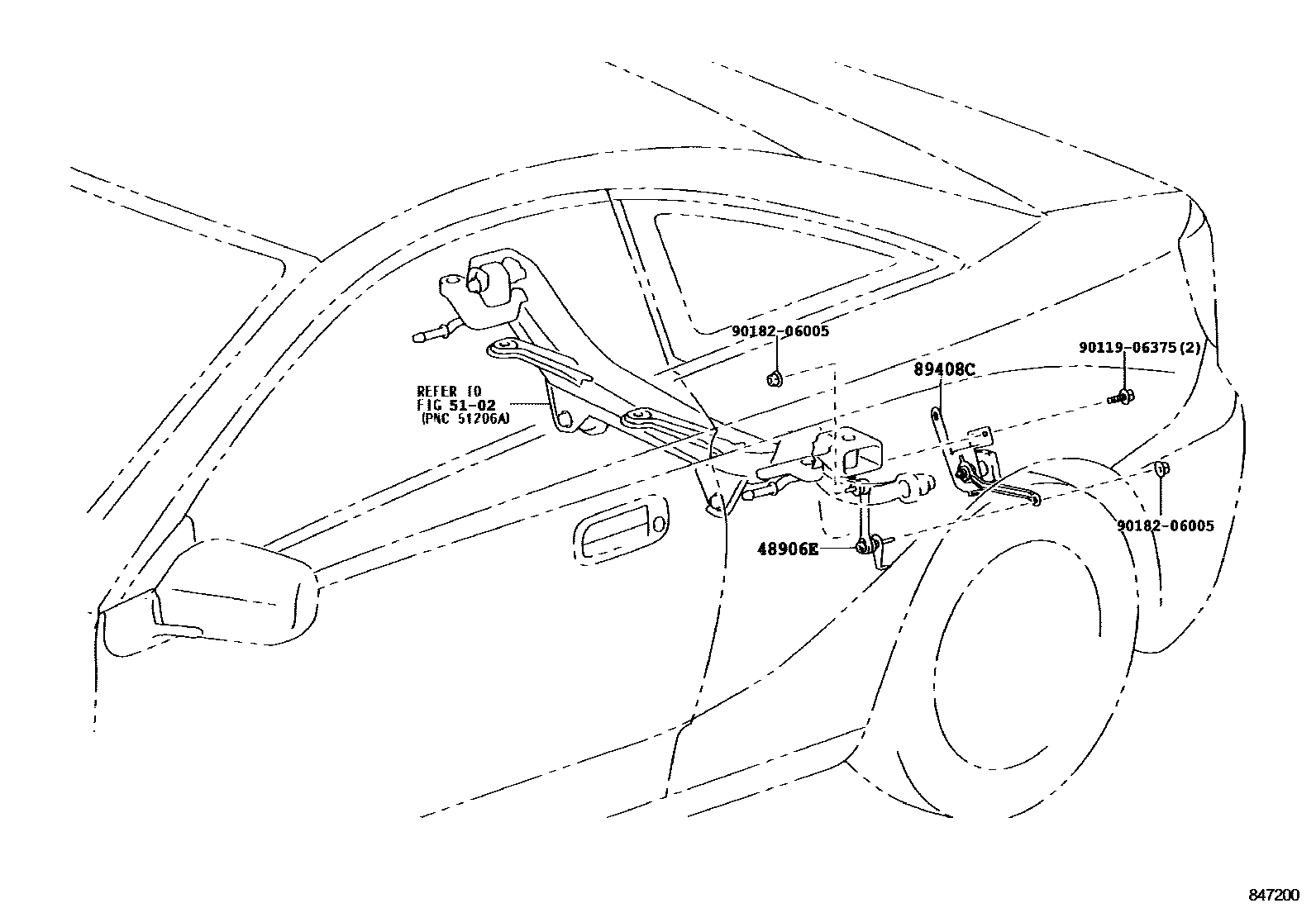

5 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota CELICA

This section contains 5 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota CELICA. Key components include: LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR, SUSPENSION CROSSMEMBER & UNDER COVER, SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH.
