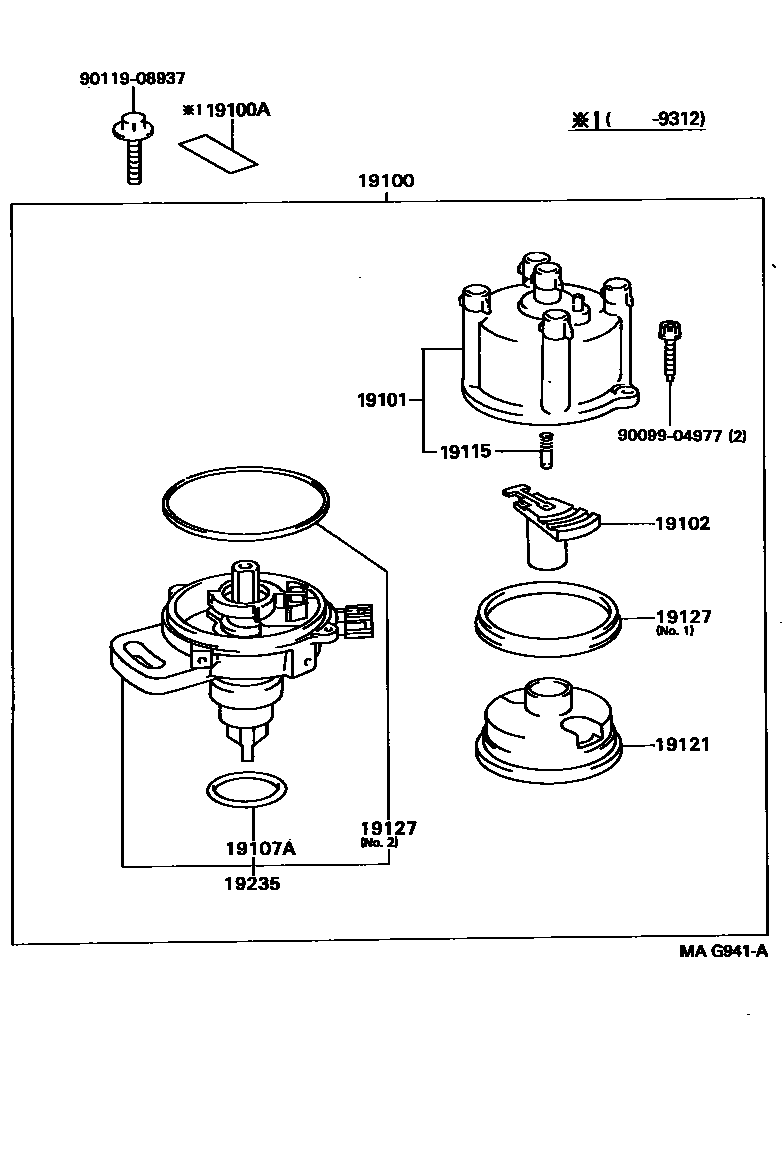

Toyota CELICA — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-74081i3SFE..ST202,203199309-199606

main19100-88460i3SG#..ST202,205199309-199712

19100ATAPE, SEALING

main90919-24004i3S#..ST20#199309-199312

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74150i3SFE..ST202,203199309-199606

main19101-88460i3SG#..ST202,205199309-199712

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE..ST202,203199309-199606

sub19102-11370

main19102-74040i3SG#..ST202,205199309-199712

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i3SGTE..ST205199712

main90099-14091i3SFE..ST202,203199309-199508

main90099-14127i3SFE..ST202,203199508-199606

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i3SGTE..ST205199712

19121COVER, DUST PROOF

main19121-74010i3SFE..ST202,203199309-199606

19127PACKING, DUST PROOF

main19127-74010i3SFE..ST202,203199309-199606

main19127-74040×2i3SGE..ST202199401-199508

19235HOUSING, DISTRIBUTOR

main19235-74160i3SFE..ST202,203199309-199606

main19235-88040i3SG#..ST202,205199309-199712

9009904977

main90099-04977

9011908937

main90119-08937

11 parts on this diagram · 2 diagrams in section
