EPC Data

Toyota CELICA — DISTRIBUTOR

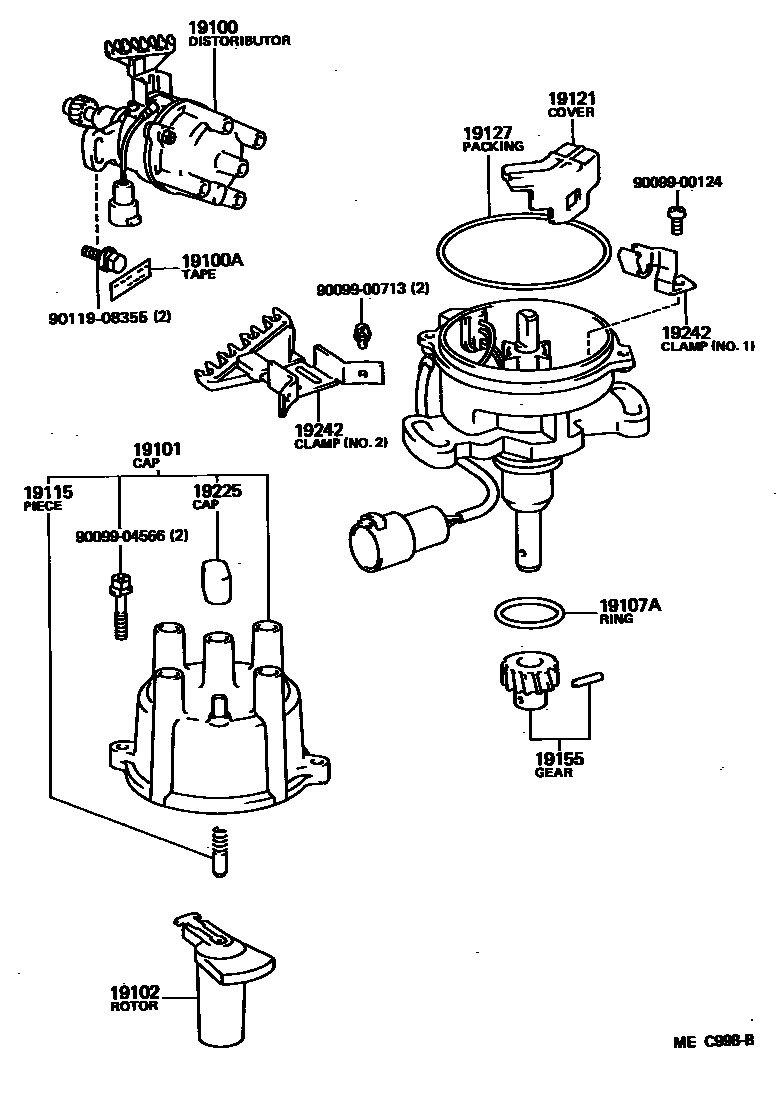

Parts diagram
19100DISTRIBUTOR ASSY
main19030-63010i198107-198212
main19030-63011i198212-198507
main19060-88260i198107-198308
main19100-16040i198308-198507
sub19100-16060
main19100-28090i198107-198308
main19100-41240i198308-198512
main19100-41250i198202-198308
main19100-43061i198107-198308
main19100-43120i198308-198512
main19100-70020i198107-198308
main19100-70030i198308-198501
main19100-70070i198501-198512
main19100-88272i198107-198109
main19100-88273i198109-198208
main19100-88280i198210-198507
main19100-88300i198208-198210
main19100-88301i198210-198512
19100ATAPE, SEALING
main90919-24004i198107-198512
sub90919-24003
19101CAP SUB-ASSY, DISTRIBUTOR
main19101-16040i198308-198507
main19101-25070i198107-198308
main19101-41240i198308-198512
main19101-41250i198202-198308
main19101-43060i198110-198401
main19101-63010i198107-198308
sub90099-04977
main19101-63011i198308-198507
main19101-70010i198107-198110
main19101-70011i198401-198512
main19101-88280i198210-198507
19102ROTOR SUB-ASSY, DISTRIBUTOR
main19102-16040i198308-198507
main19102-26150i198107-198301
sub19102-26151
main19102-33012i198301-198308
main19102-41240i198308-198512
main19102-41250i198202-198308
main19102-43060i198107-198308
main19102-43110i198308-198506
main19102-43120i198506-198512
main19102-63010i198107-198507
sub19102-73021
main19102-70010i198107-198501
main19104-88280i198210-198507
19107ARING, O, DISTRIBUTOR HOUSING
main90099-14018i198107-198512
sub90099-14088
main90099-14020i198107-198507
sub90099-14090
main90099-14051i198210-198507
sub90099-14105
main96710-04030i198308-198409
main96711-35030i198409-198507
19115PIECE, DISTRIBUTOR CAP, CENTER
main19115-50010×2i198308-198512
main19115-63010×2i198308-198501
main19115-71010×2i198501-198507
main19115-88280i198308-198512
19121COVER, DUST PROOF
main19121-16040i198308-198507
main19121-27020i198107-198308
main19121-63010i198107-198507
NO.1
main19121-63020i198107-198212
NO.2
main19121-63040i198212-198507
NO.2
main19121-88260i198107-198308
NO.2
main19121-88261i198107-198308
NO.1
19127PACKING, DUST PROOF
main19127-15010i198107-198308
main19127-15021i198308-198507
main19127-45190i198210-198507
main19127-52020i198107-198512
sub19127-61240
main19127-52050i198202-198308
main19127-63010i198107-198507
NO.1
main19127-63020i198107-198507
NO.2
main19127-88251i198107-198208
19155GEAR, SPIRAL, DISTRIBUTOR
main19195-16040i198308-198507
main19195-25011i198107-198308
main19195-33011i198107-198507
main19195-43060i198107-198512
main19195-45190i198202-198512
main19195-70010i198107-198512
main19195-88220i198107-198308
main19195-88300i198208-198512
19225CAP, RUBBER
main19225-16100i198410-198507
main19225-25070i198107-198308
main19225-38011i198308-198410
main19225-41140i198107-198512
19242CLAMP, CORD
main19242-16030i198308-198507
NO.1
main19242-16040i198308-198507
NO.2
main19242-26231i198107-198308
main19242-26250i198107-198308
main19242-43050i198308-198512
main19242-61102i198202-198308
main19242-63010i198107-198507
main19242-70031i198308-198501
main19242-70070i198501-198512
main19242-88272i198107-198201
main19242-88273i198201-198208
main19242-88300i198208-198512
main90929-01042i198308-198512
9009900124
main90099-00124
9009900713
main90099-00713
9009904566
main90099-04566
9011908355
main90119-08355

15 parts on this diagram · 14 diagrams in section
