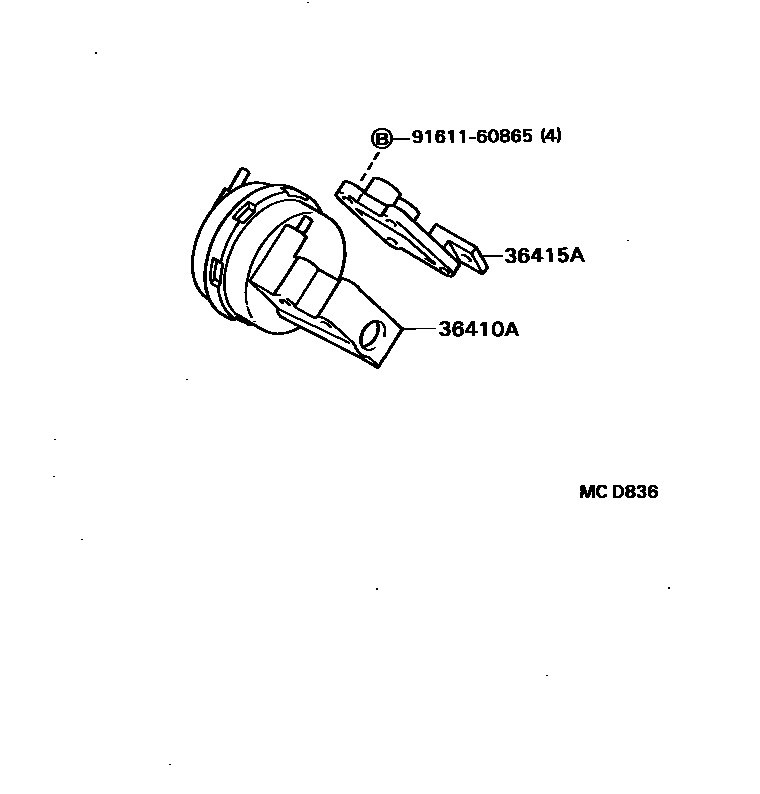

Toyota CELICA — DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

36410AGASKET (FOR DIAPHRAGM CYLINDER)

36415ACOVER, TRANSFER VACUUM ACTUATOR

main36415-20010i198610-198708

9161160865

main91611-60865

3 parts on this diagram · 1 diagram in section

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR for Toyota CELICA

This section contains 3 genuine Toyota parts for the DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR system of the Toyota CELICA. Key components include: GASKET (FOR DIAPHRAGM CYLINDER), COVER, TRANSFER VACUUM ACTUATOR.
