Toyota CELICA — COWL PANEL & WINDSHIELD GLASS

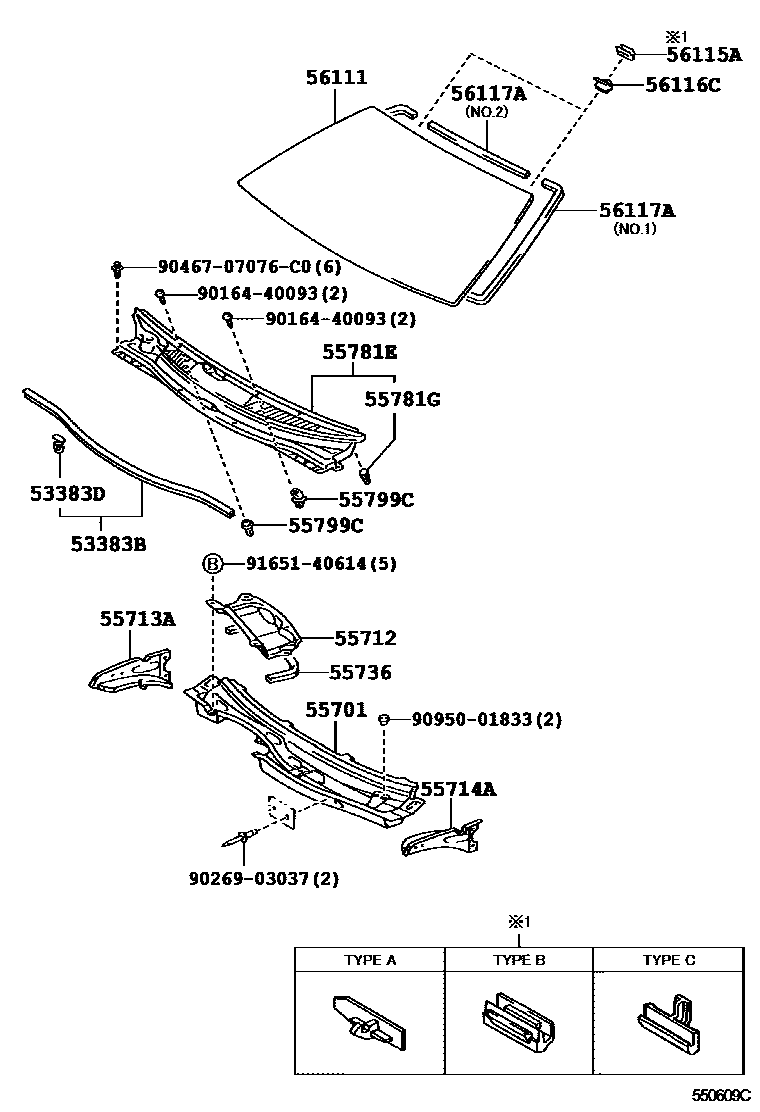

Parts diagram

53383BSEAL, HOOD TO COWL TOP

main53383-20200i200208-200405

main53383-20201i200405

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-10146×6i199908-200208

55701PANEL SUB-ASSY, COWL

main55700-2B170i199908-200208

main55700-2B171i200403

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-20090i199908-200208

55713APANEL, COWL TOP SIDE, RH

main55713-20160i199908-200208

55714APANEL, COWL TOP SIDE, LH

main55714-20160i199908-200208

55736SEAL, WATER GUARD PLATE

main55736-20040i199908-200208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20260i199908-200208

main55708-20270i200208

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67771-32150×2i199908-200208

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010×2i200208

main55799-20060×2i200208

56111GLASS, WINDSHIELD

main56101-20030i199908-200208

main56101-20060i200208

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200208

main56115-30100×2i199908-199912

main56115-33040×2i199908-199910

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i199908-200208

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010i199908-200208

main56118-20060i200208

9016440093

main90164-40093

9026903037

main90269-03037

9046707076C0

main90467-07076C0

9095001833

main90950-01833

9165140614

main91651-40614

19 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CELICA

This section contains 19 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELICA. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL, COWL TOP OUTSIDE, FRONT, PANEL, COWL TOP SIDE, RH.
