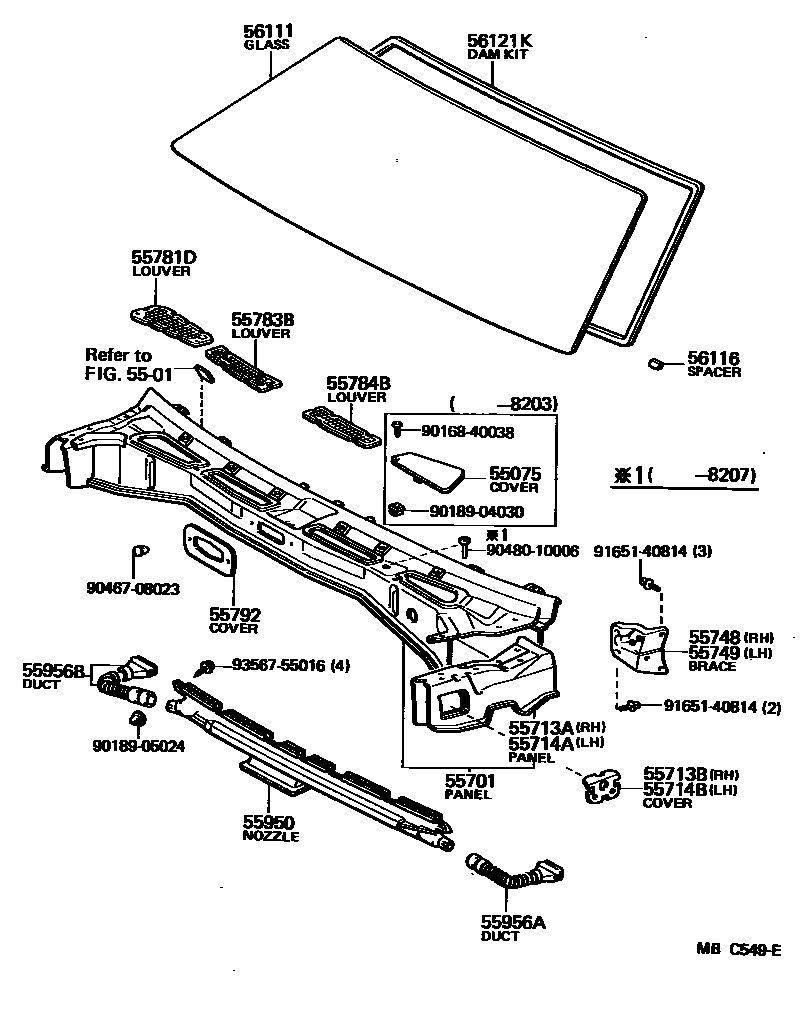

Toyota CELICA — COWL PANEL & WINDSHIELD GLASS

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55792-14030i198107-198203

55701PANEL SUB-ASSY, COWL

main55700-14590i198107-198507

main55700-14620i198107-198512

55713APANEL, COWL TOP SIDE, RH

main55713-14070i198107-198512

main55713-14080i198107-198408

main55713-14090i198408-198507

55713BCOVER, COWL SIDE PANEL HOLE, RH

main62161-14010i198107-198512

55714APANEL, COWL TOP SIDE, LH

main55714-14070i198107-198512

main55714-14080i198107-198408

main55714-14090i198408-198507

55714BCOVER, COWL SIDE PANEL HOLE, LH

main62161-14010i198309-198512

main62162-14010i198107-198309

55748BRACE, COWL TOP TO PILLAR, RH

main55748-14030i198107-198512

55749BRACE, COWL TOP TO PILLAR, LH

main55749-14060i198107-198512

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14120i198107-198512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14080i198107-198512

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14080i198107-198512

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-24010i198107-198305

55950NOZZLE ASSY, DEFROSTER

main55950-14090i198107-198512

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14030i198107-198512

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-14030i198107-198512

56111GLASS, WINDSHIELD

main56111-14310i198107-198512

T=5.0,*TZT

main56111-14320i198107-198507

T=5.3,*TL

main56111-14340i198107-198512

T=5.3,*TL,SUN SHADE

56116SPACER, WINDSHIELD GLASS

main56116-14020i198107-198512

LWR,20 X 7.5 X 11.5

main56116-14040i198107-198512

SIDE,20 X 8 X 9.2

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010i198107-198308

main04562-30040i198308-198512

9016840038

main90168-40038

9018904030

main90189-04030

9018905024

main90189-05024

9046708023

main90467-08023

9048010006

main90480-10006

9165140814

main91651-40814

9356755016

main93567-55016

26 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CELICA

This section contains 26 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELICA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, COVER SUB-ASSY, HEATER AIR DUCT HOLE, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, COVER, COWL SIDE PANEL HOLE, RH.
