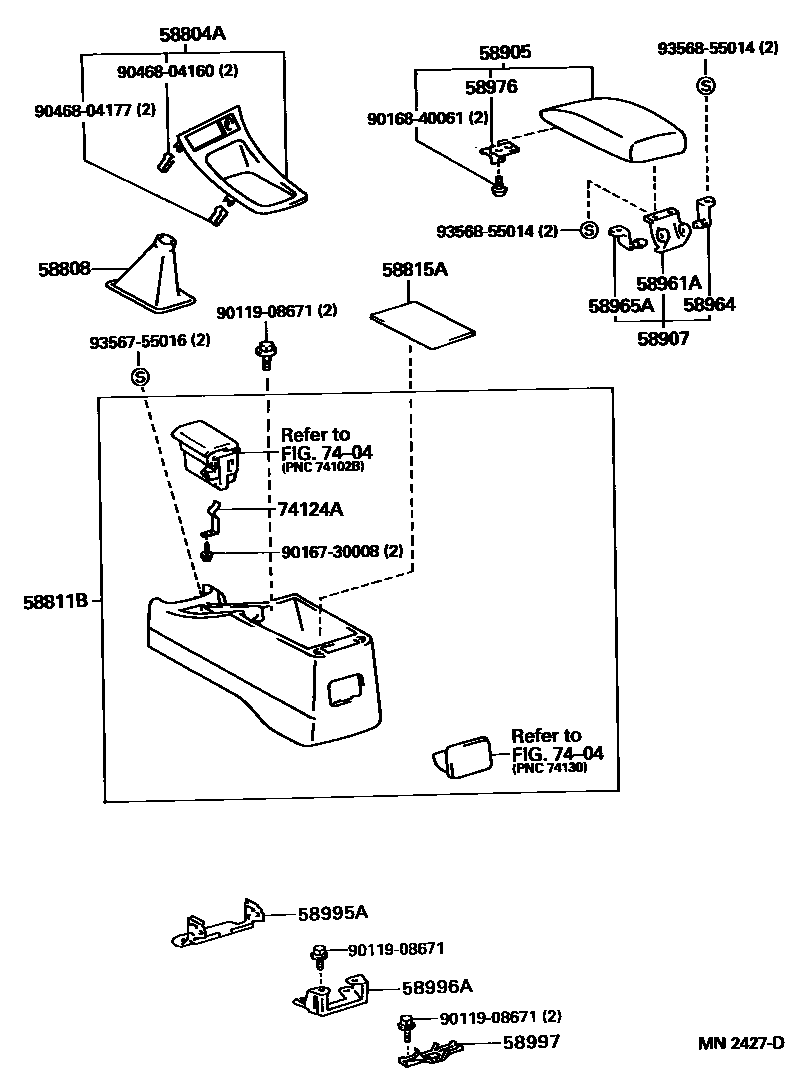

Toyota CELICA — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20150iST202,203..ATM199309-199712

main58804-20160-C0iST20#..MTM199309-199712

BLACK,TRIM2#

main58804-20250iST202..ATM199712

main58804-20280iST20#..MTM199712

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20120-C0iST20#..MTM199309-199908

BLACK,TRIM2#

58811BBOX, CONSOLE

main58801-20230-C0iST20#199309-199508

BLACK,TRIM2#

main58801-20250-C0iST20#..LB199508-199512

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-20040iST20#199309-199508

main58815-20050iST20#..LB199508-199512

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20220-C0iST20#199309

BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-20030-C0iST20#199309

BLACK,TRIM2#

sub58907-12050

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-20030iST20#199309

sub58907-12050

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20030-C0iST20#199309

BLACK,TRIM2#

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20040-C0iST20#199309

BLACK,TRIM2#

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iST20#199309

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20070iST20#..MTM199309

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20070iST20#..LB199508-199512

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20050iST20#199309

7404

74124ASPRING, ASH RECEPTACLE

main74124-20120iST20#199309

9011908671

main90119-08671

9016730008

main90167-30008

9016840061

main90168-40061

9046804160

main90468-04160

9046804177

main90468-04177

9356755016

main93567-55016

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
