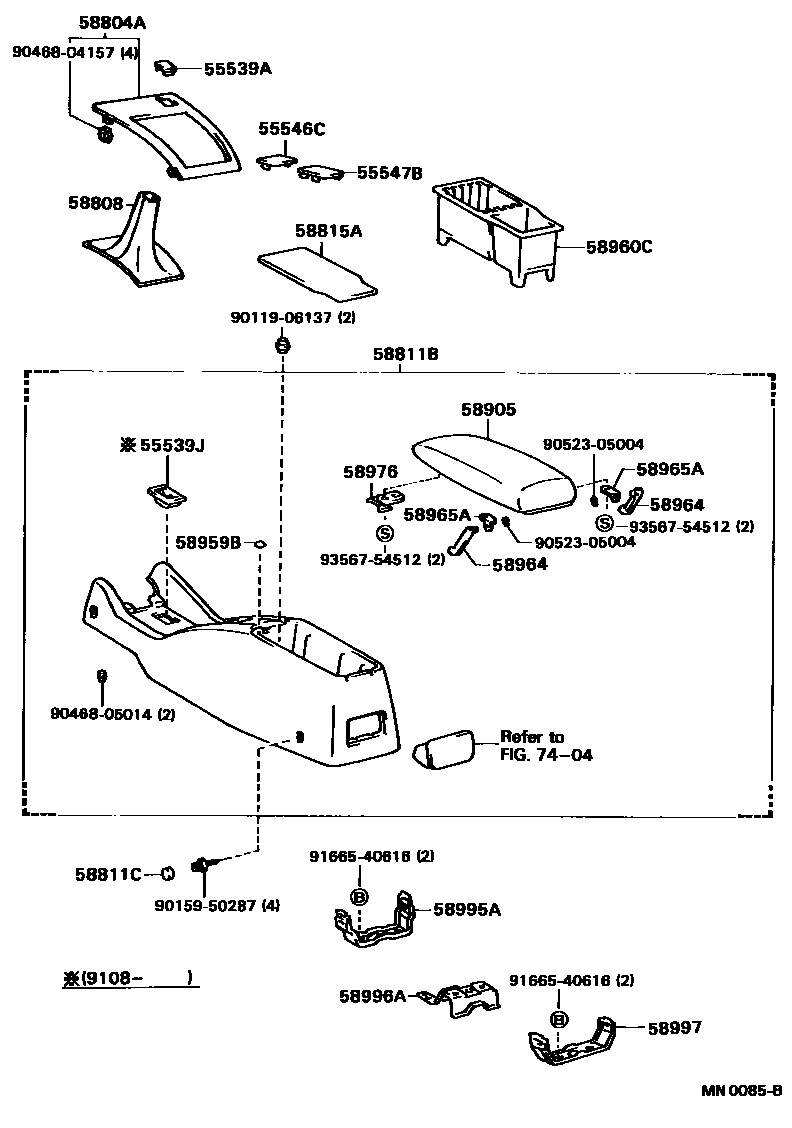

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20080-03iST18#..GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

SHADOW GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

sub55539-12130

sub55539-32010

55539JCOVER, SPARE SWITCH HOLE

main55539-32030-B0iST18#199109-199309

SHADOW GRAY,TRIM1#

55546CCOVER, POWER SEAT SWITCH HOLE

main55546-20020-03iST185..GT4198910-199108

GT-FOUR RC OR GT-FOUR V,SHADOW GRAY,TRIM1#

main55546-20020-04iST182,183..SR,ZR198909-199108

DARK BLUE,TRIM8#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20040-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55547-20040-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20040-03iST182,183..ATM198909-199309

SHADOW GRAY,TRIM1#

main58804-20040-04iST182,183..LB..ATM198909-199108

DARK BLUE,TRIM8#

main58804-20050-03iST18#..MTM198909-199309

SHADOW GRAY,TRIM1#

main58804-20050-04iST182,183..MTM..(GTR,SR,ZR)198909-199108

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20080-03iST18#..MTM198909-199001

SHADOW GRAY,TRIM1#

main58808-20080-04iST182,183..MTM198909-199001

DARK BLUE,TRIM8#

main58808-20081-03iST18#..MTM199001-199008

SHADOW GRAY,TRIM1#

main58808-20081-04iST182,183..MTM..(GTR,SR,ZR)199001-199008

DARK BLUE,TRIM8#

main58808-20082-03iST18#..MTM199008-199309

SHADOW GRAY,TRIM1#

main58808-20082-04iST182,183..MTM..(GTR,SR,ZR)199008-199108

DARK BLUE,TRIM8#

58811BBOX, CONSOLE

main58801-20200-03iST182,183..SR198909-199108

SHADOW GRAY,TRIM1#

main58801-20200-04iST182,183..SR198909-199108

DARK BLUE,TRIM8#

main58801-20201-P0iST182..SR199108-199309

SHADOW GRAY,TRIM1#

main58801-20210-03iST182,183..ACT,CV,GTR,ZR198909-199108

SHADOW GRAY,TRIM1#

main58801-20210-04iST182,183..GTR,ZR198909-199108

DARK BLUE,TRIM8#

main58801-20211-P0iST182,183..CV,GTR,ZR199109-199309

SHADOW GRAY,TRIM1#

main58801-20220-03iST185198910-199108

SHADOW GRAY,TRIM1#

main58801-20221-P0iST185199108-199309

SHADOW GRAY,TRIM1#

58811CCAP(FOR CONSOLE)

main90339-10009-03×4iST18#198909-199309

SHADOW GRAY,TRIM1#

main90339-10009-04×4iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

58815ACARPET, CONSOLE BOX

main58815-20020-01iST182,183..CV,SR199108-199109

BLACK,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20120-03iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

SHADOW GRAY,TRIM1#

main58905-20120-04iST182,183..GTR,ZR198909-199108

DARK BLUE,TRIM8#

main58951-20110-03iST182,183..SR198909-199309

SHADOW GRAY,TRIM1#

main58951-20110-04iST182,183..SR198909-199108

DARK BLUE,TRIM8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iST18#198909-199309

58960CHOLDER ASSY, CASSETTE CASE

main58960-20010iST182,183..GTR,SR198909-199008

main58960-20020iST185..GT4,GT4RC198910-199309

main58960-20030iST182,183..GTR,ZR199008-199108

main58960-20040iST185..GT4199008-199108

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iST18#198909-199309

main58964-90K00iST18#198909-199309

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iST182,183..SR198909-199309

main58965-20020iST182,183..SR198909-199309

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iST18#198909-199309

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20050iST182,183198909-199309

main58995-20060iST185198910-199309

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20050iST182,183198909-199309

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20020iST182,183198909-199309

main58997-20040iST185198910-199309

7404

9011906137

main90119-06137

9015950287

main90159-50287

9046804157

main90468-04157

9046805014

main90468-05014

9052305004

main90523-05004

9166540616

main91665-40616

9356754512

main93567-54512

26 parts on this diagram · 2 diagrams in section
