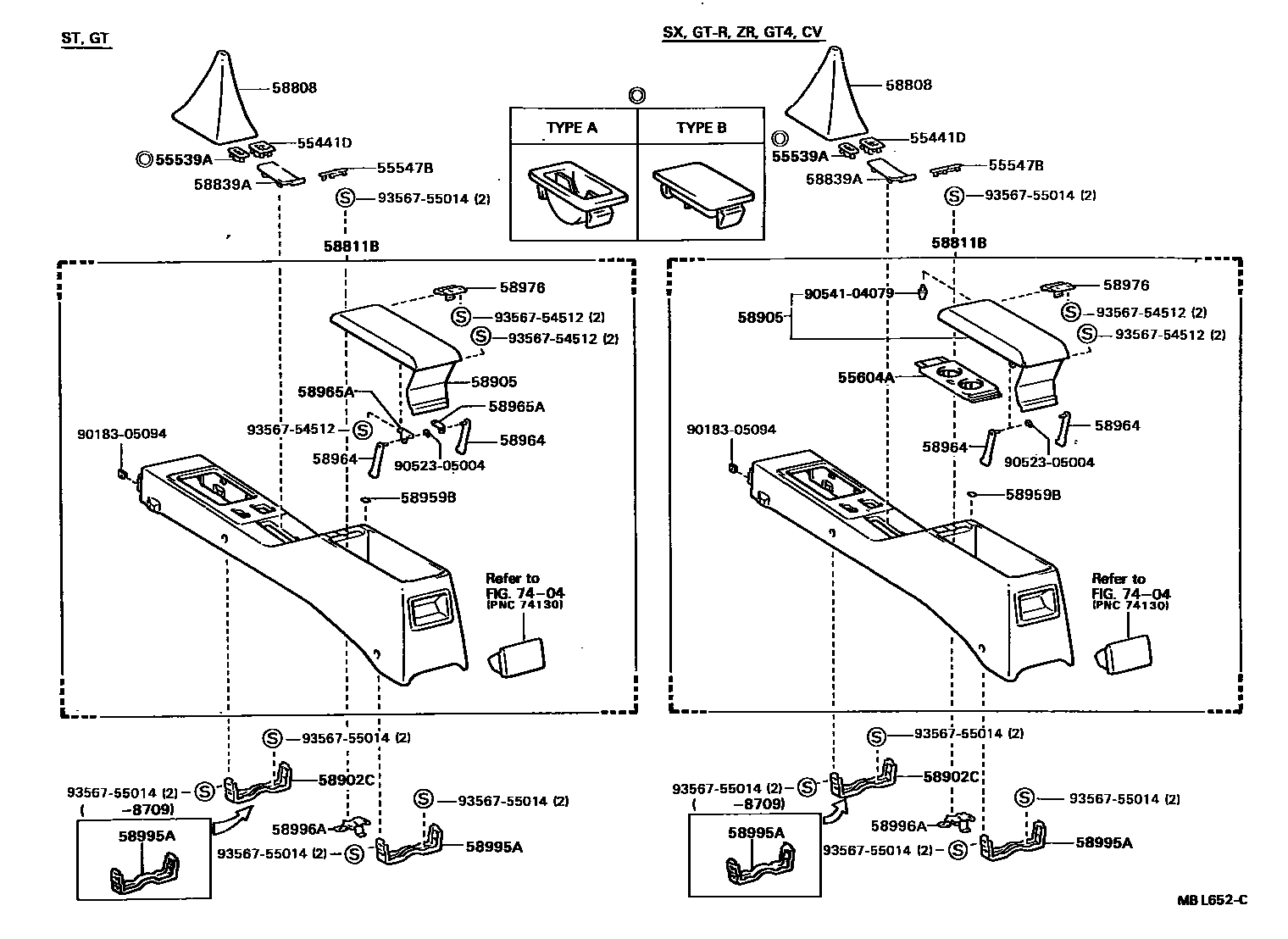

Toyota CELICA — CONSOLE BOX & BRACKET

55441DBOX, INSTRUMENT PANEL COIN

main55441-20150-01iST160,162,163..LB198708-198908

BLACK,TRIM2#

main55441-20150-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-04iST160;ST163..4FC;ST162,163..5F..(GT,SX,ZR)198708-198908

main55539-20020-11iST162..5F;ST160,163,165198708-198908

main55539-20030-01iST160,162,163..LB198708-198908

sub55539-32010

main55539-20030-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

sub55539-32010

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-01iST16#198708-198908

BLACK,TRIM2#

main55547-20020-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20010iST16#..GT4,SX,ZR198708-198908

GT-R

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20050-01iST16#..5F198708-198908

BLACK,TRIM2#

main58808-20050-04iST163..5F..SX;ST160,162..LB..5F198708-198908

DEEP BLUE,TRIM8#

58811BBOX, CONSOLE

main58801-20140-01iST160,162,163..GT,ST198708-198908

BLACK,TRIM2#

main58801-20140-04iST163..4FC..ST;ST160,162..GT,ST198708-198908

DEEP BLUE,TRIM8#

main58801-20150-01iST160,162,163..SX,ZR198708-198908

BLACK,TRIM2#

main58801-20150-04iST160,162,163..SX,ZR198708-198908

GT-R,DEEP BLUE,TRIM8#

main58801-20170-01iST165198710-198908

BLACK,TRIM2#

main58801-20180-01iST162..CV198710-198908

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-20020-01iST16#198708-198908

BLACK,TRIM2#

main58839-20020-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-20040iST160,162,163198709-198908

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20070-01iST16#..GT4,SX,ZR198708-198908

BLACK,TRIM2#

main58905-20070-04iST160,162,163..SX,ZR198708-198908

GT-R,DEEP BLUE,TRIM8#

main58951-20070-01iST160,162,163..GT,ST198708-198908

BLACK,TRIM2#

main58951-20070-04iST163..4FC..ST;ST160,162..GT,ST198708-198908

DEEP BLUE,TRIM8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iST16#198708-198908

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iST160,162,163..GT,ST198708-198908

main58964-30040iST16#..GT4,SX,ZR198708-198908

main58964-90K00iST16#198708-198908

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iST160,162,163..GT,ST198708-198908

main58965-20020iST160,162,163..GT,ST198708-198908

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iST16#198708-198908

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20030×2iST16#198708-198709

main58995-20040iST165198710-198908

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20030iST160,162,163198708-198908

main58996-20040iST165198710-198908

7404

9018305094

main90183-05094

9052305004

main90523-05004

9054104079

main90541-04079

9356754512

main93567-54512

9356755014

main93567-55014

21 parts on this diagram · 1 diagram in section
