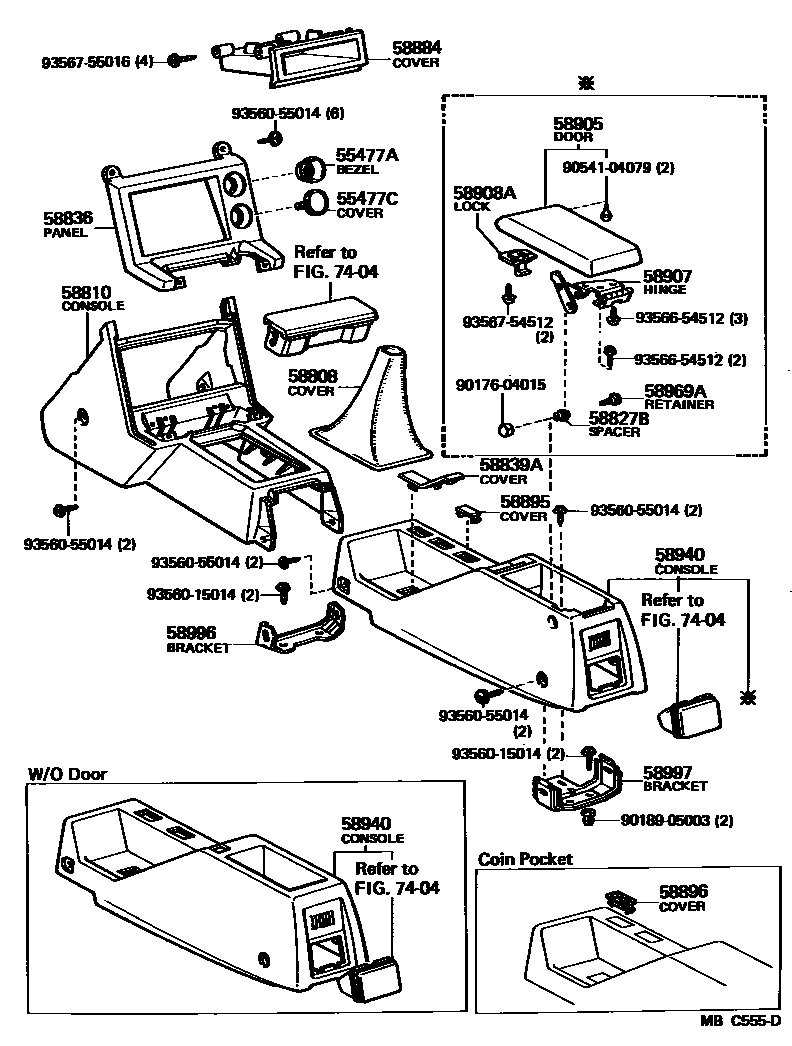

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0002 1

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55477CCOVER, COOLER SWITCH HOLE

main55477-10010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14100-01iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

BLACK,BLACK,TRIM2#

main58808-14100-02iGA61,MA61..5F198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58808-14100-04iGA61,MA61,RA63,SA60,TA61..LB..5F..(G,GT,L,S,ST)198107-198308

BLUE,BLUE,TRIM8#

main58808-14100-06iTA63..5F..(ST,SX)198107-198308

DARK BROWN,BROWN,TRIM4#

main58808-14100-12iGA61,MA61..5F198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58810CONSOLE ASSY

main58811-14180-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main58811-14180-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58811-14180-04iTA63..LB..(ST,SX)198107-198308

BLUE,BLUE,TRIM8#

main58811-14180-06iTA63..ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

main58811-14180-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iGA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX198107-198308

58836PANEL, CONSOLE, UPPER FRONT

main58804-14010iGA61,MA6#198107-198308

main58804-14011iGA61,MA6#198308-198512

main58821-14070iRA63,SA60,TA6#198107-198308

main58821-14071iAA63,SA60,TA63198308-198507

58839ACOVER, CONSOLE BOX HOLE

main58839-14010-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

main58839-14010-04iRA63,SA60,TA61..LB..(GT,ST)198107-198308

BLUE,BLUE,TRIM8#

main58839-14010-06iTA63..ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

58884COVER, STEREO OPENING

main55521-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58895COVER, SWITCH HOLE, NO.1

main55539-24010-01×2iGA61,MA63198203-198512

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-20030

main55539-24010-02×2iGA61,MA63198203-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-24010-04×2iGA61,MA63198203-198512

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-20030

main55539-24010-06×2iTA63..ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-20030

main55539-24010-12×2iGA61,MA63198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32010

sub55539-20030

58896COVER, SWITCH HOLE, NO.2

main55539-14030-01iGA61,MA6#,RA63,SA60,TA6#198107-198208

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55539-14030-02iGA61,MA6#198107-198208

W/COIN POCKET,TERRA COTTA,RED/MAROON,TRIM3#

main55539-14030-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198208

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55539-14030-06iTA63..SX198107-198208

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

main55539-14031-01iAA63,GA61,MA6#,SA60,TA6#198208-198512

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55539-14031-02iGA61,MA6#198208-198308

W/COIN POCKET,TERRA COTTA,RED/MAROON,TRIM3#

main55539-14031-04iGA61,MA6#,SA60,TA61..LB..(G,GT,L,S,ST)198208-198308

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55539-14031-06iSA60,TA61..GT,ST198208-198308

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

main55539-14031-12iGA61,MA6#198308-198512

W/COIN POCKET,DEEP MAROON,RED/MAROON,TRIM3#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14040-01iSA60..SX198308-198507

GT-R,GT-TR PACKAGE,BLACK,BLACK,TRIM2#

main58905-14040-04iRA63,TA61..LB..GT198107-198308

BLUE,BLUE,TRIM8#

main58905-14040-06iSA60..SX198308-198507

GT-R,GT-TR PACKAGE,DARK BROWN,BROWN,TRIM4#

main58905-24010-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main58905-24010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58905-24010-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main58905-24010-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iAA63,TA63198308-198507

GT-R,GT-TR PACKAGE

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14010iGA61,MA6#198107-198512

main58908-22010iSA60..SX198308-198507

GT-R,GT-TR PACKAGE

58940CONSOLE ASSY, REAR

main58901-14040-01iAA63,SA60,TA63..GT,GTT,ST,SV198308-198507

BLACK,BLACK,TRIM2#

main58901-14040-04iAA63,SA60,TA63..GT,GTT,ST198308-198507

BLUE,BLUE,TRIM8#

main58901-14040-06iAA63,SA60,TA63..GT,GTT,ST198308-198507

DARK BROWN,BROWN,TRIM4#

main58901-14050-01iSA60..SX198308-198507

GT-R,GT-TR PACKAGE,BLACK,BLACK,TRIM2#

main58901-14050-04iSA60..SX198308-198507

BLUE,BLUE,TRIM8#

main58901-14050-06iSA60..SX198308-198507

GT-R,GT-TR PACKAGE,DARK BROWN,BROWN,TRIM4#

main58901-24010-01iGA61,MA6#198107-198203

BLACK,BLACK,TRIM2#

main58901-24010-02iGA61,MA6#198107-198203

TERRA COTTA,RED/MAROON,TRIM3#

main58901-24010-04iGA61,MA6#198107-198203

BLUE,BLUE,TRIM8#

main58901-24011-01iGA61,MA6#198203-198512

BLACK,BLACK,TRIM2#

main58901-24011-02iGA61,MA6#198203-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58901-24011-04iGA61,MA6#198203-198512

BLUE,BLUE,TRIM8#

main58901-24011-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iAA63,TA63198308-198507

GT-R,GT-TR PACKAGE

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

7404

9017604015

main90176-04015

9018905003

main90189-05003

9054104079

main90541-04079

9356015014

main93560-15014

9356055014

main93560-55014

9356654512

main93566-54512

9356754512

main93567-54512

9356755016

main93567-55016

26 parts on this diagram · 2 diagrams in section
