Toyota CELICA — CLUTCH & RELEASE FORK

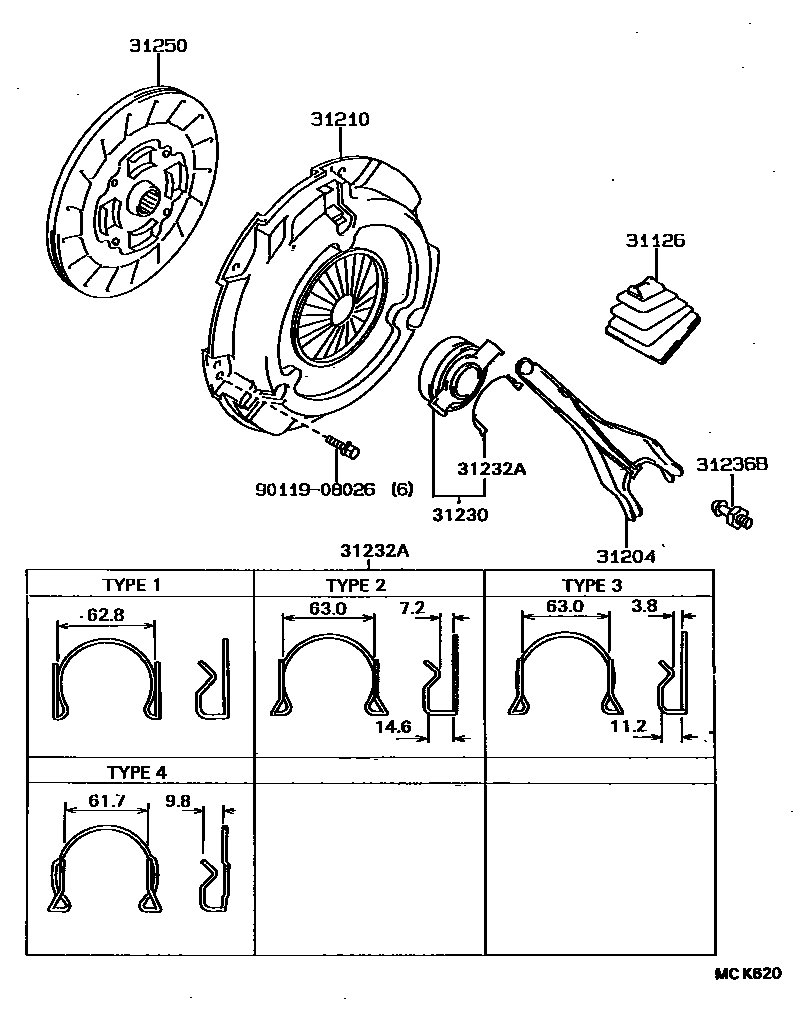

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i198708-198908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100i198710-198908

main31204-32010i198708-198908

31210COVER ASSY, CLUTCH

main31210-20211i198710-198906

main31210-20212i198906-198908

main31210-32030i198708-198712

main31210-32070i198708-198712

main31210-32071i198712-198808

main31210-32072i198808-198906

main31210-32073i198906-198908

main31210-32120i198712-198906

main31210-32121i198906-198908

31230BEARING ASSY, CLUTCH RELEASE

main31230-20160i198710-198809

main31230-20170i198809-198908

main31230-32020i198708-198908

31232ACLIP, RELEASE BEARING HUB

main31232-20020i198809-198908

TYPE 4

main31232-32010i198708-198908

main31232-32020i198708-198908

main31232-32030i198708-198908

31236BSUPPORT, RELEASE FORK

main31236-20060i198710-198908

main31236-30030i198708-198908

31250DISC ASSY, CLUTCH

main31250-20140i198710-198908

main31250-32025i198708-198712

main31250-32026i198712-198908

main31250-32041i198708-198908

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CELICA

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CELICA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
