Toyota CELICA — CLUTCH & RELEASE FORK

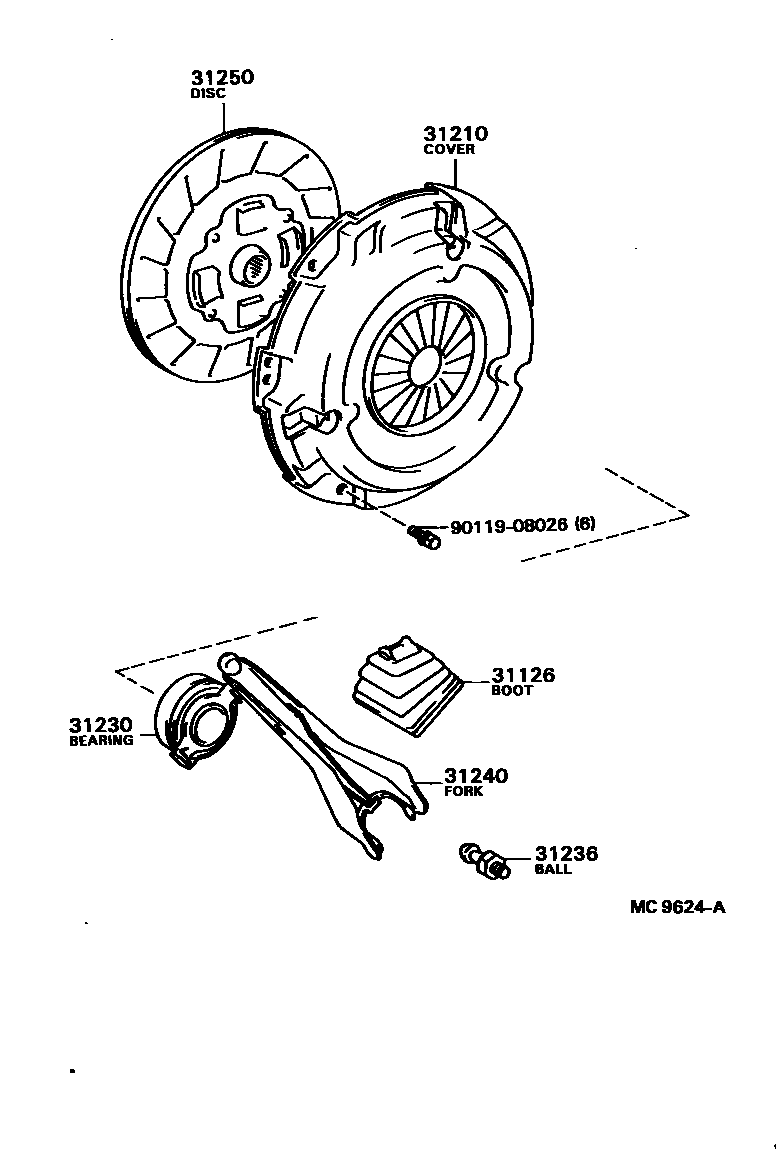

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12050i198508-198701
main31126-12051i198701-198708
main31126-32010i198508-198708
31210COVER ASSY, CLUTCH
main31210-12080i198508-198708
main31210-20210i198610-198708
sub31210-20211
main31210-32020i198508-198608
main31210-32030i198608-198708
sub31210-32120
main31210-32040i198508-198608
main31210-32070i198608-198708
sub31210-32071
31230BEARING ASSY, CLUTCH RELEASE
main31230-12110i198508-198708
sub31230-12111
main31230-20160i198610-198708
sub31230-20170
main31230-32020i198508-198708
sub31230-32100
31236BALL, RELEASE FORK
main31236-12011i198508-198708
main31236-20060i198610
main31236-30030i198508-198708
31240FORK ASSY, CLUTCH RELEASE
main31204-12050i198508-198708
main31204-20100i198610-198708
main31204-32010i198508-198708
31250DISC ASSY, CLUTCH
main31250-17010i198508-198708
sub31250-12290
main31250-20140i198610-198708
sub31250-20141
main31250-32024i198508-198609
main31250-32025i198609-198708
sub31250-32026
main31250-32041i198508-198708
sub31250-32042
9011908026
main90119-08026

7 parts on this diagram · 2 diagrams in section
