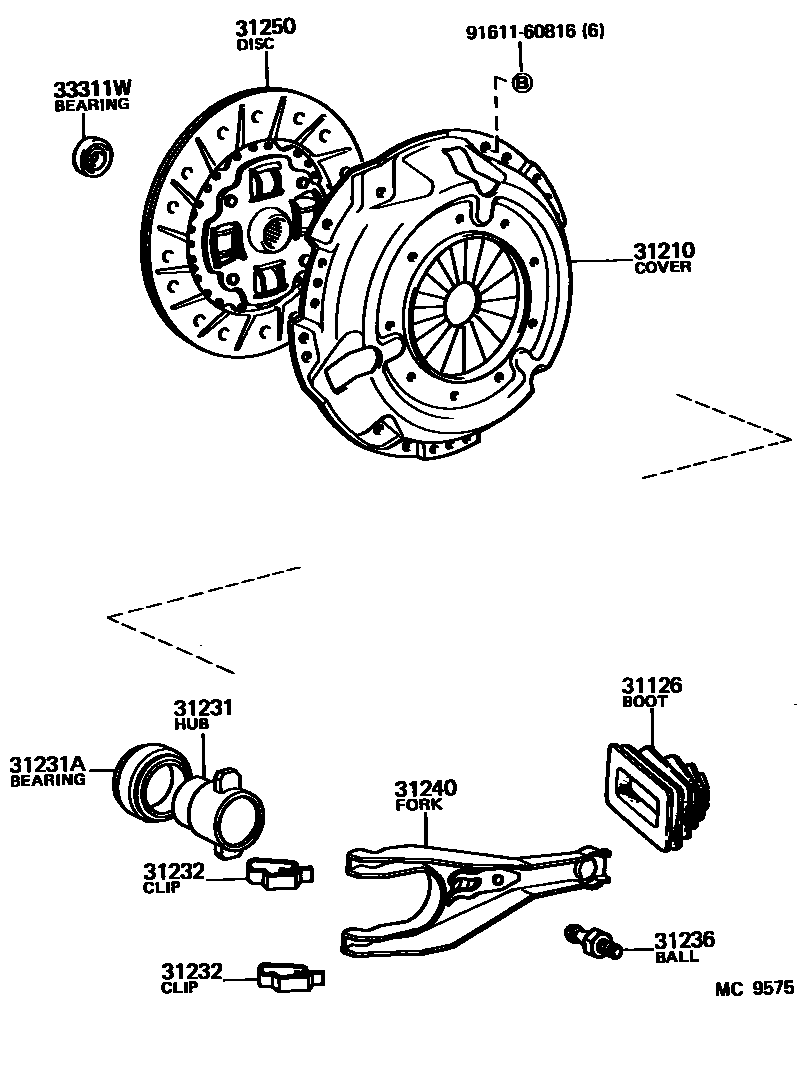

Toyota CELICA — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRA63198107-198208

main31126-20070iAA63,GA61,MA61,SA60,TA6#..MTM198107-198512

31210COVER ASSY, CLUTCH

main31210-12080iAA63198308-198507

main31210-14100iTA61198107-198308

sub31210-14101

main31210-14110iMA61..5F198107-198203

sub31210-14111

main31210-14120iMA61..5F198203-198208

main31210-14121iMA61..5F198208-198512

main31210-14130iGA61..GT198208-198509

sub31210-35090

main31210-20170iRA63198107-198208

sub31210-20171

main31210-22070iGA61..5F..(G,S)198509-198512

sub31210-30220

main31210-22080iGA61..GT198509-198512

sub31210-22100

main31210-24010iTA63,64..5F..(GTS,GTT)198210-198507

sub31210-24011

main31210-35042iSA60,TA63..MTM..(ST,SV,SX)198107-198507

sub31210-22120

main31210-36029iGA61..5F..(G,L,S)198107-198509

sub31210-36200

31231HUB, CLUTCH RELEASE BEARING

main31231-12050iAA63198308-198507

main31231-20081iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198507

main31231-20090iRA63,TA63,64..5F..(GT,GTS,GTT)198107-198507

main31231-36070iGA61,MA61..5F198107-198512

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31236BALL, RELEASE FORK

main31236-30060iAA63,GA61,MA61,RA63,SA60,TA6#..MTM198107-198512

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRA63198107-198208

sub31204-20072

main31204-20080iMA61,TA63..5F..(GT,ST,SX)198107-198512

main31204-20090iTA63,64..5F..(GTS,GTT)198210-198507

31250DISC ASSY, CLUTCH

main31250-12061iTA61198107-198208

main31250-12062iTA61198208-198308

sub31250-16040

main31250-12180iAA63198308-198312

main31250-12182iAA63198312-198409

main31250-12183iAA63198409-198412

main31250-12184iAA63198412-198507

sub31250-12290

main31250-14130iMA61..5F198107-198512

sub31250-36290

main31250-14140iSA60,TA63..MTM..(ST,SV,SX)198107-198502

main31250-14141iSA60..5F198502-198507

sub31250-14142

main31250-14150iTA63,64..5F..(GTS,GTT)198305-198507

sub31250-28030

main31250-22053iRA63198107-198208

sub31250-22054

main31250-22101iGA61..5F..(G,L,S)198107-198512

sub31250-22102

main31250-22150iGA61..GT198208-198508

main31250-22151iGA61..GT198508-198512

sub31250-22152

main31250-30200iTA63,64..5F..(GTS,GTT)198210-198305

sub31250-30330

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMA61,RA63..5F198107-198512

sub90363-12024

main90363-12003iAA63,GA61,TA6#..5F198107-198512

main90363-12004iSA60..MTM198107-198507

9161160816

main91611-60816

10 parts on this diagram · 4 diagrams in section
