Toyota CELICA — BATTERY & BATTERY CABLE

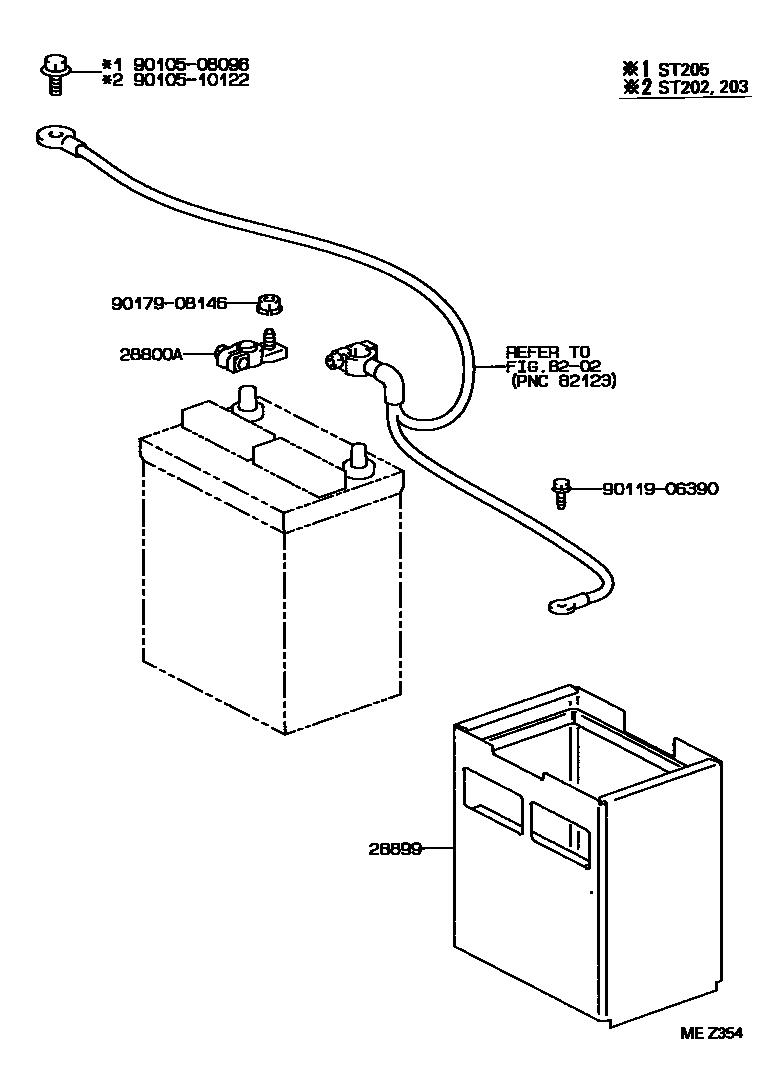

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i199309-199709

main90982-05030i199508-199512

main90982-05034i199709

main90982-05035i199709

28899INSULATOR, BATTERY

main28899-46020i199712

main28899-74110i199309-199508

main28899-74120i199309-199508

main28899-74130i199508-199512

main28899-74150i199508-199712

main28899-74160i199508-199601

main28899-74170i199512-199712

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CELICA

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: TERMINAL, BATTERY POSITIVE, INSULATOR, BATTERY, WIRING & CLAMP.
