Toyota CELICA — ARMREST & VISOR

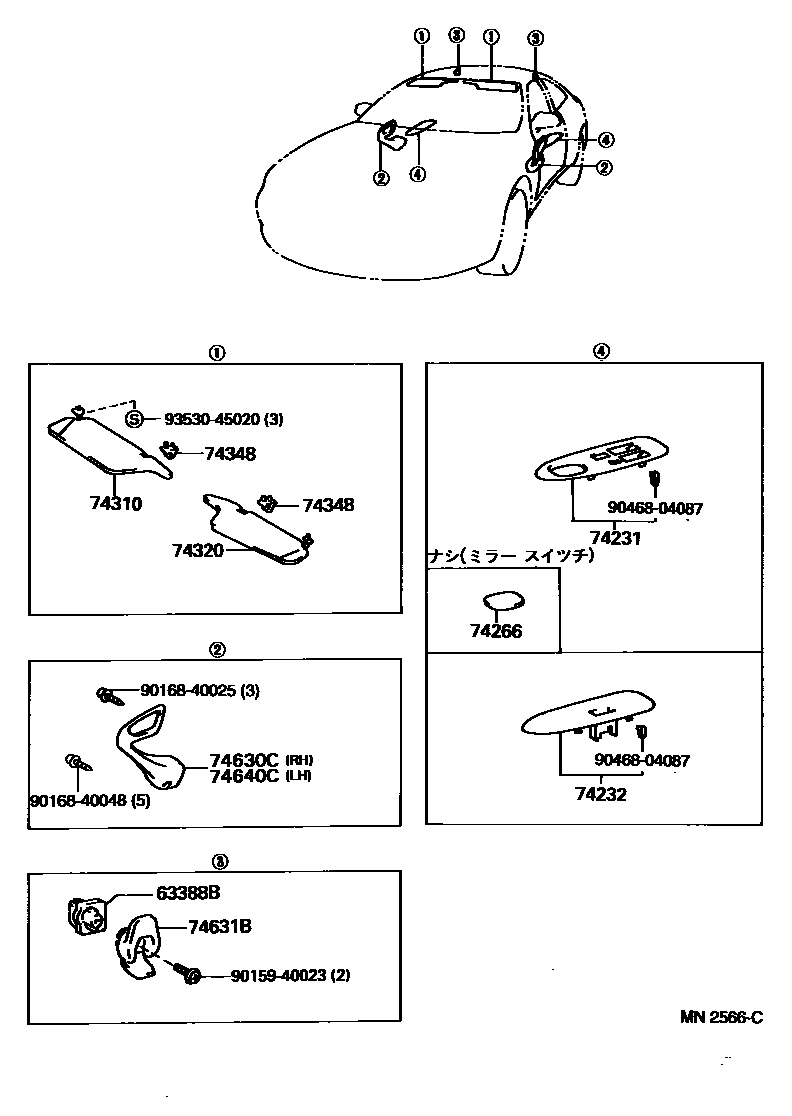

Parts diagram
63388BSTOPPER, ROOF HEADLINING TRIM CLIP
main63388-20030×2i199309
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-20380-C0i199309
BLACK,TRIM2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-20260-C0i199309
BLACK,TRIM2#
74266CAP, DOOR ARMREST, RH
main74266-20070-C0i199309-199508
BLACK,TRIM2#
74310VISOR ASSY, RH
main74310-2B420-B0i199309-199405
SHADOW GRAY,TRIM2#
main74310-2B420-B1i199405-199410
LT. GRAY,TRIM2#
main74310-2B421-B1i199410-199508
LT. GRAY,TRIM2#
main74310-2B560-C0i199408-199512
BLACK,TRIM2#
main74310-2B740-B0i199508-199606
LT. GRAY,TRIM2#
main74310-2B750-C0i199512-199605
BLACK,TRIM2#
main74310-2B810-C1i199605-199708
BLACK,TRIM2#
main74310-2B840-B0i199606-199708
LT. GRAY,TRIM2#
main74310-2B841-B0i199708-199801
LT. GRAY,TRIM2#
main74310-2D030-C1i199708
main74310-2D160-B0i199801
LT. GRAY,TRIM2#
74320VISOR ASSY, LH
main74320-2B290-B0i199309-199405
SHADOW GRAY,TRIM2#
main74320-2B290-B1i199405-199410
LT. GRAY,TRIM2#
main74320-2B291-B1i199410-199508
LT. GRAY,TRIM2#
main74320-2B291-B2i199508-199606
LT. GRAY,TRIM2#
main74320-2B390-C0i199408-199512
BLACK,TRIM2#
main74320-2B590-C0i199512-199605
BLACK,TRIM2#
main74320-2B600-B0i199508-199606
main74320-2B610-C1i199605-199708
main74320-2B620-C0i199512-199605
main74320-2B700-C1i199605-199712
BLACK,TRIM2#
main74320-2B720-B0i199606-199708
LT. GRAY,TRIM2#
main74320-2B721-B0i199708-199801
LT. GRAY,TRIM2#
main74320-2B770-C1i199708
main74320-2B880-B0i199801
LT. GRAY,TRIM2#
74348HOLDER, VISOR
main74348-12020-C0×2i199408-199905
BLACK,TRIM2#
sub74348-60010
sub74348-26020
main74348-12020-S3×2i199408-199512
LI.GRAY,TRIM2#
sub74348-60010
sub74348-26020
main74348-22020-B2×2i199309-199508
LI. GRAY,TRIM2#
main74348-22020-B6×2i199508-199908
LT.GRAY,TRIM2#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-20070-C0i199309
BLACK,TRIM2#
74631BHOOK, COAT
main74631-20060-22×2i199309
BLACK,TRIM2#
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-20070-C0i199309
SHADOW GRAY,TRIM2#
9015940023
main90159-40023
9016840025
main90168-40025
9016840048
main90168-40048
9046804087
main90468-04087
9353045020
main93530-45020

15 parts on this diagram · 1 diagram in section
