Toyota CELICA — ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-01i198708-198908

BLACK,TRIM2#

main74223-20030-04i198708-198908

DEEP BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-20030-01i198708-198908

BLACK,TRIM2#

main74224-20030-04i198708-198908

DEEP BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-01i198708-198908

BLACK,TRIM2#

main74225-20020-04i198708-198908

DEEP BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-01i198708-198908

BLACK,TRIM2#

main74225-20020-04i198708-198908

DEEP BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20141-01i198708-198908

BLACK,TRIM2#

main74231-20141-04i198708-198908

DEEP BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20141-01i198708-198908

BLACK,TRIM2#

main74232-20141-04i198708-198908

DEEP BLUE,TRIM8#

74266ACAP, DOOR ARMREST, NO.1

main74266-20060-01i198708-198908

BLACK,TRIM2#

main74266-20060-04i198708-198908

DEEP BLUE,TRIM8#

74267ACAP, DOOR ARMREST, NO.2

main74267-20040-01i198708-198908

BLACK,TRIM2#

main74267-20040-04i198708-198908

DEEP BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-20300-03i198708-198908

SHADOW GRAY,TRIM2#

main74310-20300-04i198708-198908

DEEP BLUE,TRIM8#

main74310-20460-03i198708-198908

SHADOW GRAY,SHADOW GRAY,TRIM2#

main74310-20460-03i198708-198908

main74310-20460-04i198708-198908

main74310-20761-01i198710-198908

BLACK,TRIM2#

74320VISOR ASSY, LH

main74320-20380-03i198708-198908

SHADOW GRAY,TRIM2#

main74320-20380-04i198708-198908

DEEP BLUE,TRIM8#

main74320-20430-03i198708-198908

SHADOW GRAY,TRIM2#

main74320-20430-03i198708-198908

main74320-20430-04i198708-198908

DEEP BLUE,TRIM8#

main74320-20430-04i198708-198908

main74320-20570-03i198708-198908

GRAY,GRAY,TRIM2#

main74320-20570-03i198708-198908

main74320-20570-04i198708-198908

main74320-20591-01i198710-198908

BLACK,TRIM2#

74348HOLDER, VISOR

main74348-12020-01i198811-198908

BLACK,TRIM2#

main74348-12020-03i198811-198908

LIGHT GRAY,TRIM2#

main74348-12020-04i198811-198908

LIGHT BLUE,TRIM8#

main74348-20020-01i198710-198811

BLACK,TRIM2#

main74348-20020-03i198708-198811

SHADOW GRAY,TRIM2#

main74348-20020-04i198708-198811

DEEP BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-10020-14i198708-198908

main74610-10020-33i198708-198908

main74610-14030-24i198708-198908

main74610-14030-33i198708-198908

74617APLUG, ASSIST GRIP

main74617-14010-10i198708-198908

SHADOW GRAY,TRIM2#

main74617-14010-34i198708-198908

DEEP BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-01i198708-198908

BLACK,TRIM2#

main74630-20010-04i198708-198908

DEEP BLUE,TRIM8#

main74630-20021-01i198708-198908

BLACK,TRIM2#

main74630-20021-01i198708-198908

main74630-20021-04i198708-198908

DEEP BLUE,TRIM8#

main74630-20021-04i198708-198908

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-01i198708-198908

BLACK,TRIM2#

main74640-20010-04i198708-198908

DEEP BLUE,TRIM8#

main74640-20021-01i198708-198908

BLACK,TRIM2#

main74640-20021-01i198708-198908

main74640-20021-04i198708-198908

DEEP BLUE,TRIM8#

main74640-20021-04i198708-198908

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

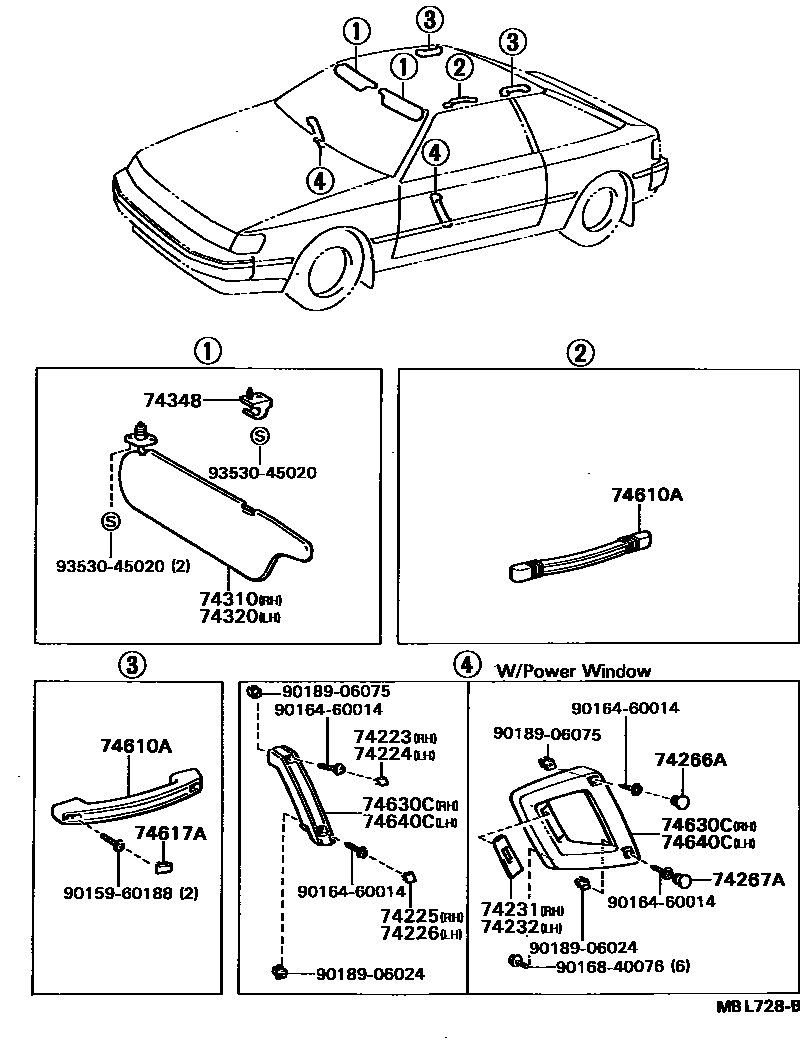

21 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CELICA

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CELICA. Key components include: CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, CAP, DOOR ARMREST, REAR RH, CAP, DOOR ARMREST, REAR LH, PANEL, FRONT ARMREST BASE, UPPER RH.
