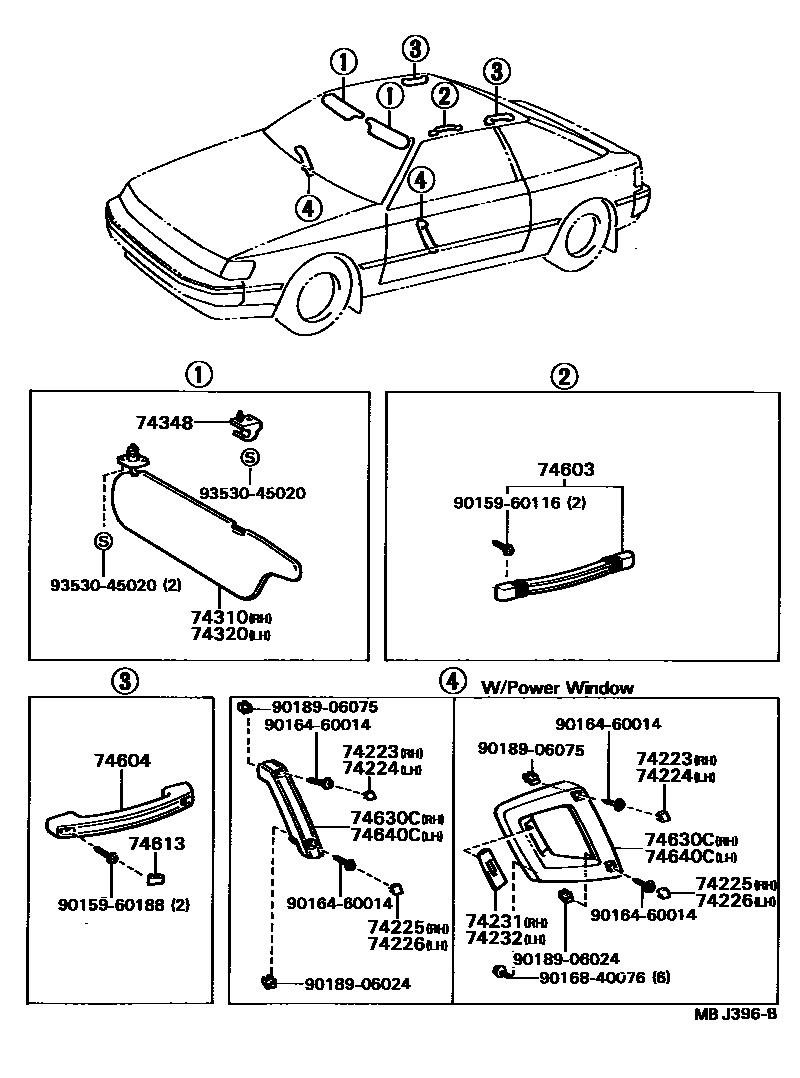

Toyota CELICA — ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74223-20030-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-20030-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74224-20030-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74225-20020-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74225-20020-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20140-03iAT160,ST16#..GT,GT4,SX198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74231-20140-04iAT160,ST160,162..GT,SX198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20140-03iAT160,ST16#..GT,GT4,SX198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74232-20140-04iAT160,ST160,162..GT,SX198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-20300-03iAT160,ST160,162..GT,ST,SV198508-198708

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

main74310-20300-04iAT160,ST160,162..GT,ST,SV198508-198708

W/O SUN ROOF,BLUE,DEEP BLUE,TRIM8#

main74310-20460-03iST160,165..GT4,SX198508-198708

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

main74310-20460-04iAT160,ST160,162..GT,ST,SX198609-198708

W/SUN ROOF,BLUE,DEEP BLUE,TRIM8#

main74310-20500-03iAT160,ST16#..GT,ST,SX198508-198609

W/SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

main74310-20500-04iAT160,ST16#..GT,ST,SX198508-198609

W/SUN ROOF,BLUE,DEEP BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-20380-03iAT160,ST160,162..GT,ST,SV198508-198708

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

sub74320-20400

main74320-20380-04iAT160,ST160,162..GT,ST,SV198508-198708

W/O SUN ROOF,BLUE,DEEP BLUE,TRIM8#

sub74320-20400

main74320-20430-03iST160,165..GT4,SX198508-198708

W/O SUN ROOF,GRAY,SHADOW GRAY,TRIM1#

main74320-20430-04iAT160,ST160,162..GT,ST,SX198508-198708

W/O SUN ROOF,GT-R PACKGE,BLUE,DEEP BLUE,TRIM8#

74348HOLDER, VISOR

main74348-20020-03×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74348-12020

main74348-20020-04×2iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-24iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74610-12050

main74610-14030-33iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74610-12050

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-10020-14×2iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

main74610-10020-33×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

74613PLUG, ASSIST GRIP

main74617-14010-10×4iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74617-14010-34×4iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-03iAT160,ST160,162..GT,ST,SV198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74630-20010-04iAT160,ST160,162..GT,ST,SV198508-198708

BLUE,DEEP BLUE,TRIM8#

main74630-20020-03iAT160,ST16#..GT,GT4,SX198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74630-20020-04iAT160,ST160,162..GT,SX198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-03iAT160,ST160,162..GT,ST,SV198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74640-20010-04iAT160,ST160,162..GT,ST,SV198508-198708

BLUE,DEEP BLUE,TRIM8#

main74640-20020-03iAT160,ST16#..GT,GT4,SX198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74640-20020-04iAT160,ST160,162..GT,SX198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

9015960116

main90159-60116

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

21 parts on this diagram · 1 diagram in section
