Toyota CELICA — ANTENNA

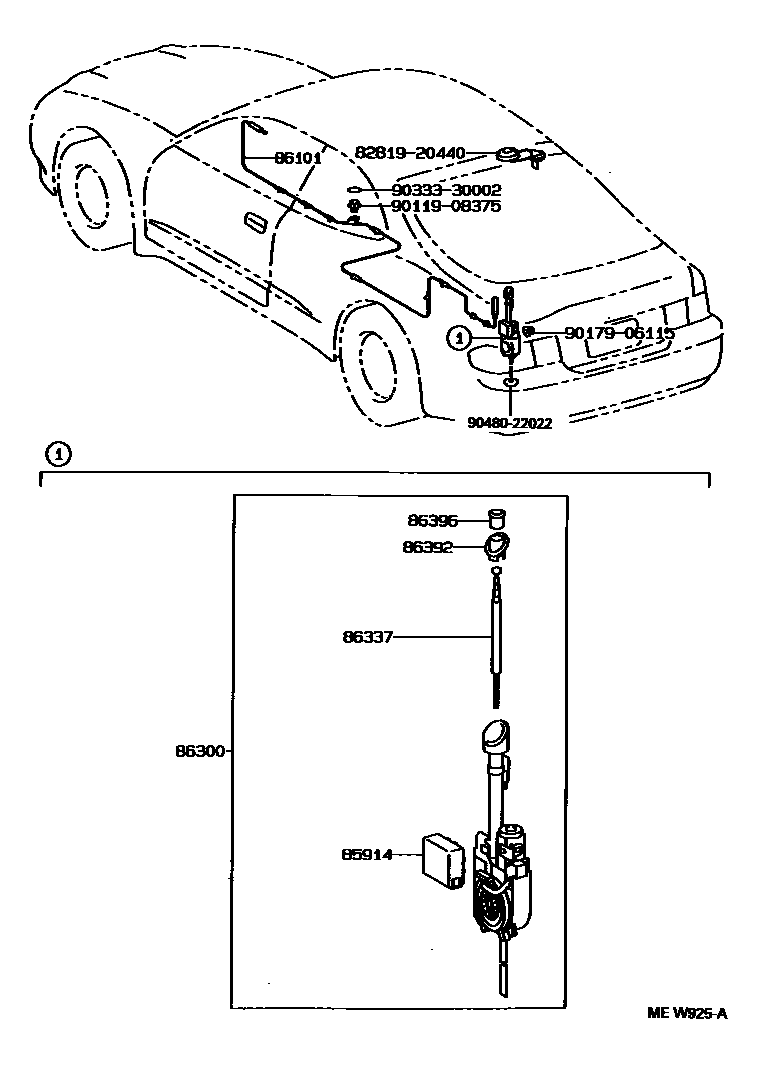

Parts diagram

85914RELAY, MOTOR ANTENNA CONTROL

main85914-33010i199309-199506

main85914-33020i199506

86101CORD SUB-ASSY, ANTENNA

main86101-20640i199309-199508

main86101-20641i199508

main86101-20650i199309-199508

main86101-20651i199508

main86101-20660i199309-199310

main86101-20661i199310

main86101-20670i199309-199310

main86101-20671i199310

main86101-20680i199408-199512

main86101-20681i199512

86300ANTENNA ASSY, W/HOLDER

main86300-2B200i199309-199506

main86300-2B201i199506

86337ROD & PIPE, SEALED W/CABLE

main86337-2B200i199309

86392ORNAMENT, ANTENNA

main86392-20190i199309-199611

main86392-20191i199611

86396NUT, ANTENNA

main86396-20030i199309

8281920440GROMMET, WIRING HARNESS

main82819-20440

9011908375

main90119-08375

9017906115

main90179-06115

9033330002

main90333-30002

9048022022

main90480-22022

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ROD & PIPE, SEALED W/CABLE, ORNAMENT, ANTENNA.
