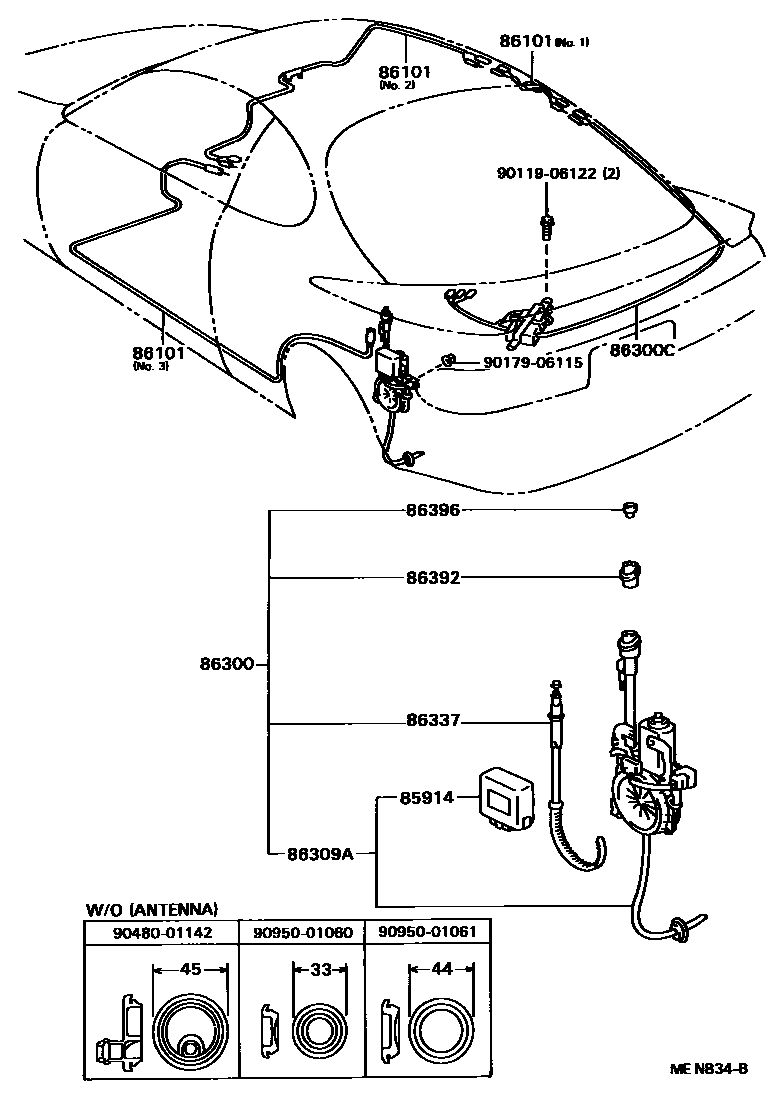

Toyota CELICA — ANTENNA
85914RELAY, MOTOR ANTENNA CONTROL
86101CORD SUB-ASSY, ANTENNA
86300ANTENNA ASSY, W/HOLDER
86300CANTENNA ASSY, AMPLIFIER, NO.2
86309APOLE SUB-ASSY, MOTOR ANTENNA
86337ROD & PIPE, SEALED W/CABLE
86396NUT, ANTENNA
9011906122
main90119-06122
9017906115
main90179-06115
9048001142
main90480-01142
9095001060
main90950-01060
9095001061
main90950-01061
13 parts on this diagram · 1 diagram in section
ANTENNA for Toyota CELICA
This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2, POLE SUB-ASSY, MOTOR ANTENNA.
