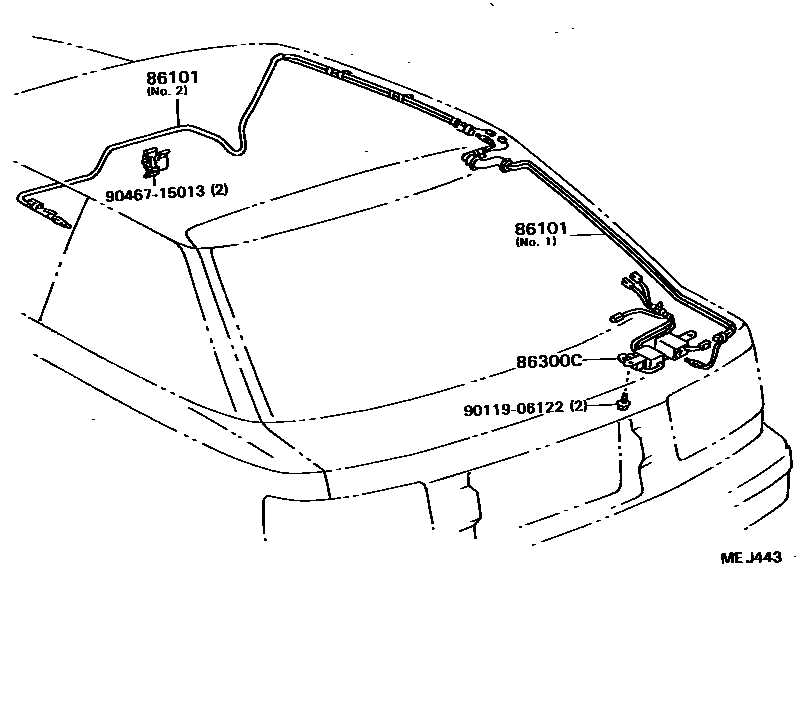

Toyota CELICA — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-20120i198708-198908

main86101-20130i198708-198908

main86101-20150i198710-198908

PLANT NO.=A41,A42

main86101-20200i198708-198908

main86101-20210i198710-198808

PLANT NO.=A51-A54

86300ANTENNA ASSY, W/HOLDER

main86300-20300i198710-198809

main86300-20301i198809-198908

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-20180i198708-198908

9011906122

main90119-06122

9046715013

main90467-15013

5 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 10 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2, POLE SUB-ASSY, MOTOR ANTENNA.
