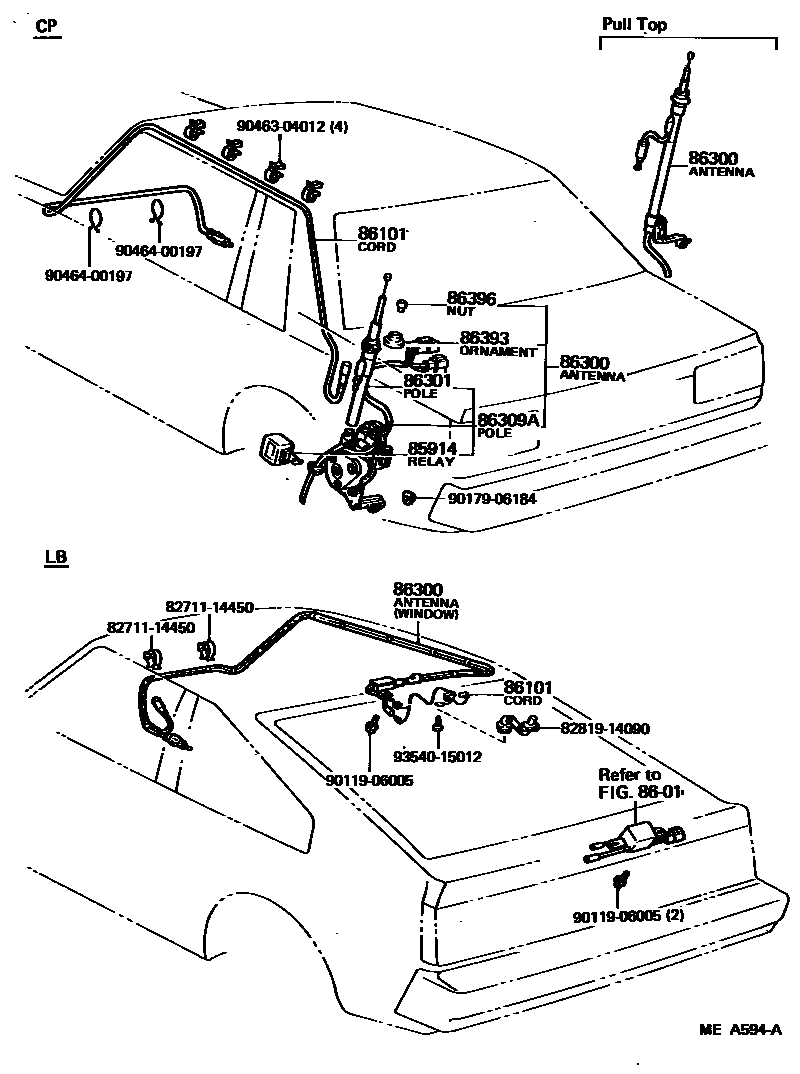

Toyota CELICA — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14010i198107-198306

W/MOTOR DRIVE ANTENNA

main85914-14020i198306-198507

W/MOTOR DRIVE ANTENNA

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86101CORD SUB-ASSY, ANTENNA

main86101-14270i198107-198512

main86101-14280i198107-198507

86300ANTENNA ASSY, W/HOLDER

main86300-14260i198107-198512

WINDOW ANTENNA

main86300-14280i198107-198507

PULL TOP ANTENNA

main86300-14320i198107-198502

MOTOR DRIVE ANTENNA,W/RELAY

main86300-14321i198502-198507

MOTOR DRIVE ANTENNA,W/RELAY

86301POLE SUB-ASSY, ANTENNA

main86301-14251i198107-198404

W/MOTOR DRIVE ANTENNA

main86353-14320i198407-198502

W/MOTOR DRIVE ANTENNA

main86353-14330i198404-198407

W/MOTOR DRIVE ANTENNA

main86353-32070i198502-198507

W/MOTOR DRIVE ANTENNA

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-14190i198107-198502

W/MOTOR DRIVE ANTENNA

main86309-14191i198502-198507

W/MOTOR DRIVE ANTENNA

86393ORNAMENT, ANTENNA

main86392-14050i198107-198502

main86392-14051i198502-198507

86396NUT, ANTENNA

main86396-14040i198107-198502

main86396-14041i198502-198507

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

8281914090GROMMET, WIRING HARNESS

main82819-14090

9011906005

main90119-06005

9017906184

main90179-06184

9046304012

main90463-04012

9046400197

main90464-00197

9354015012

main93540-15012

15 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CELICA

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, RADIO RECEIVER & AMPLIFIER & CONDENSER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA.
