Toyota CELICA — ACTIVE CONTROL

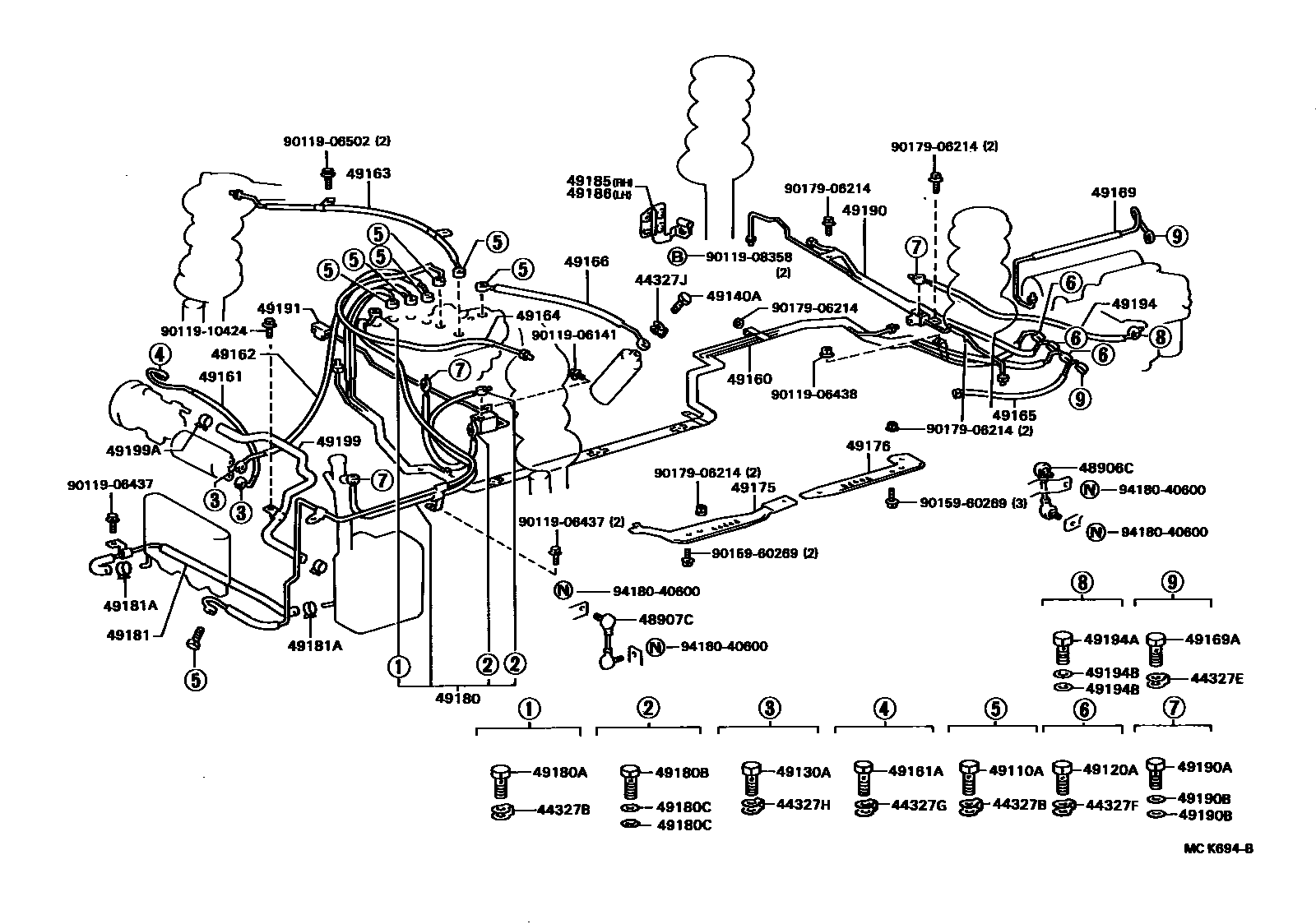

Parts diagram
44327BGASKET, PRESSURE PORT, FRONT SUSPENSION CONTROL VALVE HOSE
main44327-12010×7i199004-199108
44327EGASKET, REAR SUSPENSION CONTROL VALVE
main44327-12010×2i199004-199108
44327FGASKET, PRESSURE PORT, REAR SUSPENSION CONTROL
main44327-12010×3i199004-199108
44327GGASKET, PRESSURE PORT, SUSPENSION CONTROL PRESSURE HOSE
main44327-12010i199004-199108
44327HGASKET, SUSPENSION CONTROL PUMP ACCUMULATOR PRESSURE PORT
main44327-12010×2i199004-199108
44327JGASKET, FRONT SUSPENSION CONTROL ACCUMULATOR PRESSURE PORT
main44327-12010i199004-199108
48906CLINK, HEIGHT CONTROL SENSOR, REAR(FOR ACTIVE SUSPENSION)
main48906-20031i199004-199108
main48906-20041i199004-199108
48907CLINK, HEIGHT CONTROL SENSOR, FRONT(FOR ACTIVE SUSPENSION)
main48907-20010i199004-199108
main48907-20020i199004-199108
49110VALVE ASSY, FRONT SUSPENSION CONTROL
main49110-20010i199004-199108
49110AHOUSING, CONNECTOR MALE
main90401-16004×7i199004-199108
sub90401-16027
49120VALVE ASSY, REAR SUSPENSION CONTROL
main49120-20010i199004-199108
49120AHOUSING, CONNECTOR FEMALE
main90401-16004×3i199004-199108
sub90401-16027
49130ABOLT, UNION(FOR SUSPENSION CONTROL PUMP ACCUMULATOR)
main90401-16004×2i199004-199108
sub90401-16027
49140ABOLT, UNION(FOR SUSPENSION CONTROL ACCUMULATOR)
main90401-16004i199004-199108
sub90401-16027
49160HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.1
main49160-20021i199004-199108
49161HOSE, SUSPENSION CONTROL PRESSURE, NO.1
main49161-20011i199004-199108
49161ABOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)
main90401-16004i199004-199108
sub90401-16027
49162HOSE, SUSPENSION CONTROL PRESSURE, NO.2
main49162-20011i199004-199108
49163HOSE, SUSPENSION CONTROL PRESSURE, NO.3
main49163-20010i199004-199108
49164HOSE, SUSPENSION CONTROL PRESSURE, NO.4
main49164-20011i199004-199108
49165HOSE, SUSPENSION CONTROL PRESSURE, NO.5
main49165-20021i199004-199108
49166HOSE, SUSPENSION CONTROL PRESSURE, NO.6
main49166-20010i199004-199108
49169HOSE, SUSPENSION CONTROL PRESSURE, NO.9
main49169-20010i199004-199108
49169ABOLT, UNION, NO.1(FOR SUSPENSION CONTROL PRESSURE HOSE)
main90401-16004×2i199004-199108
sub90401-16027
49175PROTECTOR, SUSPENSION CONTROL HOSE, NO.1
main49175-20020i199004-199108
49176PROTECTOR, SUSPENSION CONTROL HOSE, NO.2
main49176-20020i199004-199108
49180HOSE ASSY, SUSPENSION CONTROL RETURN
main49180-20021i199004-199108
49180ABOLT, UNION, NO.1(FOR SUSPENSION CONTROL RETURN HOSE)
main90401-16004i199004-199108
sub90401-16027
49180BBOLT, UNION, NO.2(FOR SUSPENSION CONTROL RETURN HOSE)
main90401-10015×2i199004-199108
49180CGASKET(FOR SUSPENSION CONTROL RETURN HOSE)
main90430-10074×4i199004-199108
49181HOSE, SUSPENSION CONTROL RETURN
main49181-20020i199004-199108
49181ACLIP(FOR SUSPENSION CONTROL RETURN HOSE)
main90467-16008×2i199004-199108
sub90467-16019
49185BRACKET, SUSPENSION CONTROL HOSE, NO.1
main49185-20010i199004-199108
49186BRACKET, SUSPENSION CONTROL HOSE, NO.3
main49186-20011i199004-199108
49190HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.3
main49190-20011i199004-199108
49190ABOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)
main90401-10015×3i199004-199108
49190BGASKET(FOR SUSPENSION CONTROL PRESSURE HOSE)
main90430-10074×6i199004-199108
49191HOSE, SUSPENSION CONTROL DRAIN
main49191-20011i199004-199108
49194HOSE, SUSPENSION CONTROL DRAIN, NO.4
main49194-20020i199004-199108
49194ABOLT, UNION(FOR SUSPENSION CONTROL DRAIN HOSE)
main90401-10015i199004-199108
49194BGASKET(FOR SUSPENSION CONTROL DRAIN HOSE)
main90430-10074×2i199004-199108
49199HOSE, SUSPENSION CONTROL SUCTION
main49199-20010i199004-199108
49199ACLIP(FOR SUSPENSION CONTROL SUCTION HOSE)
main90467-21005×2i199004-199108
sub90467-21010
9011906141
main90119-06141
9011906437
main90119-06437
9011906438
main90119-06438
9011906502
main90119-06502
9011908358
main90119-08358
9011910424
main90119-10424
9015960269
main90159-60269
9017906214
main90179-06214
9418040600
main94180-40600

52 parts on this diagram · 6 diagrams in section
