Toyota CELICA — ACTIVE CONTROL SUSPENSION (ELECTRICAL PARTS)

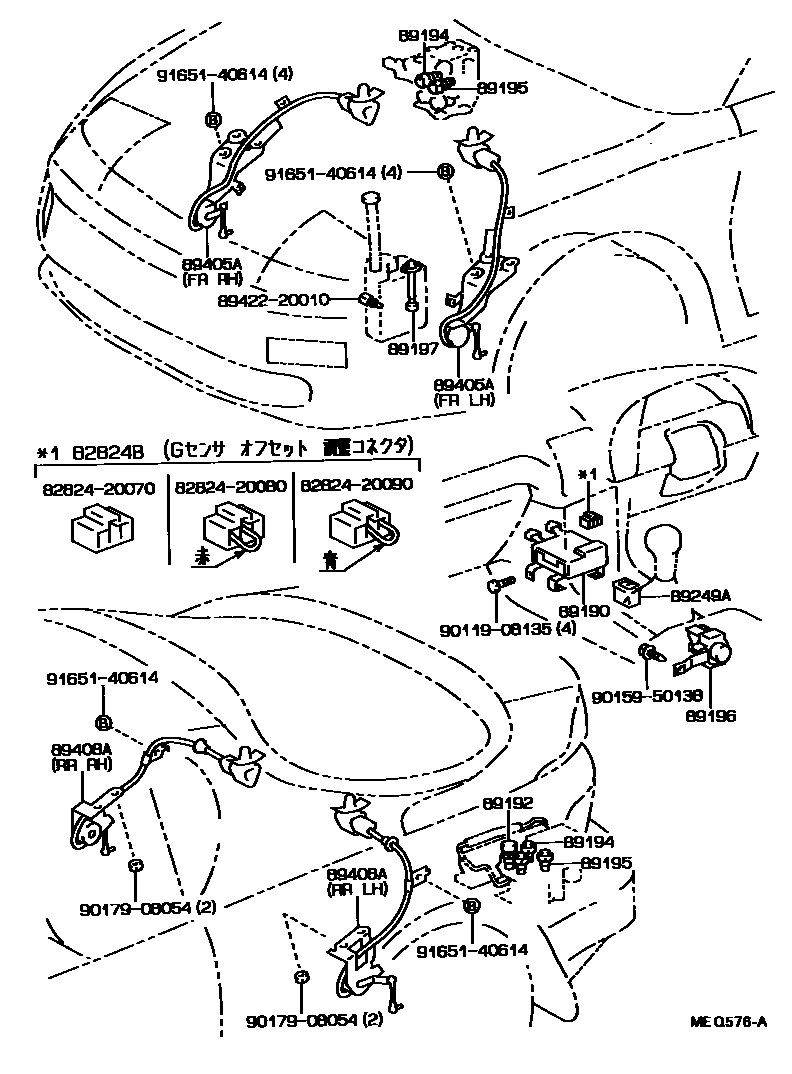

Parts diagram

82824BCONNECTOR, WIRING HARNESS

main82824-20070×2i199004-199108

main82824-20080×2i199004-199108

main82824-20090×2i199004-199108

89190COMPUTER ASSY, HYDROPNEUMATIC SUSPENSION

main89190-20010i199004-199007

main89190-20011i199007-199108

89192SENSOR, PRESSURE ACCUMULATOR

main89192-20010i199004-199108

89194SENSOR, PRESSURE ABSORBER, NO.1

main89194-20010i199004-199108

FR

main89194-20020i199004-199108

RR

89195SENSOR, PRESSURE ABSORBER, NO.2

main89195-20010i199004-199108

FR

main89195-20020i199004-199108

RR

89196SENSOR, OIL TEMPERATURE

main89196-20010i199004-199108

89197SENSOR, OIL LEVEL

main89197-20010i199004-199108

89249ASWITCH, ABSORBER CONTROL

main89249-20040i199004-199108

89405ASENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-20010i199004-199108

main89406-20010i199004-199108

89408ASENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-20010i199004-199108

main89408-20010i199004-199108

8282420070CONNECTOR, WIRING HARNESS

main82824-20070

8282420080CONNECTOR, WIRING HARNESS

main82824-20080

8282420090CONNECTOR, WIRING HARNESS

main82824-20090

8942220010SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010

9011908135

main90119-08135

9015950138

main90159-50138

9017908054

main90179-08054

9165140614

main91651-40614

18 parts on this diagram · 1 diagram in section

ACTIVE CONTROL SUSPENSION (ELECTRICAL PARTS) for Toyota CELICA

This section contains 18 genuine Toyota parts for the ACTIVE CONTROL SUSPENSION (ELECTRICAL PARTS) system of the Toyota CELICA. Key components include: CONNECTOR, WIRING HARNESS, COMPUTER ASSY, HYDROPNEUMATIC SUSPENSION, SENSOR, PRESSURE ACCUMULATOR, SENSOR, PRESSURE ABSORBER, NO.1, SENSOR, PRESSURE ABSORBER, NO.2.
