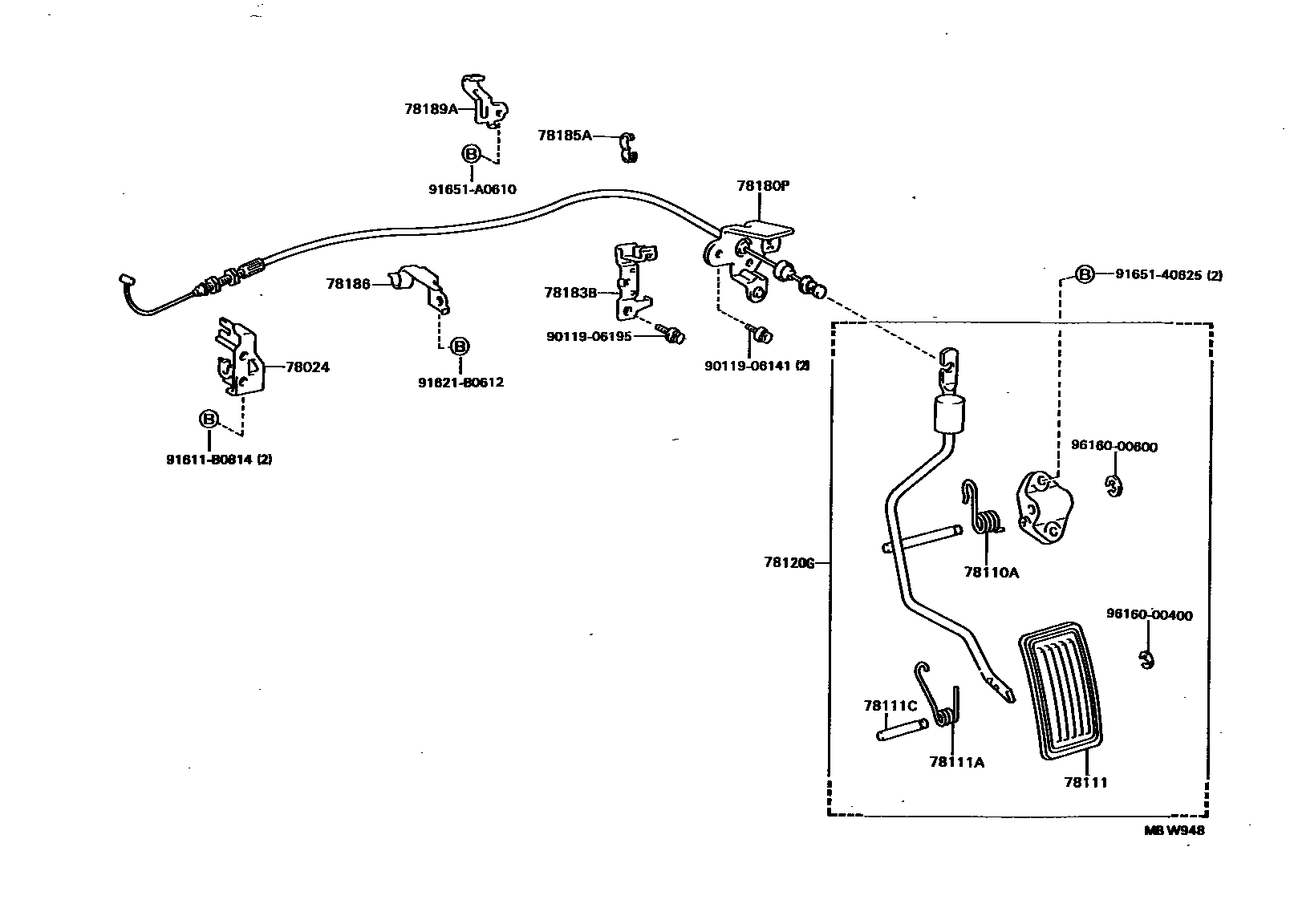

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20120iST182,183..ACT,CV,GTR198909-199309

main78024-20130iST182,183..SR,ZR198909-199008

main78024-32120iST182,183..SR,ZR199008-199309

main78024-88381iST185198910-199309

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST182,183..ATM198909-199309

main90508-26054iST18#..MTM198909-199309

78111PEDAL, ACCELERATOR

main78111-20030iST18#198909-199309

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST182,183..ATM198909-199309

main90508-18050iST18#..MTM198909-199309

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iST18#198909-199309

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20440iST182,183..MTM..(SR,ZR)198909-199309

main78120-20450iST182,183..ATM..(SR,ZR)198909-199309

main78120-20460iST18#..MTM..(ACT,CV,GT4,GT4A,GT4RC,GTR)198909-199309

main78120-20470iST182,183..ATM..(CV,GTR)198909-199309

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2B290iST182,183..SR,ZR198909-199008

main78180-2B500iST182,183..ACT,CV,GTR198909-199309

main78180-2B590iST185198910-199309

main78180-2B650iST182,183..SR,ZR199008-199309

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20130iST18#198909-199309

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20080iST182,183198909-199309

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-32040iST182,183..SR,ZR198909-199008

main78186-32060iST182,183..SR,ZR199008-199309

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-20110iST185199008-199309

main78189-20120iST182,183..ATM..(SR,ZR)198909-199008

sub78189-20140

9011906141

main90119-06141

9011906195

main90119-06195

91611B0814

main91611-B0814

91621B0612

main91621-B0612

9165140625

main91651-40625

91651A0610

main91651-A0610

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 3 diagrams in section
